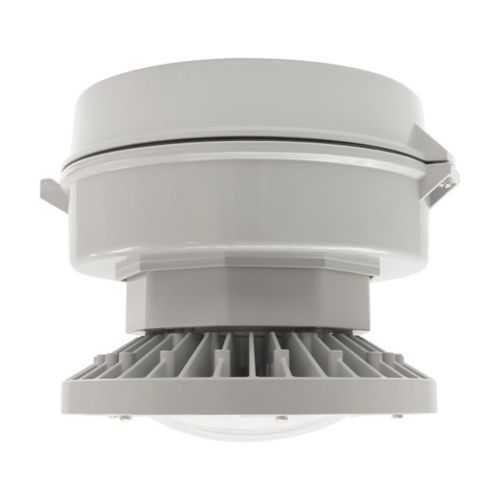

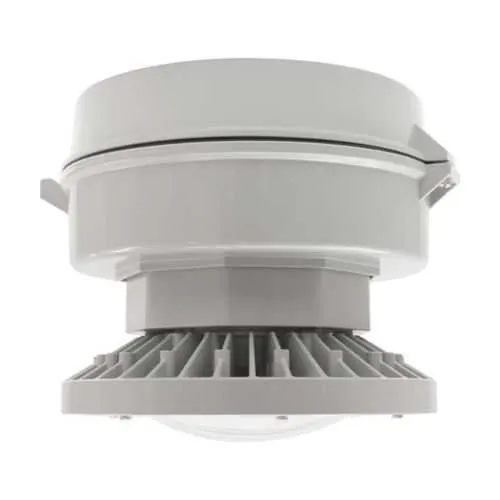

Eaton Crouse-Hinds PVMA7.5L/UNV1S903 LED Light - Type V
Part Number: PVMA7.5L/UNV1S903
Quick Summary
PVMA7.5L/UNV1S903 is an LED light fixture designed for rugged industrial spaces such as warehouses and manufacturing floors. In practice, facilities wrestle with energy waste, frequent maintenance, and inconsistent illumination from legacy systems. This Champ Pro unit targets those challenges with high efficiency, long life, and reliable performance under normal operating conditions. It complies with NEC/CEC/IEC standards and is supported by installation and certification literature to simplify procurement. By delivering bright, uniform light at a fraction of the power of traditional HID luminaires, it helps maintenance teams reduce downtime and owners lower total cost of ownership. The product supports common industrial needs while aligning with low bay lighting strategies and standard utility programs.
Product Information
Extended Description
PVMA7.5L/UNV1S903 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PVMA LED light fixture, Cool white, 175W MH, 50/60 Hz, Polycarbonate lens, 7500 lumens, 122 lm/W, Die cast aluminum, No mounting module, Type V optics, >0.90 PF, 64W
Product Name
Eaton Crouse-Hinds series Champ Pro PVMA LED light fixture
Catalog Number
PVMA7.5L/UNV1S903
UPC
662276826267
Product Length/Depth
10.18 in
Product Height
7.1 in
Product Width
10.18 in
Product Weight
13.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
Lumens
7500
Lumens per watt
75
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type V
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Die cast aluminum
Lens material
Polycarbonate
Wattage
64 W
Equivalent luminaire
175W MH
Power factor
> 0.90
Eaton Crouse-Hinds PVMA7.5L/UNV1S903 3D drawing
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series Champ Pro PVMA LED catalog page
Champ Pro PVMA Low Bay Industrial LED Light Fixtures Canadian certification
Champ Pro PVMA Low Bay Industrial LED Light Fixtures Canadian certification
IM0454 - Champ Pro PVMA LED
Champ Pro PVMA Low Bay Industrial LED
Champ Pro PVMA Low Bay Industrial LED
Feature: High lumen output of 7500 delivered by a 64 W LED array; Business Impact: Significant energy savings versus 175 W MH, reducing ongoing operating costs; Application: Ideal for warehouses and light industrial spaces requiring bright, uniform illumination. Feature: Excellent efficiency with 122 lm/W and a power factor > 0.90; Business Impact: Lower reactive power charges and improved electrical system efficiency, supporting utility rebates and code compliance; Application: Large facilities with variable loads using 120–277 VAC supply. Feature: Type V optical distribution; Business Impact: Superior light control for uniform coverage, reducing hotspots and glare; Application: Low bay and general area lighting in open-floor layouts. Feature: Die-cast aluminum housing and polycarbonate lens; Business Impact: Rugged housing resists impact and weathering in industrial environments, extending service life; Application: Harsh factory floors and maintenance corridors where debris and vibration are common. Feature: Wide voltage range 120–277 VAC at 50/60 Hz; Business Impact: Simplified stocking and installation across multinational facilities; Application: Global sites with mixed electrical standards. Feature: Mounting flexibility with No mounting module; Business Impact: Faster, simpler installation and retrofit projects, reducing labor time; Application: Retrofitting existing mounts or new builds with minimal hardware.
Get a Quick Quote for a Eaton Crouse-Hinds PVMA7.5L/UNV1S903
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PVMA7.5L/UNV1S903?
Enquire Now
FAQs
PVMA7.5L/UNV1S903 is designed for straightforward installation in low bay environments. With no mounting module required, it can retrofit existing fixtures or be integrated into standard ceiling mount plans. Ensure the 120–277 VAC supply is stable and that the Type V optic pattern is appropriate for your space to achieve uniform coverage.
The fixture operates on 120–277 VAC at 50/60 Hz, delivering 7500 lumens at 64 W with a high luminous efficacy of 122 lm/W. It maintains a power factor greater than 0.90, helping to minimize reactive power draw and support utility efficiency programs.
PVMA7.5L/UNV1S903 is classified for Ordinary/Non-Hazardous Locations per its area classification. For hazardous environments, a different luminaire specifically rated for those conditions would be required. Always verify local codes and site classifications when planning installations.
The unit adheres to NEC/CEC/IEC standards and there are certification reports and installation documentation available, including UL-related Canadian certification references. Comprehensive datasheets and installation sheets are provided to support compliance checks and safe commissioning.
Compared with legacy 175 W metal-halide equivalents, the PVMA7.5L/UNV1S903 delivers substantial energy savings and longer service life, reducing maintenance intervals and downtime. Its robust housing and long-life LEDs translate to lower total cost of ownership while delivering consistent, high-quality illumination across shifts.
