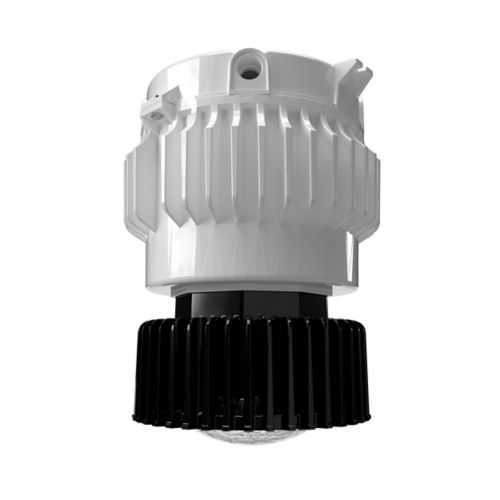

Eaton Crouse-Hinds PVML-11-UNV1-EM1 LED Light Fixture - IP66
Part Number: PVML-11-UNV1-EM1
Quick Summary
PVML-11-UNV1-EM1 LED light fixture with emergency back-up for industrial environments. It addresses downtime and safety concerns by delivering reliable illumination during power outages, helping facilities stay compliant and safe. With IP66 ingress protection and NEMA 4X enclosure, plus NEC/CEC certification for Ordinary/Non-Hazardous Locations, it is built for harsh production floors and outdoor installations. The long-life LEDs, 100-277 VAC input, 0-10 V dimming, and tempered glass lens deliver energy-efficient performance, while copper-free aluminum construction reduces maintenance costs. This fixture supports faster installation and scalable lighting strategies, delivering consistent illumination across rooms and outdoor spaces, driving down total cost of ownership.
Product Information
Extended Description
PVML-11-UNV1-EM1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ PVML LED light fixture with emergency back-up, Cool white, 0-10V dimming, No guard, Tempered glass lens, 11000 lumens, 122 lm/W, Copper-free aluminum, No mounting module, Type V, 100-277 Vac, 91W
Product Name
Eaton Crouse-Hinds series Champ PVML LED light fixture with emergency back-up
Catalog Number
PVML-11-UNV1-EM1
UPC
662276968684
Product Length/Depth
13.13 in
Product Height
15.68 in
Product Width
12.75 in
Product Weight
32.7 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
11000
Lumens per watt
75
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type V
Guard type
No guard
Voltage rating
100-277 Vac
Material
Cast copper-free aluminum
Lens material
Tempered glass
Special features
Emergency driver system
Dimming
0-10 V
Frequency rating
50/60 Hz
Power factor
> 0.90
Wattage
91 W
SP3D Design Package - Champ VMVL EM with Emergency Back-up Battery
Champ PVML LED with Emergency Back-up Battery flyer
Crouse-Hinds series Champ PVML LED with Emergency Back-up catalog page
IF 1918 - Champ PVML Emergency LED Luminaires
IF 1918 - Champ PVML Emergency LED Luminaires
Eaton Specification Sheet - PVML-11-UNV1-EM1
Bright, high-output design delivers 11000 lumens with an efficiency of 75 lm/W at 91 W, enabling bright, uniform coverage across large industrial areas while maintaining energy efficiency. Feature → Business Impact → Application: The 11000-lumen output supports clear visibility on the plant floor or outdoor yards, reducing operator errors and enhancing safety during high-traffic shifts. Application: ideal for general illumination in Ordinary/Non-Hazardous Locations where reliability matters most. The emergency driver system provides back-up lighting during power outages, reducing downtime and supporting OSHA-compliant egress in critical zones. Application: maintenance and compliance scenarios on production lines and service corridors. Wide voltage input from 100 to 277 VAC with 0-10 V dimming allows seamless integration with building controls and occupancy sensors, delivering energy savings and better lighting control. Application: retrofit projects and new builds seeking scalable automation-ready lighting. Copper-free cast aluminum housing with a tempered glass lens resists corrosion and impact, supporting long service life in harsh environments. Application: outdoor installations, wet locations, and areas exposed to dust and debris. No mounting module is required, simplifying field installation when you have compatible brackets or housings, and Type V optical distribution ensures predictable light spill. Application: fast commissioning and uniform coverage in large rooms. Overall, PVML-11-UNV1-EM1 combines durability, energy efficiency, and emergency functionality to deliver predictable TCO reductions for industrial operators.
Get a Quick Quote for a Eaton Crouse-Hinds PVML-11-UNV1-EM1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PVML-11-UNV1-EM1?
Enquire Now
FAQs
PVML-11-UNV1-EM1 supports 100-277 VAC with 0-10 V dimming and uses standard electrical connections. Note that the mounting method uses no mounting module, so plan to attach the fixture with your own compatible brackets or mounting hardware per installation instructions. Always power down the circuit before wiring and follow the installation sheets to ensure proper seal, IP66 integrity, and safe operation in Ordinary/Non-Hazardous Locations.
This unit is certified for Ordinary/Non-Hazardous Locations and features a rugged IP66/NEMA 4X enclosure, tempered glass lens, and copper-free aluminum housing. With 11000 lumens and Type V distribution, it delivers reliable, large-area illumination in commercial facilities, warehouses, corridors, and outdoor spaces without requiring hazardous-area compliance.
PVML-11-UNV1-EM1 aligns with NEC/CEC standards and carries a NEMA 4X rating with IP66 ingress protection, supporting harsh environments and regulatory compliance. These certifications help ensure safe installation, reduced maintenance risk, and compatibility with standard building codes for industrial lighting projects.
The fixture includes an emergency driver system that maintains illumination during power outages. While runtime specifications are not provided here, this feature is designed to provide critical lighting for safer egress and continued visibility in essential work zones during outages, enhancing safety and compliance on facility floors.
With 11000 lumens at 91 W and an efficiency of about 75 lm/W, PVML-11-UNV1-EM1 reduces energy consumption compared with older luminaires. The 100-277 V compatibility, 0-10 V dimming, IP66/NEMA 4X durability, and absence of a mounting module simplify installation and maintenance, delivering lower total cost of ownership and faster commissioning in industrial facilities.
