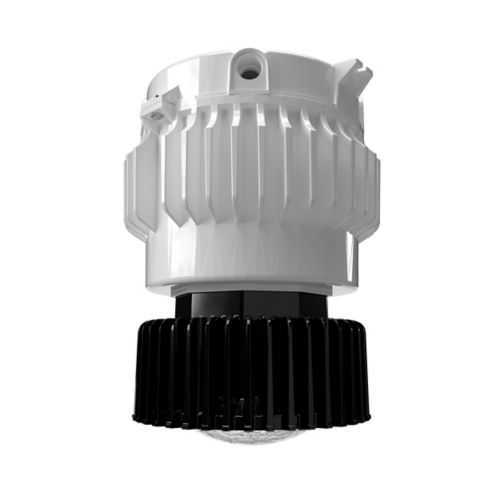

PVML-3-UNV1-EM1 LED Light by Eaton Crouse-Hinds - IP66/4X

Part Number: PVML-3-UNV1-EM1
PVML-3-UNV1-EM1
Manufacturer
Eaton Crouse-Hinds
Part number
PVML-3-UNV1-EM1
Category

Quick Summary

PVML-3-UNV1-EM1 LED light fixture delivers reliable emergency back-up illumination for industrial spaces. Facilities often face outages and costly retrofits, impacting productivity and safety. It carries NEC/CEC compliance and IP66 ingress protection with a robust NEMA 4X rating, ensuring rugged operation in harsh environments. Designed for universal 100-277 VAC input, 30 W consumption, and Type V optics, it supports 3000 lumens at 125 lm/W and 0-10 V dimming, delivering energy efficiency and easy integration into existing lighting strategies. The result is safer, more compliant facilities with reduced downtime and predictable maintenance costs, leveraging copper-free aluminum housing and tempered-glass lenses for durable performance in challenging environments.

Product Information

Extended Description

PVML-3-UNV1-EM1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ PVML LED light fixture with emergency back-up, Cool white, 0-10V dimming, No guard, Tempered glass lens, 3000 lumens, 125 lm/W, Copper-free aluminum, No mounting module, Type V, 100-277 Vac, 26W
Product Name
Eaton Crouse-Hinds series Champ PVML LED light fixture with emergency back-up
Catalog Number
PVML-3-UNV1-EM1
UPC
662276968646
Product Length/Depth
13.13 in
Product Height
15.68 in
Product Width
12.75 in
Product Weight
32.7 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
3000
Lumens per watt
125
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type V
Guard type
No guard
Voltage rating
100-277 Vac
Material
Cast copper-free aluminum
Lens material
Tempered glass
Special features
Emergency driver system
Dimming
0-10 V
Frequency rating
50/60 Hz
Power factor
> 0.90
Wattage
1 x 30W
SP3D Design Package - Champ VMVL EM with Emergency Back-up Battery Champ PVML LED with Emergency Back-up Battery flyer Crouse-Hinds series Champ PVML LED with Emergency Back-up catalog page IF 1920 - Champ VMVL and PVML Emergency LED Battery and Driver Replacement Kit IF 1920 - Champ VMVL and PVML Emergency LED Battery and Driver Replacement Kit Eaton Specification Sheet - PVML-3-UNV1-EM1
Feature: Emergency driver system → Business Impact → Application: The PVML-3-UNV1-EM1 integrates an emergency backup driver to sustain illumination during power loss, enabling safe egress and reducing downtime in production lines, warehouses, and critical process areas. This supports compliance with life-safety expectations and improves operations continuity in industrial facilities. Feature: High lumens with efficiency → Business Impact → Application: With 3000 lumens at 125 lm/W, the unit delivers bright, energy-efficient illumination that lowers operating costs and heat load while maintaining visibility on the shop floor. Suitable for general area lighting, rack aisles, and outdoor ingress points in non-hazardous locations. Feature: Robust enclosure and optics → Business Impact → Application: Copper-free cast aluminum housing combined with a tempered glass lens and IP66/NEMA 4X protection delivers durable performance in dusty, wet, and high‑moisture environments, reducing maintenance frequency for washdown areas, mechanical rooms, and substations. Feature: Flexible installation and controls → Business Impact → Application: No mounting module requirement and 100-277 VAC input enable rapid retrofits and straightforward integration with existing electrical infrastructure. 0-10 V dimming supports compatible lighting controls for occupancy-based energy savings in manufacturing cells, warehouses, and logistics hubs. Feature: Compliance and lifecycle → Business Impact → Application: NEC/CEC adherence and Type V distribution simplify regulatory compliance and spectral consistency across facilities, while the emergency back-up capability minimizes business interruption during outages, supporting long-term TCO reduction. Feature: Maintenance and serviceability → Business Impact → Application: Replacement and service options, including the PVML-compatible emergency driver kit, streamline maintenance programs and extend asset life in industrial plants, data centers, and utility environments. Keywords integrated: industrial LED emergency lighting, IP66 LED fixture, 0-10 V dimming, Type V distribution, NEMA 4X enclosure, copper-free aluminum, tempered glass lens, 100-277 VAC.

Get a Quick Quote for a Eaton Crouse-Hinds PVML-3-UNV1-EM1

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds PVML-3-UNV1-EM1? Enquire Now

FAQs

PVML-3-UNV1-EM1 features no mounting module, with a 13.13 in length, 15.68 in height, and 12.75 in width, weighing 32.7 lb. It accepts 100-277 VAC and provides 0-10 V dimming. For retrofit projects, plan for ceiling or wall mounting using compatible hardware, and ensure adequate support structure to handle the 32.7 lb weight. Maintain clear access to the tempered glass lens for cleaning.
Yes, PVML-3-UNV1-EM1 supports 0-10 V dimming to integrate with common lighting controls. Connect the dimming wires to the 0-10 V control circuit per standard practice, ensuring power is isolated during wiring. The unit operates on 100-277 VAC and delivers 3000 lumens at 30 W, enabling compatible control strategies for space occupancy and energy savings.
PVML-3-UNV1-EM1 is designed for ordinary/non-hazardous locations with IP66 protection and a NEMA 4X enclosure rating, making it suitable for dusty, wet, and harsh indoor environments commonly found in warehouses, manufacturing floors, and washdown areas. Its tempered glass lens and copper-free aluminum housing promote durable performance in challenging settings.
The PVML-3-UNV1-EM1 complies with NEC/CEC standards and features IP66 ingress protection along with a NEMA 4X rating. These certifications ensure regulatory alignment for industrial lighting installations, reliable performance in non-hazardous locations, and suitability for environments that demand rugged enclosure protection.
With 3000 lumens at 125 lm/W and emergency back-up, the PVML-3-UNV1-EM1 reduces energy costs and downtime during outages. The copper-free aluminum housing and tempered glass lens minimize corrosion and maintenance needs. Replacement kits and service options simplify lifecycle management, contributing to lower total cost of ownership in industrial facilities.
