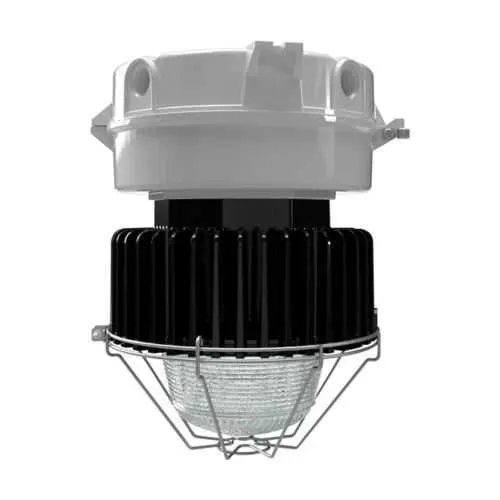

Eaton Crouse-Hinds PVML-7-G-UNV1-UPLT LED Light Fixture - IP66

Part Number: PVML-7-G-UNV1-UPLT
PVML-7-G-UNV1-UPLT
Manufacturer
Eaton Crouse-Hinds
Part number
PVML-7-G-UNV1-UPLT
Category

Quick Summary

PVML LED light fixture provides high‑efficiency illumination for industrial facilities and outdoor work areas. Operators and maintenance teams confront dusty, wet, and high‑vibration environments where lighting downtime drives costs and safety concerns. This Champ Pro luminaire meets NEC/CEC standards and delivers IP66 protection with a NEMA 4X enclosure for ordinary/non-hazardous locations, ensuring reliable operation. With 7000 lumens at 59 W, a wide 100-277 Vac / 127-250 Vdc input range, and a dimmable driver, it reduces energy use and maintenance while simplifying installation across varied plant layouts. The die-cast aluminum housing, heat and impact resistant glass, and uplight refractor lens further enhance durability and light distribution in tough industrial settings.

Product Information

Extended Description

PVML-7-G-UNV1-UPLT Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PVML LED light fixt, Cool white, 175W HID equiv, Wire grd, Heat and impact resistant glass lens, 7000 lm, 127 lm/W, Die cast alum, No mtg mod, Type V, Uplight refractor lens, 100-277 Vac, 127-250 Vdc, 59W
Product Name
Eaton Crouse-Hinds series Champ Pro PVML LED light fixture
Catalog Number
PVML-7-G-UNV1-UPLT
UPC
662276977990
Product Length/Depth
12 in
Product Height
18 in
Product Width
12 in
Product Weight
27 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
7000
Lumens per watt
127
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type V
Guard type
Wire
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
59 W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
175W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
Special features
Uplight refractor lens
SP3D Design Package - Champ Pro PVML Industrial LED Light Fixtures Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Champ Pro PVML Industrial LED Light Fixtures UL certification Champ Pro PVML Industrial LED Light Fixtures UL certification Champ Pro PVML Industrial LED Light Fixtures UL certification IF 1882 - Champ VMVL and PVML LED luminaires IF 1882 - Champ VMVL and PVML LED luminaires Eaton Specification Sheet - PVML-7-G-UNV1-UPLT Eaton Specification Sheet - PVML-7-G-UNV1-UPLT
Feature: 7000 lumens at 59 W with an efficiency of 127 lm/W → Business Impact: Significant energy savings and reduced operating costs compared to legacy HID systems. Application: Ideal for warehouses, assembly lines, and outdoor plant areas. Feature: IP66 ingress protection and NEMA 4X enclosure → Business Impact: Superior dust, water, and corrosion resistance, lowering maintenance cycles in harsh environments. Application: Outdoor enclosures, washdown zones, and non-hazardous interiors. Feature: Dimmable driver → Business Impact: Flexible control for process lighting and energy management, enabling scene setting and reduced light when occupancy is low. Application: Production floors with varying task lighting needs. Feature: Type V optical distribution with uplight refractor → Business Impact: Uniform, glare-controlled illumination that improves worker visibility and safety. Application: High-bay aisles and large open spaces. Feature: Die-cast aluminum housing and heat/impact resistant glass → Business Impact: Durable construction with excellent heat dissipation, extending luminaire life and reducing replacements. Application: Heavy-use areas with demanding ambient conditions. Feature: Wide voltage range 100-277 Vac / 127-250 Vdc → Business Impact: Simplified site installations and fewer transformers, cutting project timelines. Application: Multi-site deployments and new builds with diverse power availability.

Get a Quick Quote for a Eaton Crouse-Hinds PVML-7-G-UNV1-UPLT

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds PVML-7-G-UNV1-UPLT? Enquire Now

FAQs

PVML-7-G-UNV1-UPLT is designed for non-hazardous locations with a mounting approach that does not require a dedicated mounting module. Installers should plan for a weather-tight seal and proper conduit/wire access to the guard (wire) and integrated input terminals. The wide voltage range supports 100-277 Vac and 127-250 Vdc, reducing the need for multiple transformers on multi-site deployments. Ensure the IP66-rated sealant is intact at all times and verify that the uplight lens is clean to maintain the Type V light distribution.
The PVML-7-G-UNV1-UPLT delivers 7000 lumens at 59 W with a high efficacy of 127 lm/W, offering cool white light and a dimmable driver for flexible control. It features IP66 ingress protection and a NEMA 4X enclosure, enabling reliable operation in dusty, wet, and rugged environments. Operating across 50/60 Hz and a broad input range of 100-277 Vac or 127-250 Vdc makes it compatible with varied site supplies, while a heat and impact resistant glass lens preserves optical performance in demanding installations.
Yes. The luminaire aligns with NEC/CEC standards for general lighting installations and provides protective features appropriate for ordinary/non-hazardous locations. The IP66 rating and NEMA 4X enclosure further support compliance in harsh environments, while the die-cast aluminum housing and robust construction meet the demands of industrial facilities and outdoor areas. Always verify local code requirements and project specs, but this model is designed to ease compliance and commissioning.
Absolutely. The PVML-7-G-UNV1-UPLT includes a dimmable driver, enabling integration with compatible lighting controls and occupancy sensors. Its wide voltage tolerance supports seamless integration with building management systems and site-wide energy management programs. When planning, confirm driver compatibility with your control protocol (0-10 V or equivalent) and ensure dimming ranges suit the required workspaces to maximize energy savings and operator comfort.
With 7000 lumens at 59 W and long-life LED technology, the PVML-7-G-UNV1-UPLT reduces energy consumption and maintenance visits compared to HID equivalents like 175 W. The rugged IP66/NEMA 4X protection lowers ingress-related failures, extending service intervals in dusty or washdown environments. Across a multi-site rollout, the fixture’s wide voltage range and dimmable driver contribute to faster commissioning and meaningful ROI through energy savings and lower maintenance costs.
