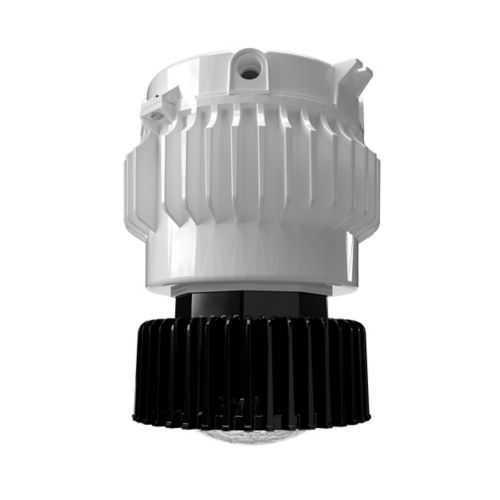

Eaton Crouse-Hinds PVML-7-UNV1-EM1 LED light fixture - IP66
Part Number: PVML-7-UNV1-EM1
Quick Summary
PVML-7-UNV1-EM1 delivers reliable LED illumination with emergency back-up for ordinary industrial spaces. When outages occur, you need consistent light to maintain safety and productivity; this fixture mitigates downtime by providing instant illumination during power loss. The design supports NEC/CEC compliance and rugged construction with IP66 and NEMA 4X ratings, ensuring performance in washdown environments. With 7000 lumens at 126 lm/W, 100-277 VAC operation, and 0-10V dimming, it couples reliability with energy efficiency, delivering long-term cost savings and simpler maintenance for facilities managers and maintenance teams.
Product Information
Extended Description
PVML-7-UNV1-EM1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ PVML LED light fixture with emergency back-up, Cool white, 0-10V dimming, No guard, Tempered glass lens, 7000 lumens, 126 lm/W, Copper-free aluminum, No mounting module, Type V, 100-277 Vac, 59W
Product Name
Eaton Crouse-Hinds series Champ PVML LED light fixture with emergency back-up
Catalog Number
PVML-7-UNV1-EM1
UPC
662276968660
Product Length/Depth
13.13 in
Product Height
15.68 in
Product Width
12.75 in
Product Weight
32.7 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
7000
Lumens per watt
126
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type V
Guard type
No guard
Voltage rating
100-277 Vac
Material
Cast copper-free aluminum
Lens material
Tempered glass
Special features
Emergency driver system
Dimming
0-10 V
Frequency rating
50/60 Hz
Power factor
> 0.90
Wattage
59 W
SP3D Design Package - Champ VMVL EM with Emergency Back-up Battery
Champ PVML LED with Emergency Back-up Battery flyer
Crouse-Hinds series Champ PVML LED with Emergency Back-up catalog page
IF 1920 - Champ VMVL and PVML Emergency LED Battery and Driver Replacement Kit
IF 1920 - Champ VMVL and PVML Emergency LED Battery and Driver Replacement Kit
Eaton Specification Sheet - PVML-7-UNV1-EM1
Feature: Emergency driver system provides back-up illumination during power outages. Business Impact: Ensures safety-critical areas remain lit, reducing incident risk and downtime; Application: Plants, warehouses, and service bays where uninterrupted lighting is essential. The PVML-7-UNV1-EM1 combines this with 7000 lumens and 126 lm/W efficiency, delivering robust visibility and lower energy costs per square foot. Feature: IP66 and NEMA 4X rated enclosure protects against dust, water, and corrosive washdowns. Business Impact: Extends fixture life in harsh environments, lowering replacement cycles and maintenance labor; Application: Outdoor access roads, loading docks, and process areas needing durable lighting. Feature: Type V optical distribution with tempered glass lens and copper-free aluminum housing. Business Impact: Optimized light spread for high-contrast tasks and corrosion resistance, reducing glare and improving worker accuracy; Application: Large-area illumination with reliable performance. Feature: 0-10V dimming and wide voltage range 100-277 VAC. Business Impact: Flexible integration with controls and reduced energy use through daylighting or occupancy strategies; Application: Industrial sites with centralized control systems. Feature: No mounting module required and compact form factor. Business Impact: Faster installation, fewer components, and lower total installed cost; Application: Retrofit projects and new builds where time-to-light matters.
Get a Quick Quote for a Eaton Crouse-Hinds PVML-7-UNV1-EM1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PVML-7-UNV1-EM1?
Enquire Now
FAQs
PVML-7-UNV1-EM1 is designed for straightforward installation with no mounting module required. It supports a 100–277 VAC supply and 0–10V dimming control. For retrofit projects, verify existing ceiling or wall mounting allowances align with the fixture’s 13.13 in length, 15.68 in height, and 12.75 in width, ensuring clearance for the tempered glass lens and the copper-free aluminum housing.
The unit delivers 7000 lumens at 126 lumens per watt, consuming 59 W. It operates across a 100–277 VAC range, with a power factor greater than 0.90. Dimming is 0–10 V, enabling seamless integration with control systems and occupancy strategies while maintaining consistent light levels for mission-critical tasks.
PVML-7-UNV1-EM1 is rated for Ordinary/Non-Hazardous Locations. It features IP66 and NEMA 4X protections, making it well-suited for challenging environments, washdowns, and external configurations, but it is not certified for hazardous or explosion-prone areas.
The fixture is designed to meet NEC/CEC standards, with NEMA 4X and IP66 ratings for rugged protection. These certifications support compliance in non-hazardous industrial settings, especially where washdowns or harsh conditions are common, and align with reliability requirements for maintenance and safety programs.
The integrated emergency driver system ensures illumination during power interruptions, reducing downtime and supporting safe egress. This leads to improved safety metrics, lower incident risk, and potential energy savings from efficient operation. Over the fixture’s life, these factors translate to lower maintenance labor and a faster return on investment in reliability-focused facilities.
