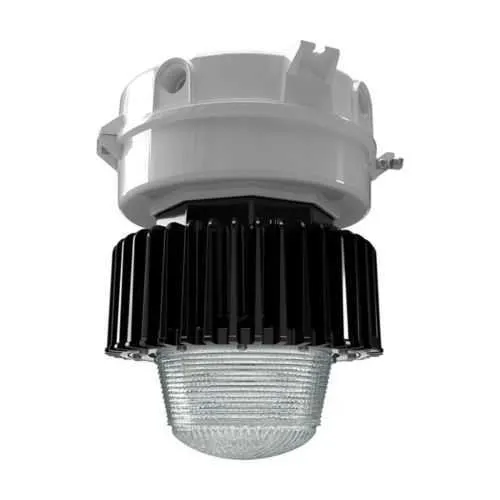

Eaton Crouse-Hinds PVML-7-UNV1-UPLT LED Light Fixture - IP66

Part Number: PVML-7-UNV1-UPLT
PVML-7-UNV1-UPLT
Manufacturer
Eaton Crouse-Hinds
Part number
PVML-7-UNV1-UPLT
Category

Quick Summary

PVML LED light fixture from Eaton Crouse-Hinds provides high-efficiency illumination for industrial facilities. In harsh environments, aging luminaires struggle with moisture, dust, and vibration, leading to unexpected downtime and higher maintenance costs. This Champ Pro unit ships with IP66 ingress protection and a NEMA 4X enclosure, meeting NEC/CEC standards for Ordinary/Non-Hazardous locations. With a 100–277 Vac and 127–250 Vdc range and a dimmable driver, it delivers reliable, controllable light while reducing energy use. The cool-white output at 7000 lumens and 127 lm/W supports productive workflows on warehouses, manufacturing lines, and outdoor setups, while the die-cast aluminum housing and heat-resistant glass lens stand up to demanding industrial conditions. These features translate to longer service intervals and lower total cost of ownership.

Product Information

Extended Description

PVML-7-UNV1-UPLT Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PVML LED light fixture, Cool white, 175W HID equiv, No grd, Heat and impact resist glass lens, 7000 lm, 127 lm/W, Die cast alum, No mtg mod, Type V, Uplight refractor lens, 100-277 Vac, 127-250 Vdc, 59W
Product Name
Eaton Crouse-Hinds series Champ Pro PVML LED light fixture
Catalog Number
PVML-7-UNV1-UPLT
UPC
662276977907
Product Length/Depth
12 in
Product Height
16 in
Product Width
12 in
Product Weight
26 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
7000
Lumens per watt
127
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type V
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
59 W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
175W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
Special features
Uplight refractor lens
SP3D Design Package - Champ Pro PVML Industrial LED Light Fixtures Crouse-Hinds series Champ Pro PVML LED Luminaires - 3,000 to 13,000 lumens brochure Crouse-Hinds series Champ Pro PVML LED Luminaires - 3,000 to 13,000 lumens brochure Crouse-Hinds series Champ Pro PVML LED Luminaires - 3,000 to 13,000 lumens brochure Crouse-Hinds series Champ Pro PVML LED Luminaires - 3,000 to 13,000 lumens brochure Crouse-Hinds series Champ Pro PVML LED Luminaires - 3,000 to 13,000 lumens brochure EC Declaration of Conformity - Crouse-Hinds series Champ Pro PVML LED Luminaires EC Declaration of Conformity - Crouse-Hinds series Champ Pro PVML LED Luminaires EC Declaration of Conformity - Crouse-Hinds series Champ Pro PVML LED Luminaires IF 1882 - Champ VMVL and PVML LED luminaires IF 1882 - Champ VMVL and PVML LED luminaires Eaton Specification Sheet - PVML-7-UNV1-UPLT Eaton Specification Sheet - PVML-7-UNV1-UPLT
High-output LED with 7000 lumens at 59 W and 127 lm/W delivers premium task lighting while conserving energy. Business impact: lower fixture count and reduced electrical load translate to faster ROI and smaller wiring demands. Application: large warehouses and manufacturing bays where uniform illumination matters. Rugged IP66 and NEMA 4X enclosure protects against dust, water jets, and mechanical wear. Business impact: improved uptime and lower replacement costs in damp or dirty environments. Application: open areas, wash-down zones, and outdoor facilities. Type V optical distribution with uplight refractor lens enhances ceiling illumination and reduces glare. Business impact: better light uniformity and worker comfort, supporting precise assembly and quality checks. Application: high-bay and open-ceiling spaces. Dimmable driver with PF > 0.90 enables precise control and energy savings. Business impact: compatible with lighting controls and reduced operating costs. Application: facilities pursuing LEAN energy management. Wide voltage range 100-277 Vac and 127-250 Vdc ensures cross-site compatibility and easy retrofits. Business impact: simplified procurement and maintenance across multiple sites. Application: multi-site industrial networks. Die-cast aluminum housing and heat- and impact-resistant glass lens deliver rugged durability. Business impact: extended life and lower maintenance cycles. Application: harsh environments, production lines, and outdoor installations.

Get a Quick Quote for a Eaton Crouse-Hinds PVML-7-UNV1-UPLT

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds PVML-7-UNV1-UPLT? Enquire Now

FAQs

PVML-7-UNV1-UPLT ships without a mounting module, so installation requires a compatible bracket or enclosure mounting method. The fixture adds 12 in by 12 in footprint and weighs 26 lb, so plan for secure mounting and appropriate hardware. Ensure mounting location supports Type V distribution and provides access for wiring within the 100-277 Vac or 127-250 Vdc range.
This luminaire supports a wide input range of 100-277 Vac and 127-250 Vdc with a 50/60 Hz frequency rating. It consumes 59 W and delivers approximately 7000 lumens with a power factor greater than 0.90. The dimmable driver enables control via compatible lighting controls to optimize energy use and adapt to task lighting needs.
Yes. The PVML-7-UNV1-UPLT is rated IP66 and housed in a NEMA 4X enclosure, making it appropriate for moisture, dust, and rugged industrial settings. It is certified for Ordinary/Non-Hazardous Locations under NEC/CEC standards, supporting reliable operation in warehouses, open plants, and non-hazardous outdoor areas.
As a LED luminaire with a durable die-cast aluminum housing and heat- and impact-resistant glass, PVML-7-UNV1-UPLT reduces maintenance frequency compared with HID systems. The long-life construct minimizes lamp replacements and downtime, while the robust sealing mitigates environmental wear, extending service intervals and lowering total cost of ownership.
With 7000 lumens at 59 W and a high efficacy of 127 lm/W, this fixture reduces energy consumption versus equivalent HID luminaires. The dimmable driver and broad voltage range enable precise control and easier retrofits across sites, delivering lower ongoing energy costs and improved lighting quality for productivity-focused environments.
