PVML-9-2B-UNV1-S831-S891

Part Number: PVML-9-2B-UNV1-S831-S891
PVML-9-2B-UNV1-S831-S891
Manufacturer
Eaton Crouse-Hinds
Part number
PVML-9-2B-UNV1-S831-S891
Category

Product Information

Extended Description

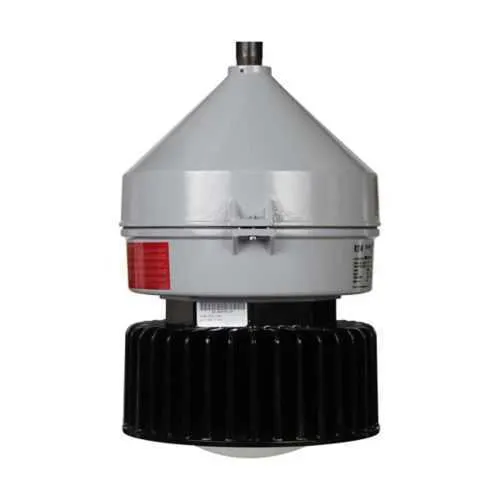

PVML-9-2B-UNV1-S831-S891 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PVML LED fixture, Cool white, 250W HID equiv, No guard, Diffused glass lens, 9000 lumens, 126 lm/W, Die cast alum, Cone pendant mount, Type V, Safety cable, 3/4" trade size, 100-277 Vac, 127-250 Vdc, 76W
Product Name
Eaton Crouse-Hinds series Champ Pro PVML LED light fixture
Catalog Number
PVML-9-2B-UNV1-S831-S891
UPC
662276894365
Product Length/Depth
11.62 in
Product Height
15.22 in
Product Width
11.62 in
Product Weight
23.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
9000
Lumens per watt
126
Color temperature
Cool white
Mounting Method
Cone pendant
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Type V
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
76W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
250W HID
Material
Die cast aluminum
Lens material
Diffused Glass
Special features
Safety cable
