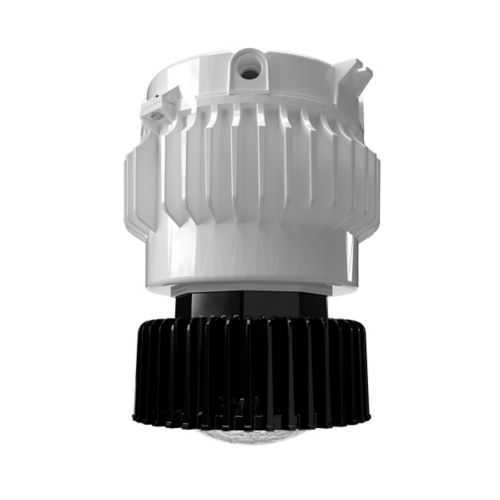

Eaton Crouse-Hinds PVML-9-UNV1-EM1 LED Light - IP66/NEMA 4X
Part Number: PVML-9-UNV1-EM1
Quick Summary
PVML-9-UNV1-EM1 LED light fixture with emergency back-up is designed to illuminate industrial spaces while ensuring illumination remains during power outages. This solution addresses the common pain point of sporadic or unavailable exit and task lighting in harsh environments. It delivers IP66 protection, NEMA 4X enclosure, and NEC/CEC compliance for reliable operation in non-hazardous locations. With 9000 lumens at 126 lm/W and a 100–277 VAC range, it combines brightness with energy efficiency. The integrated emergency driver, 0-10 V dimming, tempered glass lens, and copper-free aluminum housing support uptime, safety, and a lower total cost of ownership for modern facilities.
Product Information
Extended Description
PVML-9-UNV1-EM1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ PVML LED light fixture with emergency back-up, Cool white, 0-10V dimming, No guard, Tempered glass lens, 9000 lumens, 126 lm/W, Copper-free aluminum, No mounting module, Type V, 100-277 Vac, 73W
Product Name
Eaton Crouse-Hinds series Champ PVML LED light fixture with emergency back-up
Catalog Number
PVML-9-UNV1-EM1
UPC
662276968677
Product Length/Depth
13.13 in
Product Height
15.68 in
Product Width
12.75 in
Product Weight
32.7 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
9000
Lumens per watt
126
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type V
Guard type
No guard
Voltage rating
100-277 Vac
Material
Cast copper-free aluminum
Lens material
Tempered glass
Special features
Emergency driver system
Dimming
0-10 V
Frequency rating
50/60 Hz
Power factor
> 0.90
Wattage
73 W
SP3D Design Package - Champ VMVL EM with Emergency Back-up Battery
Champ PVML LED with Emergency Back-up Battery flyer
Crouse-Hinds series Champ PVML LED with Emergency Back-up catalog page
IF 1918 - Champ PVML Emergency LED Luminaires
IF 1918 - Champ PVML Emergency LED Luminaires
Eaton Specification Sheet - PVML-9-UNV1-EM1
Feature: High brightness with efficient performance → Business impact → Application: The PVML-9-UNV1-EM1 delivers 9000 lumens at 126 lm/W from a 73 W package, enabling strong task illumination while reducing energy use. This translates to lower operating costs for warehouses and manufacturing floors and improved worker productivity with clearer visibility for critical tasks. Use in ordinary/non-hazardous locations where reliable lighting is essential. Feature: Rugged, weatherproof enclosure → Business impact → Application: IP66 and NEMA 4X protection protect against dust, water, and corrosion in demanding environments, reducing maintenance frequency and extending service life on loading docks and production areas. Feature: Flexible power and control → Business impact → Application: 100–277 VAC universal input and 0–10 V dimming simplify integration with existing controls and power infrastructure, delivering consistent light levels across varied shift schedules and reducing wiring and installation complexity. Feature: Emergency back-up system → Business impact → Application: Built-in emergency driver ensures illumination during mains loss, improving safety compliance and uptime in critical zones such as aisles, egress routes, and work cells. Feature: Durable materials and optics → Business impact → Application: Copper-free aluminum housing and tempered glass lens resist corrosion and impact while Type V distribution provides predictable light distribution for large-area coverage. Feature: Installation simplicity → Business impact → Application: No mounting module requirement streamlines installation in retrofit or new-build projects, lowering labor time and enabling faster project completion under tight schedules.
Get a Quick Quote for a Eaton Crouse-Hinds PVML-9-UNV1-EM1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PVML-9-UNV1-EM1?
Enquire Now
FAQs
Yes. PVML-9-UNV1-EM1 is designed for the Champ PVML family and does not require a separate mounting module. For retrofit projects, verify footprint and dimensions: 13.13 inches long, 12.75 inches wide, and 15.68 inches high with a weight of 32.7 lb. Its 0‑10 V dimming and 100‑277 VAC input simplify integration with current control systems.
The fixture delivers 9000 lumens at 126 lm/W with a 73 W electrical draw. It operates on 50/60 Hz with a power factor greater than 0.90, providing bright, efficient illumination suitable for large industrial spaces while maintaining energy savings.
Designed for Ordinary/Non-Hazardous Locations, PVML-9-UNV1-EM1 is ideal for warehouses, manufacturing floors, and general industrial areas. It features Type V optical distribution for wide coverage, IP66 ingress protection, and NEMA 4X enclosure to withstand harsh environments and provide reliable lighting across broad work zones.
This luminaire adheres to NEC/CEC standards and carries NEMA 4X and IP66 ratings for rugged protection. It is certified for ordinary/non-hazardous locations and includes an emergency driver for backup lighting during outages, supporting safety and regulatory compliance across industrial facilities.
The integrated emergency driver contributes to uptime during mains loss, reducing downtime costs and improving safety. The long-life copper-free aluminum construction and tempered glass lens minimize maintenance needs, while the high-efficiency LED design lowers energy spend, delivering a favorable total cost of ownership over the fixture’s life cycle.
