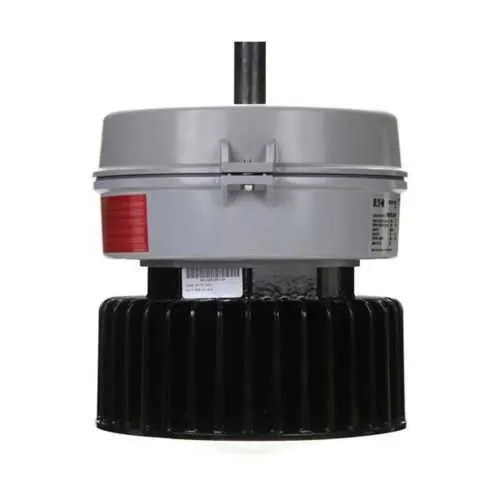

Eaton Crouse-Hinds PVML-9-W-3A-R3-UNV1 - IP66 LED Fixture

Part Number: PVML-9-W-3A-R3-UNV1
PVML-9-W-3A-R3-UNV1
Manufacturer
Eaton Crouse-Hinds
Part number
PVML-9-W-3A-R3-UNV1
Category

Quick Summary

PVML LED fixture from Eaton Crouse-Hinds delivers high-output, energy-efficient lighting for industrial facilities and outdoor areas. This solution addresses the challenge of replacing HID systems with reliable, long-life LEDs in demanding environments. The unit carries IP66 protection, a NEMA 4X enclosure, and Type III optical distribution to guard against dust, water ingress, and impact while delivering precise illumination. With a warm white output of 9000 lumens at 126 lm/W and a dimmable driver, it supports flexible control strategies and code compliance. Ideal for manufacturing floors, outdoor yards, and ordinary/non-hazardous locations, it aligns with NEC/CEC/IEC standards while reducing maintenance and total cost of ownership. The PVML series also complements downstream controls and energy-management initiatives.

Product Information

Extended Description

PVML-9-W-3A-R3-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PVML LED fixture, Warm white, 250W HID equivalent, No guard, Glass lens, 9000 lumens, 126 lm/W, Die cast aluminum, Pendant mount, Type III, 1" trade size, 100-277 Vac, 127-250 Vdc, 76W
Product Name
Eaton Crouse-Hinds series Champ Pro PVML LED light fixture
Catalog Number
PVML-9-W-3A-R3-UNV1
UPC
662276919709
Product Length/Depth
11.62 in
Product Height
11 in
Product Width
11.62 in
Product Weight
20.45 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
9000
Lumens per watt
126
Color temperature
Warm white
Mounting Method
Pendant
Trade size
1"
Optical distribution
Type III
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
76W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
250W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ Pro PVML Industrial LED Light Fixtures Crouse-Hinds series industrial LED lighting solutions Crouse-Hinds series industrial LED lighting solutions Crouse-Hinds series industrial LED lighting solutions Crouse-Hinds series industrial LED lighting solutions Crouse-Hinds series Champ Pro PVML LED luminaires - 3,000 to 13,000 lumens catalog page Champ Pro PVML Industrial LED Light Fixtures Canadian certification Champ Pro PVML Industrial LED Light Fixtures Canadian certification Champ Pro PVML Industrial LED Light Fixtures Canadian certification IF 1882 - Champ VMVL and PVML LED luminaires IF 1882 - Champ VMVL and PVML LED luminaires Champ Pro PVM Industrial LED Champ Pro PVM Industrial LED
High-lumen output and efficiency: PVML-9-W-3A-R3-UNV1 delivers 9000 lumens at 126 lm/W with a 76W rating, providing an effective HID replacement for 250W systems. This reduces energy consumption and maintenance cycles while maintaining brightness in busy facilities, improving safety and productivity in manufacturing floors and warehouses. Rugged protection for harsh sites: IP66 and NEMA 4X protection shield the luminaire from dust, water, and impact. Type III optical distribution concentrates light where it is needed, minimizing spill and glare, which is essential for yards, docks, and washdown areas. Flexible installation and control: Pendant mounting with a 1" trade size enables quick integration into existing support structures. A dimmable driver and power factor above 0.90 support modern lighting controls and energy-management strategies across 100-277 Vac or 127-250 Vdc systems. Durable construction for long life: Die-cast aluminum housing and heat- and impact-resistant glass lens withstand industrial environments, reducing maintenance costs and downtime. This design aligns with NEC/CEC/IEC standards for ordinary/non-hazardous locations while delivering reliable, maintenance-friendly illumination.

Get a Quick Quote for a Eaton Crouse-Hinds PVML-9-W-3A-R3-UNV1

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds PVML-9-W-3A-R3-UNV1? Enquire Now

FAQs

PVML-9-W-3A-R3-UNV1 is designed for pendant mounting with a 1" trade size. It fits standard overhead supports and electrical junctions common in industrial facilities. When installing, ensure proper strain relief and secure mounting to comply with NEC/CEC/IEC requirements, and verify that the driver input matches 100-277 Vac or 127-250 Vdc for reliable operation.
The luminaire delivers 9000 lumens at 126 lm/W with a 76W draw, operates on 50/60 Hz, and supports 100-277 Vac or 127-250 Vdc. It features a dimmable driver and a power factor greater than 0.90. Optical distribution is Type III, and the unit uses a glass lens with a die-cast aluminum housing, providing robust performance in industrial settings.
Yes. PVML-9-W-3A-R3-UNV1 carries IP66 ingress protection and a NEMA 4X enclosure, making it ideal for outdoor yards, loading docks, and washdown areas. Classified for Ordinary/Non-Hazardous Locations, it meets NEC/CEC/IEC standards while delivering reliable performance in challenging environments.
The luminaire supports NEC/CEC/IEC standards with an IP66 rating and NEMA 4X enclosure, suitable for ordinary non-hazardous locations. It aligns with multiple certification frameworks and is designed for rugged industrial use with durable materials, ensuring compliance across typical North American and international industrial installations.
Upgrading from a 250W HID to PVML-9-W-3A-R3-UNV1 yields energy savings thanks to a 76W LED draw and 126 lm/W efficiency, plus a longer service life and reduced maintenance cycles due to solid-state LEDs. The fixture's reliability, dimmable driver, and robust enclosure contribute to lower total cost of ownership and improved uptime, especially in hard-to-reach industrial locations.
