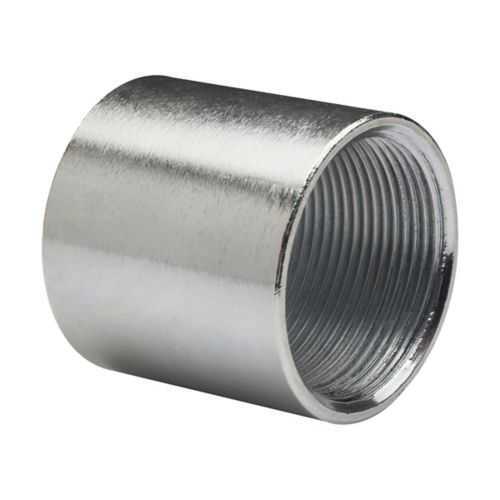

Eaton Crouse-Hinds RC100 Rigid Conduit Coupling - NEC/CEC
Part Number: RC100
Quick Summary
Eaton Crouse-Hinds RC100 rigid conduit coupling connects rigid or IMC steel conduits for industrial electrical installations. In the field, misalignment, vibration, and harsh environments can loosen fittings and cause downtime. UL certification for rigid-IMC connectors, NEC/CEC compliance, and area classification for ordinary locations ensure safety and reliability. This rugged coupling supports fast, compliant deployments across facilities, while offering accurate fit for 1" trade-size conduits and durable steel construction for long-term performance.
Product Information
Extended Description
RC100 Eaton Crouse-Hinds: Eaton Crouse-Hinds series rigid conduit coupling, Rigid/IMC, Steel, 1"
Product Name
Eaton Crouse-Hinds series rigid conduit coupling
Catalog Number
RC100
UPC
662277006743
Product Length/Depth
2.88 in
Product Height
0.94 in
Product Width
2.12 in
Product Weight
0.29 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Style
Rigid
Material
Steel
Trade size
1"
Crouse-Hinds series Connectors and Couplings - Rigid-IMC catalog page
Connectors and Couplings - Rigid-IMC UL certification
Connectors and Couplings - Rigid-IMC UL certification
Eaton Specification Sheet - RC100
RC100 is engineered as a durable, 1 inch trade-size rigid/IMC steel conduit coupling, delivering a secure, vibration-resistant connection that minimizes maintenance and downtime in demanding industrial environments. The steel construction provides corrosion resistance and structural integrity, supporting safer, code-compliant installations across factory floors and outdoor enclosures. By leveraging NEC/CEC standards and UL listing for rigid-IMC fittings, this connector helps simplify audits and accelerate approvals in control cabinets, panels, and wiring banks. Its compact dimensions—2.88 in length, 2.12 in width, and 0.94 in height—facilitate installation in tight spaces without compromising alignment or grounding continuity. Compatibility with both rigid and IMC conduits enhances installation versatility in automation projects and ensures consistent performance in non-hazardous locations. Expect lower total cost of ownership due to reliable fit, fewer rework cycles, and streamlined maintenance.
Get a Quick Quote for a Eaton Crouse-Hinds RC100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds RC100?
Enquire Now
FAQs
RC100 is designed for rigid and IMC steel conduits with a 1 inch trade size. For installation, align the conduits to be joined, slide the coupling into place, and secure per standard rigid/IMC installation practices to ensure a proper, grounded connection. Verify alignment and tightening to meet NEC/CEC requirements.
Key specs include 1 inch trade size, steel material, rigid conduit style, and rigid/IMC compatibility. The physical dimensions are 2.88 inches in length, 2.12 inches in width, 0.94 inches in height, with a weight of 0.29 pounds. These factors influence fitment in tight spaces and overall mechanical strength in industrial wiring.
RC100 is specified for Ordinary/Non-Hazardous Locations, aligning with typical plant and equipment rooms. For hazardous locations, evaluate alternative fittings that meet applicable explosion- or dust-ignition standards and ensure system compliance before deployment.
RC100 carries UL certification for rigid-IMC fittings and NEC/CEC compliance, with listings applicable to Canada as well. These certifications ease regulatory approvals, support safe operation in compliant facilities, and help reduce inspection risk across industrial automation projects.
The RC100 delivers a durable steel connection with reliable grounding and alignment, reducing rework and maintenance costs. Its compact size enables faster installs in tight enclosures, lowering labor time. UL/NEC/CEC compliance reduces audit findings, contributing to overall lifecycle savings in manufacturing and process environments.
