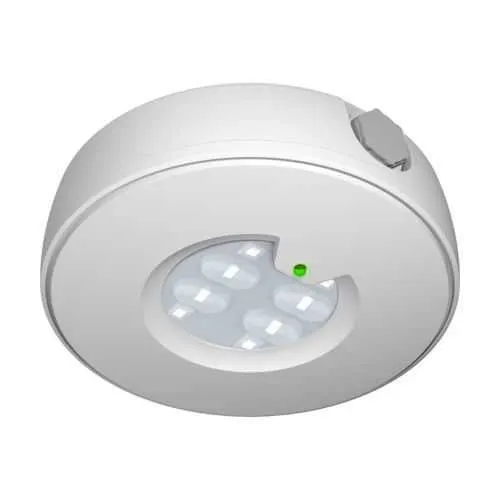

Eaton RT2SSEO200STF3HIPM Surface Emergency - IP65

Part Number: RT2SSEO200STF3HIPM
RT2SSEO200STF3HIPM
Manufacturer
Eaton Crouse-Hinds
Part number
RT2SSEO200STF3HIPM
Category

Quick Summary

RT2SSEO200STF3HIPM is a surface emergency luminaire designed to deliver reliable exit-path lighting for industrial and commercial environments. Engineers often wrestle with maintenance-heavy backup lighting and inconsistent illumination during power outages, which can compromise safety and uptime. This unit carries CE certification and an IP65 protection rating, with a 3-hour autonomy and a lithium-ion battery to ensure readiness when it matters most. Its ceiling surface mounting, LED source, and compact plastic housing translate to lower installation costs and predictable performance, while meeting safety standards for indoor applications.

Product Information

Extended Description

RT2SSEO200STF3HIPM Eaton Crouse-Hinds: Eaton Roundtech Medium Surface Safety Efocus STF 200 MNM 3H IP65 MEN
Product Name
Eaton RoundTech MSSEO surface emergency luminaire
Catalog Number
RT2SSEO200STF3HIPM
Product Length/Depth
138 mm
Product Height
48 mm
Product Width
138 mm
Product Weight
0.332 kg
Certifications
CE
EAN
3660191814786
Model Code
RTECH MS SEO STF 200 MNM 3H IP65 MEN
Battery voltage
3.2 V
Battery quality
Lithium-ions
Glow wire test
850 °C
Permissible ambient temperature - min
5 °C
Permissible ambient temperature - max
45 °C
Protection class
II
Outdoor use compliance
False
Explosion protected
False
Diameter
138 mm
Degree of protection
IP65
Mode
Maintained / Non-Maintained (M / NM)
Lamp type
LED not exchangeable
With light source
True
Lamp holder
None
Type of indicator
Not applicable
Monitoring equipment
None
Power supply system
Peripheral (individual battery)
Voltage type
AC
Apparent Power At Mains Operation
1.9 VA
Power factor
.58
Wiring system
Continuous circuit/emergency circuit
With remote switch connection
True
Reserve-polarity protected
False
Conductor cross section
2.5
Connection type
Plug-in connection
Max. system power
1.1 W
Rated life time L70/B10 at 25 °C
60600 hour
Rated life time L80/B10 at 25 °C
60600 hour
Rated life time L90/B10 at 25 °C
60600 hour
Type of control gear
Not required
Nominal voltage AC - max
230 V
Nominal voltage AC - min
230 V
Nominal operation time - min
3 hour
Nominal operation time - max
3 hour
Autonomy
3h
Mounting Method
Ceiling surface mounting
Material housing
Plastic
Color housing
White
Material cover
Plastic, transparent
Limited surface temperature
False
Number Of Poles (Numeric)
3
Impact strength
IK04
Kind of luminaire
Safety luminaire for escape route and open area lighting
Rated Luminous Flux Acc. IEC 62722-2-1
200 lm
Color temperature - max
5700 K
Color temperature - min
5700 K
Light distributor
Focal lens
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Function
Escape route lighting
Color of light
White
Color rendering index (CRI)
70
Luminous flux in standby mode
60 lm
Number of lighting heads
1
Suitable for number of lamps
1
Frequency
50/60Hz
Product branding
Menvier
Number of LEDs
4
Shape
Round
Application
Other
Testing system
No testing system
RoundTech MS SEO - LDT files RoundTech MS SEO - Brochure RoundTech MS SEO - Flyer RoundTech MS COC Declaration 2262751.06 UAE RoundTech MS COC Declaration 2262751.06 UAE RoundTech MS COC Declaration 2262751.06 UAE RoundTech MS COC Declaration 2262751.06 UAE RoundTech MS COC Declaration 2262751.06 UAE RoundTech MS COC Declaration 2262751.06 UAE RoundTech MS SEO - Installation manual RoundTech MS SEO - Installation manual RoundTech MS SEO - Datasheet
Feature: Maintained / Non-Maintained (M / NM) operation ensures compliant lighting with or without mains power. Benefit → Industrial uptime is preserved during outages, reducing evacuation time and improving worker safety during routine inspections and emergencies. Application: Suitable for open areas and escape routes in factories and warehouses. Feature: LED light source with 200 lm output and 5700 K color temperature provides bright, white illumination. Benefit → Clear visibility along escape paths reduces trip hazards and supports fast, confident egress in low-light conditions. Application: Indoor industrial facilities requiring high-contrast signage and consistent color rendering. Feature: 3.2 V lithium-ion battery and 1.9 VA apparent power with a 0.58 power factor. Benefit → Efficient energy use lowers operating costs and extends battery life, minimizing maintenance cycles. Application: Emergency lighting circuits with continuous or emergency-only operation. Feature: IP65 protection and durable plastic housing with a 138 mm diameter profile. Benefit → Dust and splash resistance plus a compact form factor simplify installation in challenging indoor environments. Application: Surface mounting in commercial corridors and production areas. Feature: 60600 hour L70/B10 LED life and 4 LEDs in a round luminaire. Benefit → Long service intervals and predictable lumen maintenance reduce lifecycle costs and downtime. Application: Long-term safety lighting in corridors, exit routes, and open areas. Feature: Glass-free, LED-not-exchangeable design with plug-in connection and remote switch capability. Benefit → Lower maintenance risk, easier field wiring, and flexible control options for modern safety systems. Application: New builds and retrofit projects requiring rapid commissioning and scalable control.

Get a Quick Quote for a Eaton Crouse-Hinds RT2SSEO200STF3HIPM

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds RT2SSEO200STF3HIPM? Enquire Now

FAQs

RT2SSEO200STF3HIPM is designed for ceiling surface mounting, simplifying installation in corridors and open areas. Its compact 138 mm diameter and white plastic housing fit standard mounting footprints, while the plug-in connection and remote switch options streamline wiring and future reconfigurations without major dismantling.
The luminaire operates at 230 V AC with a 3.2 V lithium-ion battery providing 3 hours of autonomy. It draws about 1.9 VA with a power factor of 0.58, and features a 4-LED array delivering 200 lm. This combination delivers efficient energy use, stable output during outages, and long-term lumen maintenance.
Yes. It is a safety luminaire intended for escape route lighting, with an IP65 rating suitable for indoor industrial environments. The maintained/non-maintained option supports both normal operation and emergency-only modes, ensuring quick egress and compliance with safety standards in factories and warehouses.
The unit carries CE certification and a II protection class. Its IP65 ingress protection and 3-hour autonomous operation align with common European safety and indoor use requirements for emergency lighting in commercial spaces.
With lithium-ion batteries and LEDs rated for up to 60600 hours L70/B10, maintenance intervals are extended compared with traditional lamp-and-battery solutions. The plug-in wiring, remote switch compatibility, and compact housing reduce labor costs during installation and service, delivering a favorable total cost of ownership over the product lifecycle.
