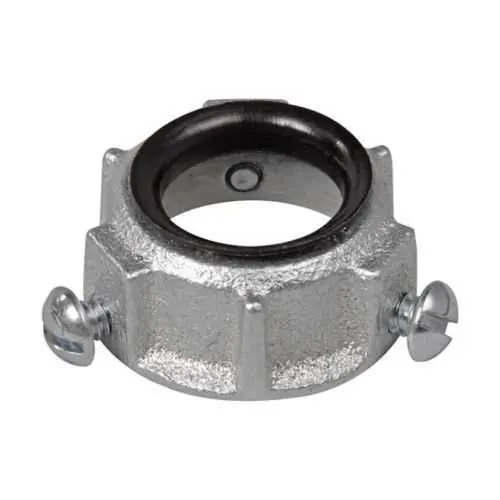

Eaton Crouse-Hinds S1036 Throat Bushing - UL Listed
Part Number: S1036
Quick Summary
Eaton Crouse-Hinds S1036 throat bushing provides insulated protection for rigid/IMC conduit systems in industrial electrical installations. When wiring in tight spaces or retrofit projects, installers face alignment, moisture ingress, and heat buildup that slow progress and raise risk. UL Listed and NEC/CEC compliant, with Ordinary/Non-Hazardous Location ratings, the S1036 also meets safety expectations for demanding environments. The 2-inch trade size, insulating malleable iron body, and 105°C temperature rating translate to faster, compliant installs and fewer field adjustments, reducing downtime and warranty calls while improving overall system reliability.
Product Information
Extended Description
S1036 Eaton Crouse-Hinds: Eaton Crouse-Hinds series throat bushing, Rigid/IMC, Insulated, Malleable iron, 105°C, Threadless, 2"
Product Name
Eaton Crouse-Hinds series throat bushing
Catalog Number
S1036
UPC
784564112200
Product Weight
0.25 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Insulator
Insulated
Thread
Threadless
Trade size
2"
Material
Malleable iron
Temperature rating
105°C
Crouse-Hinds series Insulating and Throat Bushings - Rigid-IMC catalog page
Insulating and Throat Bushings - Rigid-IMC UL certification
Insulating and Throat Bushings - Rigid-IMC UL certification
Eaton Specification Sheet - S1036
Feature: Rigid/IMC conduit compatibility → Business Impact: Ensures a robust, code-compliant conduit connection that minimizes misfits and rework in a busy panel or enclosure. Application: Ideal for new builds and retrofit projects in industrial facilities. Feature: Threadless design → Business Impact: Simplifies field installation, reducing tools and threading time, which speeds up project timelines and lowers labor costs. Application: Perfect for tight spaces and quick terminations at junctions. Feature: Insulated body using malleable iron → Business Impact: Protects conductors from moisture ingress and temperature effects, extending component life and reducing insulation failures. Application: Suitable for environments with exposure to humidity and heat. Feature: Temperature rating of 105°C → Business Impact: Maintains insulation performance in elevated temperatures, lowering failure risk and warranty issues. Application: Reliable in moderate to hot plant rooms and equipment rooms. Feature: 2-inch trade size → Business Impact: Clear sizing reduces compatibility checks and stock variety, accelerating procurement and installation. Application: Common conduit runs in industrial automation and electrical distribution. Feature: Certifications and compliance (NEC/CEC, Ordinary/Non-Hazardous Locations) → Business Impact: Streamlined approvals and safer installations with established regulatory alignment. Application: Useful for facilities needing straightforward regulatory proof during inspections. This combination of robust construction, installation ease, and proven compliance supports faster projects, fewer callbacks, and a more reliable conduit system in manufacturing and process facilities.
Get a Quick Quote for a Eaton Crouse-Hinds S1036
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds S1036?
Enquire Now
FAQs
The S1036 is designed for rigid/IMC conduit systems with a 2 inch trade size. It features an insulated, threadless body made from malleable iron and is rated for 105°C service in ordinary/non-hazardous locations, aligning with NEC/CEC requirements for typical industrial installations.
Yes. The S1036 is UL Listed for rigid-IMC use and meets NEC/CEC standards. It is approved for Ordinary/Non-Hazardous locations, providing confidence during inspections and simplifying regulatory approvals across facilities.
Absolutely. The S1036 carries a 105°C temperature rating, ensuring insulation integrity and protection of conductors in hotter plant rooms and equipment enclosures, while maintaining compliance with relevant standards.
The threadless design eliminates threading steps and the need for specialized tools, speeding placement at conduit terminations. Its 2" rigid/IMC compatibility and insulated body minimize field adjustments and moisture-related issues, resulting in lower labor costs and faster project completion.
Ensure proper clearance for the 2" trade size and verify NEC/CEC compliance for Ordinary Locations. Plan for conduit routing to avoid excessive bends, confirm the insulation remains intact during assembly, and use compatible fittings upstream. The UL-listed, threadless design is well-suited for tight spaces and maintenance-friendly setups.
