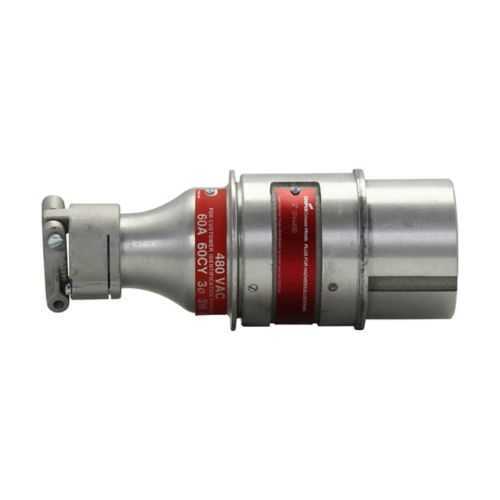

Eaton Crouse-Hinds SP6465D SP plug - NEC/CEC Hazardous Locations
Part Number: SP6465D
Quick Summary
Eaton Crouse-Hinds SP6465D SP plug provides rugged, reliable power connections for hazardous-location equipment. In harsh industrial environments, choosing connectors that meet NEC/CEC and Class I/II ratings reduces risk and downtime. This plug carries NEC/CEC compliance and multiple hazardous-location ratings along with a versatile NEMA profile (3, 7, 9, 12) to support varied installations. Built for SRD spring-door receptacles and 60A service, it also features a copper-free aluminum housing and brass contacts for durable performance. By combining robust sealing with a cable grip and neoprene bushing, it delivers safer, compliant operation with minimized maintenance and extended service life.
Product Information
Extended Description
SP6465D Eaton Crouse-Hinds: Eaton Crouse-Hinds series SP plug, 60A, 0.875-1.375" cable diameter, Three-wire, four-pole, Brass contacts, 60-400 Hz, Style 2, Copper-free aluminum, With cable grip and neoprene bushing, 480 Vac, Used with SRD spring door receptacles
Product Name
Eaton Crouse-Hinds series SP plug
Catalog Number
SP6465D
UPC
782274083100
Product Length/Depth
10.75 in
Product Height
4.75 in
Product Width
4.75 in
Product Weight
5.4 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 7 9 12
Amperage Rating
60A
Configuration
Three-wire, four-pole
Cable diameter
0.875-1.375 in
Grounding style
Style 2
Voltage rating
480 Vac
Frequency rating
60-400 Hz
Material
Copper-free aluminum
Contact material
Brass
Special features
With cable grip and neoprene bushing
Type
Used with SRD spring door receptacles
BHR and SRD Explosionproof Interlock Receptacles catalog page
BHR and SRD Explosionproof Interlock Receptacles UL certification
BHR and SRD Explosionproof Interlock Receptacles UL certification
IF 308 - SRD Interlock Receptacles
Eaton Specification Sheet - SP6465D
Feature: 60A amperage rating ensures capable power transfer for demanding equipment. Business Impact: Supports high-load motors and equipment without oversizing connectors, which reduces cable clutter and energy losses. Application: Industrial motors, conveyors, and pumps in hazardous locations reliant on reliable power feeds. Feature: Cable diameter range 0.875–1.375 in with three-wire, four-pole configuration and Style 2 grounding. Business Impact: Flexible cabling options simplify field termination and allow quick replacements, cutting downtime during maintenance. Application: Field services and retrofit projects where cable sizes vary across installations. Feature: Copper-free aluminum housing with brass contacts and 480 Vac, 60–400 Hz operation. Business Impact: Corrosion resistance and broad frequency range extend service life and improve electrical performance in harsh environments. Application: Explosive- atmosphere equipment and control panels in chemical, refining, and manufacturing plants. Feature: Cable grip and neoprene bushing provide enhanced ingress protection. Business Impact: Improved sealing against dust, moisture, and chemical exposure lowers failure rates and maintenance costs. Application: Outdoor or damp locations and installations exposed to contaminants. Feature: NEC/CEC compliance with Hazardous/Classified Locations and NEMA ratings 3, 7, 9, 12 plus SRD compatibility. Business Impact: Simplified procurement, verified safety, and seamless integration with SRD spring-door receptacles, reducing project risk and ensuring regulatory alignment. Application: Hazardous-location interlock/receptacle systems in heavy industry and energy sectors.
Get a Quick Quote for a Eaton Crouse-Hinds SP6465D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds SP6465D?
Enquire Now
FAQs
The SP6465D is designed for Class I, Division 1 and Division 2, Class II and III environments and works with SRD spring-door receptacles. It is ideal for heavy-duty motor feeds, power distribution panels, and equipment in chemical plants, refineries, and other hazardous locations where NEC/CEC compliance and robust ingress protection are essential.
SP6465D carries NEC/CEC standards alignment and Area Classification for Hazardous/Classified Locations, along with NEMA ratings 3, 7, 9, and 12. This combination ensures regulatory compliance, safer installations, and reliable operation in explosive atmospheres, reducing risk during commissioning and ongoing maintenance.
Yes, SP6465D is designed for use with SRD spring-door receptacles and supports a 0.875 to 1.375 inch cable diameter. This flexibility facilitates field retrofits and new builds, allowing secure terminations with reliable grounding and a consistent electrical interface for hazardous-location systems.
Key specs include a 10.75 in length, 4.75 in height and width, and a weight of 5.4 lb. The copper-free aluminum housing paired with brass contacts delivers durability, while Style 2 grounding and the included cable grip/bushing support robust mounting and sealing in challenging environments.
SP6465D offers long service life through corrosion-resistant materials, strong sealing, and compatibility with SRD interlocks, reducing unplanned outages and maintenance costs. While initial integration may be higher, the improved safety compliance and lower fault rates translate to lower total cost of ownership over the equipment lifecycle.
