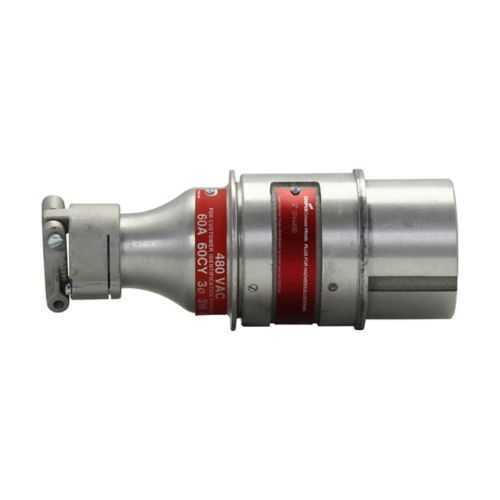

Eaton Crouse-Hinds SP6483D SP plug - Hazardous/Classified Locations
Part Number: SP6483D
Quick Summary
Eaton Crouse-Hinds SP6483D SP plug provides reliable power interconnect for hazardous-location equipment in industrial facilities. Manufacturing floors repeatedly face dust, chemical exposure, and strict safety requirements; this plug mitigates risk with rugged construction and sealed interfaces. It aligns with NEC/CEC standards, carries Hazardous/Classified Locations area classification, and offers NEMA ratings 7, 3, 9, 12 for versatile protection. Designed for SRD threaded-cap receptacles, it uses a copper-free aluminum body with brass contacts, delivering easy maintenance, reduced weight, and long-term uptime.
Product Information
Extended Description
SP6483D Eaton Crouse-Hinds: Eaton Crouse-Hinds series SP plug, 60A, 0.500-0.875" cable diameter, Three-wire, four-pole, Brass contacts, 60-400 Hz, Style 2, Copper-free aluminum, With cable grip and neoprene bushing, 480 Vac, Used with SRD threaded cap receptacles
Product Name
Eaton Crouse-Hinds series SP plug
Catalog Number
SP6483D
UPC
782274083117
Product Weight
5.39 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 1 Class I, Division 2 Class I, Division 1 Class II, Division 2 Class III
NEMA Rating
7 3 9 12
Amperage Rating
60A
Configuration
Three-wire, four-pole
Cable diameter
0.500-0.875 in
Grounding style
Style 2
Voltage rating
480 Vac
Frequency rating
60-400 Hz
Material
Copper-free aluminum
Contact material
Brass
Special features
With cable grip and neoprene bushing
Type
Used with SRD threaded cap receptacles
BHR and SRD Explosionproof Interlock Receptacles catalog page
BHR and SRD Explosionproof Interlock Receptacles UL certification
BHR and SRD Explosionproof Interlock Receptacles UL certification
IF 308 - SRD Interlock Receptacles
Eaton Specification Sheet - SP6483D
60A amperage rating with 480 Vac and a broad 60-400 Hz frequency range ensures compatibility with a wide range of motors and control gear. Business impact: supports high-load equipment without multiple adapters, reducing panel complexity and wiring errors. Application: pumps, conveyors, and fans in hazardous facilities. Three-wire, four-pole configuration with Style 2 grounding reduces miswiring and improves fault isolation, enabling safer startup sequences in rugged plant environments. Application: drives and motor control in chemical, oil & gas, and mining operations. Copper-free aluminum housing with brass contacts delivers corrosion resistance and weight savings, lowering total cost of ownership and easing field handling during maintenance. Application: portable or fixed installations in offshore and onshore sites. Cable grip and neoprene bushing provide strain relief and ingress protection, extending connector life in vibrating or long cable-run scenarios. Application: heavy-wind setups, conveyors, and processing lines. Compatibility with SRD threaded cap receptacles offers modularity and easy retrofits without replacing entire interlock assemblies. Application: explosion-proof interlock systems in compliance-driven facilities. Certifications under NEC/CEC and NEMA ratings 7, 3, 9, 12 support procurement and regulatory compliance, reducing risk in audits and inspections. This design also supports UL-linked certification references for industry-wide acceptance. ROI benefits include reduced maintenance cycles and longer service life in hazardous-location facilities.
Get a Quick Quote for a Eaton Crouse-Hinds SP6483D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds SP6483D?
Enquire Now
FAQs
SP6483D is designed specifically for use with SRD threaded-cap receptacles, providing a robust three-wire, four-pole interconnection. It features a copper-free aluminum housing, brass contacts, and aStyle 2 grounding scheme, all engineered to mate securely with SRD components. When pairing with SRD interfaces, ensure correct cable diameter and engagement to maintain explosion-protected integrity and reliable quick-connect/disconnect cycles in hazardous locations.
SP6483D is a 60A device rated for 480 Vac with a frequency range of 60–400 Hz. It uses a three-wire, four-pole configuration and supports a cable diameter of 0.500–0.875 inches. The housing is copper-free aluminum with brass contacts, and it includes Style 2 grounding, plus features like a cable grip and neoprene bushing for secure installation and ingress protection in demanding environments.
SP6483D complies with NEC/CEC standards and is suitable for Hazardous/Classified Locations based on area classification requirements. It carries NEMA ratings including 7, 3, 9, and 12, and is intended for use with explosion-protected interlock assemblies. These certifications help ensure regulatory compliance, safety, and reliability in oil & gas, chemical processing, and other hazardous-industrial settings.
SP6483D is recommended for hazardous-location interconnections in industries such as oil & gas, chemical processing, mining, and heavy industrial environments. It suits equipment requiring robust interlocks with SRD receptacles, including motors, pumps, conveyors, and control gear operating under strict safety and regulatory standards. Its copper-free aluminum housing and brass contacts support durable field performance in challenging sites.
To maximize safety and reliability, pair SP6483D with SRD threaded-cap receptacles designed for explosion-proof service, implement proper strain relief with the included cable grip and neoprene bushing, and verify cable diameter and termination are within specification. Follow NEC/CEC guidelines and the installation instructions IF 308 for SRD interlock receptacles to maintain compliance and long-term performance.
