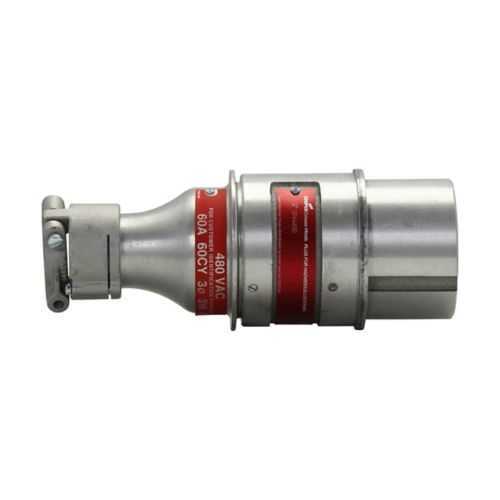

Eaton Crouse-Hinds SP6485D SP Plug - Hazardous Location
Part Number: SP6485D
Quick Summary
The Eaton Crouse-Hinds SP6485D SP plug is a rugged connector designed to mate with SRD threaded cap receptacles in hazardous-location equipment. This compact solution helps keep critical machinery energized while simplifying field termination and maintenance. Engineers often struggle with maintaining compliance, reliability, and uptime in explosive atmospheres, especially when selecting interconnects for high-current needs. The SP6485D delivers NEC/CEC compliance, UL certification, and robust NEMA ratings to address these challenges. By combining copper-free aluminum construction with a durable cable grip and neoprene bushing, it reduces weight and improves environmental resistance. For project teams, this plug offers a reliable, readily installable path to safe, code-compliant interconnection in harsh industrial settings while supporting SRD compatibility and scalable maintenance planning.
Product Information
Extended Description
SP6485D Eaton Crouse-Hinds: Eaton Crouse-Hinds series SP plug, 60A, 0.875-1.375" cable diameter, Three-wire, four-pole, Brass contacts, 60-400 Hz, Style 2, Copper-free aluminum, With cable grip and neoprene bushing, 480 Vac, Used with SRD threaded cap receptacles
Product Name
Eaton Crouse-Hinds series SP plug
Catalog Number
SP6485D
UPC
782274083124
Product Weight
5.6 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Division 1 Class II, Division 2 Class III Class II, Division 1
NEMA Rating
7 12 3 9
Amperage Rating
60A
Configuration
Three-wire, four-pole
Cable diameter
0.875-1.375 in
Grounding style
Style 2
Voltage rating
480 Vac
Frequency rating
60-400 Hz
Material
Copper-free aluminum
Contact material
Brass
Special features
With cable grip and neoprene bushing
Type
Used with SRD threaded cap receptacles
BHR and SRD Explosionproof Interlock Receptacles catalog page
BHR and SRD Explosionproof Interlock Receptacles UL certification
BHR and SRD Explosionproof Interlock Receptacles UL certification
IF 308 - SRD Interlock Receptacles
Eaton Specification Sheet - SP6485D
Feature: 60A amperage rating → Business impact: supports demanding loads with reliable current delivery, reducing overheating and downtime → Application: crane control, heavy machinery, and process lines in hazardous locations. Feature: 0.875-1.375 in cable diameter range → Business impact: accommodates a wide range of field cables while maintaining strain relief → Application: field wiring in tight electrical rooms or outdoor installations. Feature: Three-wire, four-pole configuration → Business impact: ensures proper grounding and fault isolation for safe operation → Application: motor control and interlock systems in hazardous environments. Feature: Style 2 grounding and 480 Vac rating → Business impact: enhances system safety and compatibility with standard industrial power supplies → Application: large automation panels and hazardous-location equipment feeding from 480 Vac. Feature: Copper-free aluminum housing with brass contacts → Business impact: lighter weight, corrosion resistance, and durable contact performance → Application: long-term reliability in corrosive or dusty plants. Feature: With cable grip and neoprene bushing → Business impact: superior strain relief and environmental sealing → Application: assembly in wet or dusty plants where vibration is a concern. Feature: Compatibility with SRD threaded cap receptacles → Business impact: simplifies installation and maintenance while ensuring interchangeability → Application: explosion-protected interlocks and receptacles in hazardous zones. Feature: NEMA 7, 12, 3, 9 ratings and NEC/CEC compliance → Business impact: verified protection and regulatory alignment for global deployments → Application: oil & gas, chemical processing, and mining automation projects.
Get a Quick Quote for a Eaton Crouse-Hinds SP6485D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds SP6485D?
Enquire Now
FAQs
SP6485D is designed to pair directly with SRD threaded cap receptacles, enabling a secure, interlocked connection. The three-wire, four-pole configuration plus Style 2 grounding ensures reliable fault isolation and proper grounding. For field deployment, ensure cable diameter within 0.875-1.375 in and verify 480 Vac supply compatibility, then tighten the grip and seal to maintain enclosure integrity.
Key specs include a 60A amperage rating, 480 Vac voltage rating, 60-400 Hz frequency range, and a three-wire, four-pole configuration. The device uses copper-free aluminum housing with brass contacts and features a Style 2 grounding method. Cable diameter range is 0.875-1.375 inches, and it’s intended for use with SRD interlock receptacles in hazardous locations.
Yes. SP6485D carries NEC/CEC compliance and NEC hazardous ratings, including Class I Division 1 and 2, Class II Division 2, and Class III, with NEMA ratings 7, 12, 3, and 9. This combination supports safe operation in hazardous/classified locations and aligns with global industry standards for explosive environments.
SP6485D is designed to meet NEC/CEC standards and is associated with UL certification for hazardous locations. Its NEMA ratings (7, 12, 3, 9) and area classifications—Hazardous/Classified Locations—provide essential regulatory assurance for equipment intended for demanding industrial environments, including oil, gas, and chemical processing facilities.
The copper-free aluminum housing reduces weight and corrosion risk, which lowers maintenance overhead. The integrated cable grip and neoprene bushing improve seal integrity and vibration resistance, reducing downtime. UL/NEC/CEC certifications support compliant installations, helping to minimize regulatory-related delays and boosting overall system uptime in harsh environments.
