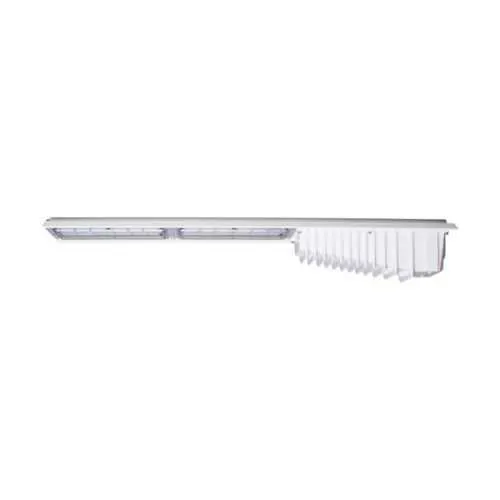

Eaton Crouse-Hinds SUM17L/UNV1 S903 Linear LED - IP66
Part Number: SUM17L/UNV1 S903
Quick Summary
SUM17L/UNV1 S903 is a high-efficiency linear LED light fixture designed for hazardous-area illumination in industrial facilities. Maintenance downtime and regulatory pressure can cripple production when lighting fails in harsh environments. This luminaire carries NEC/CEC hazardous-location classifications (Class I, Division 2; Class II, Division 1), plus NEMA 4X and IP66 protection, delivering rugged reliability. Its broad voltage compatibility—120-277 Vac and 127-250 Vdc—and 50/60 Hz operation support flexible integration across multiple feeders, while 17000 lumens and 118 lm/W optimize brightness per watt. The fixture also emphasizes long life and a favorable power factor, helping reduce energy waste and maintenance cycles. For engineers, this combination translates to safer workspaces and lower total cost of ownership in hazardous-area applications.
Product Information
Extended Description
SUM17L/UNV1 S903 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn Summit linear LED light fixture, 4-lamp T5HO, 50/60 Hz, LED, Polycarbonate lens, 17000 lm, 118 lm/W, Aluminum, PF > 0.90, 120-277 Vac, 127-250 Vdc, 144W
Product Name
Eaton Crouse-Hinds series Pauluhn Summit linear LED light fixture
Catalog Number
SUM17L/UNV1 S903
UPC
662276649927
Product Length/Depth
40.61 in
Product Height
6.39 in
Product Width
7.66 in
Product Weight
23.41 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
17000
Lumens per watt
118
Voltage rating
120-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Lens material
Polycarbonate
Material
Aluminum
Wattage
144W
Equivalent luminaire
4-lamp T5HO
Power factor
> 0.90
Crouse-Hinds series Pauluhn Summit LED Linear brochure
Crouse-Hinds series Pauluhn Summit LED Linear brochure
Crouse-Hinds series Pauluhn Summit LED Linear catalog page
Pauluhn Summit Hazardous Area Linear LED Light Fixtures Canadian certification
Pauluhn Summit Hazardous Area Linear LED Light Fixtures Canadian certification
Pauluhn Summit Hazardous Area Linear LED Light Fixtures Canadian certification
IF 1824 - Pauluhn Summit LED Linear
Eaton Specification Sheet - SUM17L/UNV1 S903
Eaton Specification Sheet - SUM17L/UNV1 S903
High-output LED engine delivers 17000 lumens with 118 lm/W, providing bright, uniform illumination across large industrial spaces and reducing shadows that can impede visual inspections and operator safety. This translates to measurable business value through improved productivity and fewer rework incidents in manufacturing and logistics environments. The power factor of greater than 0.90 supports stable electrical behavior in facilities with large lighting loads, lowering energy waste and easing electrical design concerns for plant engineers. Broad voltage support of 120-277 Vac and 127-250 Vdc at 50/60 Hz enables a single luminaire family to retrofit multiple sites without complex voltage conversions, simplifying procurement and reducing spare-part inventories. The IP66 and NEMA 4X enclosure delivers robust protection against dust, water, and washdowns, cutting maintenance downtime in chemical processing, mining, and offshore facilities. Polycarbonate lens and aluminum housing provide strong impact and corrosion resistance, extending service life in harsh environments and reducing replacement costs. The SUM17L/UNV1 S903 is the equivalent luminaire to a 4-lamp T5HO, easing retrofits from legacy systems and enabling ballast-free or reduced-ballast upgrades for lower operating costs. Pauluhn Summit luminaire lineage is trusted in regulated industries, supporting compliance and steady performance under demanding conditions.
Get a Quick Quote for a Eaton Crouse-Hinds SUM17L/UNV1 S903
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds SUM17L/UNV1 S903?
Enquire Now
FAQs
The SUM17L/UNV1 S903 is designed for NEC/CEC Hazardous Location classifications (Class I, Division 2; Class II, Division 1) and carries IP66/NEMA 4X protection. Installers should follow standard wiring practices for hazardous-area luminaires, ensure correct voltage supply within 120-277 Vac or 127-250 Vdc, and mount per the product’s mounting provisions. Retrofit projects can leverage its 4-lamp T5HO equivalence to simplify ballast elimination or replacement during upgrades.
Key performance specs include 17000 lumens with 118 lm/W efficiency, 144 W power consumption, PF > 0.90, and operation at 50/60 Hz. Voltage compatibility spans 120-277 Vac and 127-250 Vdc, enabling flexible integration across multiple sites. The fixture’s LED design provides long life and reliable output in demanding environments.
Yes. Its Hazardous/Classified Locations rating (NEC/CEC), IP66 ingress protection, and NEMA 4X enclosure make it appropriate for oil & gas, mining, and other harsh environments where washdowns, dust, and exposure to chemicals occur. Its bright 17000 lm output improves visibility for critical tasks and inspections.
Certifications include NEC/CEC Hazardous Location ratings (Class I, Division 2; Class II, Division 1), IP66 ingress protection, and NEMA 4X enclosure. These certifications support regulatory compliance, reduce risk during audits, and simplify approvals for hazardous-area lighting projects.
The luminaire’s high lumen output with energy-efficient performance (17000 lm at 118 lm/W) lowers operating costs, while PF > 0.90 improves electrical efficiency. Long life and rugged enclosure reduce maintenance frequency, downtime, and replacement parts, delivering lower total cost of ownership in hazardous locations.
