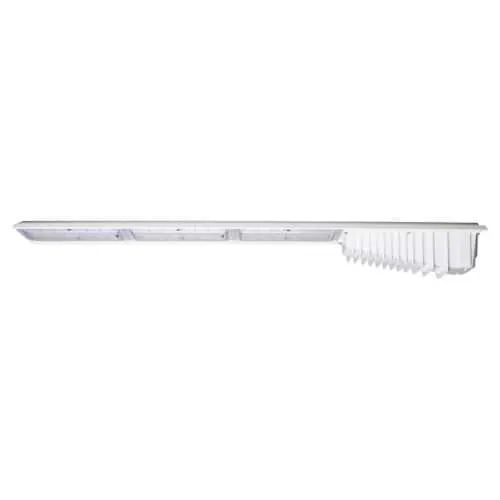

Eaton Crouse-Hinds SUM25L/UNV1 S903 Pauluhn Summit Linear LED Light Fixture - IP66
Part Number: SUM25L/UNV1 S903
Quick Summary
SUM25L/UNV1 S903 is a high-output Pauluhn Summit linear LED light fixture designed for hazardous-location industrial spaces. Facilities struggle to balance code compliance with reliable, energy-efficient illumination in tough environments. Key certifications such as IP66 protection, NEMA 4X enclosure, and NEC/CEC hazardous-location ratings support safe operation. This solution is built for global installations with universal voltage and long service life, reducing maintenance. It also aligns with retrofit programs by matching footprint and lumen output, enabling cost-effective upgrades.
Product Information
Extended Description
SUM25L/UNV1 S903 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn Summit linear LED light fixture, 6-lamp T5HO, 50/60 Hz, LED, Polycarbonate lens, 25000 lm, 115 lm/W, Aluminum, PF > 0.90, 120-277 Vac, 127-250 Vdc, 217W
Product Name
Eaton Crouse-Hinds series Pauluhn Summit linear LED light fixture
Catalog Number
SUM25L/UNV1 S903
UPC
662276649941
Product Length/Depth
52.84 in
Product Height
6.39 in
Product Width
7.66 in
Product Weight
31.28 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
25000
Lumens per watt
115
Voltage rating
120-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Lens material
Polycarbonate
Material
Aluminum
Wattage
217W
Equivalent luminaire
6-lamp T5HO
Power factor
> 0.90
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Pauluhn Summit LED Linear catalog page
Pauluhn Summit Hazardous Area Linear LED Light Fixtures Canadian certification
Pauluhn Summit Hazardous Area Linear LED Light Fixtures Canadian certification
Pauluhn Summit Hazardous Area Linear LED Light Fixtures Canadian certification
IF 1824 - Pauluhn Summit LED Linear
Eaton Specification Sheet - SUM25L/UNV1 S903
Eaton Specification Sheet - SUM25L/UNV1 S903
High-lumen LED output delivers 25000 lumens at 115 lm/W from 217W; this improves facility productivity by reducing fixture counts and lowering energy costs, especially in large-area production halls and outdoor-wastewater treatment zones. Universal voltage support of 120-277 VAC and 127-250 VDC simplifies global deployments, streamlining procurement and minimizing on-site engineering. The IP66 ingress protection and NEMA 4X enclosure provide rugged, corrosion-resistant performance in chemical plants and offshore facilities, ensuring reliable operation in harsh environments. The aluminum housing with a polycarbonate lens combines durability with transparency, enhancing heat management and long-term luminosity. The 6-lamp T5HO equivalent design supports retrofit strategies, enabling seamless replacements without substantial rework. A steady power factor >0.90 reduces electrical losses and supports compliant energy management programs. Installation instructions and literature support fast, safe commissioning and standardization across sites.
Get a Quick Quote for a Eaton Crouse-Hinds SUM25L/UNV1 S903
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds SUM25L/UNV1 S903?
Enquire Now
FAQs
SUM25L/UNV1 S903 is engineered for Class I, Division 2 and Class II, Division 1 environments with NEC/CEC compliance and IP66/NEMA 4X protection. It supports universal voltage (120-277 VAC, 127-250 VDC) for global installations and can be retrofitted using a footprint compatible with 6-lamp T5HO luminaires. For new builds or retrofits, refer to IF 1824 instructions for straightforward mounting and wiring.
The luminaire delivers 25,000 lumens at 115 lm/W from a 217W input, with a 50/60 Hz operating range. It runs on 120-277 Vac or 127-250 Vdc and provides a PF greater than 0.90. The lens is polycarbonate and the housing is aluminum, designed for durability in demanding industrial settings.
Yes. With IP66/NEMA 4X protection and NEC/CEC hazardous-location ratings, the SUM25L/UNV1 S903 is well-suited for oil and gas environments. Its 6-lamp T5HO equivalent footprint simplifies retrofits, and universal voltage reduces the need for voltage-specific hardware during replacement.
This luminaire carries NEC/CEC compliance for hazardous locations, with Class I Division 2 and Class II Division 1 ratings, along with a NEMA 4X enclosure and IP66 ingress protection. Canadian certifications and UL listings are reflected in the included installation literature and UL/CSA documentation linked in the product downloads.
The combination of 25,000 lumen output, 217W efficiency, and a PF >0.90 translates to lower energy costs and fewer fixtures required for large areas. The robust aluminum housing and polycarbonate lens, plus hazardous-location ratings, reduce maintenance and replacement frequency in harsh environments, delivering a favorable total cost of ownership over many years.
