Eaton Crouse-Hinds T17 Condulet Form 7 - NEMA 12
Part Number: T17
Quick Summary
Eaton Crouse-Hinds T17 Condulet Form 7 conduit outlet body securely routes 1/2 inch conduits in industrial control panels. Engineers often contend with incompatibilities, corrosion risk, and time-consuming pulls that erode uptime. This Form 7 body aligns with NEC/CEC standards, carries a NEMA 12 rating, and is suitable for Ordinary/Non-Hazardous Locations. By pairing rugged feraloy iron alloy construction with standard Form 7 compatibility, it reduces maintenance intervals and simplifies field assemblies. For projects demanding durable, code-compliant wiring solutions, this conduit outlet body delivers reliable performance, predictable installation, and long-term cost savings while integrating smoothly with common covers and accessories.
Product Information
Extended Description

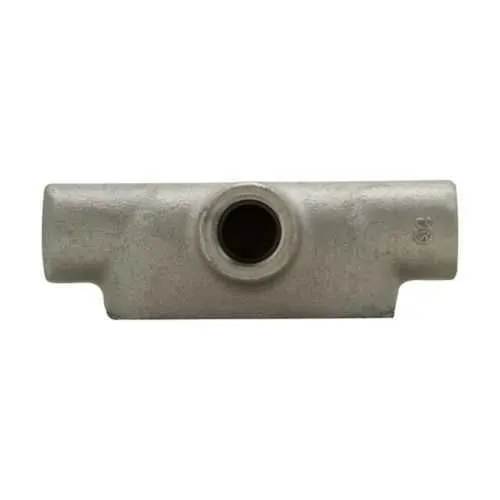

T17 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, T shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
T17
UPC
782274626000
Product Length/Depth
5.63 in
Product Height
2.44 in
Product Width
1.75 in
Product Weight
1.32 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
T
Trade size
1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy construction delivers rugged durability and corrosion resistance for Form 7 conduit bodies operating in standard industrial environments. This material choice reduces wear, extends service life, and lowers maintenance costs in high-cycle installations. Applications include conveyor lines, machine controls, and panel wiring where dependable conduit routing is critical. Feature: Form 7, 1/2 inch trade size design with compatible covers and tapping entries ensures standardization across panels. This design reduces inventory complexity and accelerates field installations by matching common Form 7 interfaces with Eaton Crouse-Hinds covers, cutouts, and gaskets. In practice, technicians appreciate predictable pull angles, modular assemblies, and the ability to swap components without disassembling large sections of the wiring run. Feature: Precise dimensions and weight optimize space planning and shipping logistics. At 5.63 in long, 2.44 in high, 1.75 in wide, and 1.32 lb, the T17 fits tight installations and minimizes mounting clearance requirements. The balanced form factor also aids handling during panel assembly and reduces overhead when hoisting components into compact enclosures. Feature: NEC/CEC compliance, NEMA Rating 12, and Ordinary/Non-Hazardous Locations classification support regulatory alignment. These certifications simplify risk assessment and ensure safe operation in standard facilities without special hazardous-area installations. The Form 7 design is widely accepted in electrical codes, making procurement and installation deterministic for engineering and maintenance teams. Feature: Comprehensive documentation and installation resources streamline onboarding and quality control. Access UL certification reports, installation instructions (IF 964), and datasheets that document wire-pull practices and bend radii. Availability of official guides minimizes training time and supports consistent field practices, audits, and maintenance planning.
Get a Quick Quote for a Eaton Crouse-Hinds T17
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds T17?
Enquire Now
FAQs
Install the T17 by aligning the Form 7 body with the supporting enclosure, selecting the compatible Form 7 cover, and threading the 1/2 inch conduit into the body. Ensure proper gasket seating and tighten fittings per the IF 964 instructions to maintain the NEMA 12 seal and maintain code compliance.
The T17 is rated NEMA 12, complies with NEC/CEC standards, and is intended for Ordinary/Non-Hazardous Locations. These certifications support regulatory alignment, safe operation, and reliable performance in typical industrial facilities.
The T17 is specified for Ordinary/Non-Hazardous Locations with a NEMA 12 rating. While it offers robust protection for many indoor environments, verify site conditions and consider additional enclosure sealing or enclosure-rated components if damp or wet locations are anticipated.
The T17 measures 5.63 inches in length, 2.44 inches in height, 1.75 inches in width, and weighs 1.32 pounds, providing a compact yet sturdy form factor for panel wiring and conduit routing.
Official installation instructions (IF 964) and UL certification references, along with datasheets for the Form 7 conduit bodies, are available from Eaton Crouse-Hinds. These documents support correct wiring practices, bend radii, pull limits, and maintenance planning during installation and audits.
