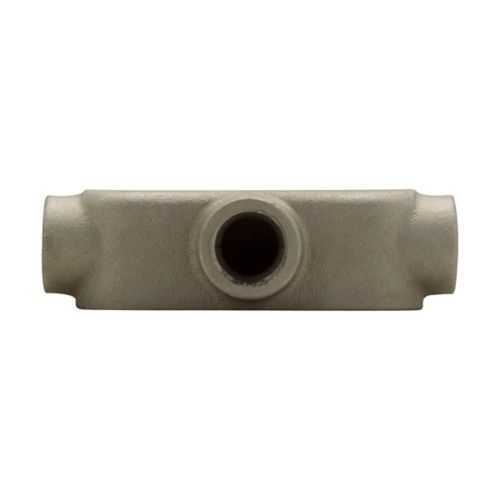

Eaton Crouse-Hinds T19 Conduit Outlet Body - NEMA 12
Part Number: T19
Quick Summary
The Eaton Crouse-Hinds T19 conduit outlet body provides rugged protection for field wiring in industrial control panels. This copper-free aluminum, T-shaped form supports reliable wire pulling and terminations in 1/2 inch trade size runs, helping installers save time on assembly. When space is tight or when standard hardware must meet strict NEC/CEC requirements, the T19 delivers consistent performance with a NEMA 12 rating for ordinary locations. As part of the Condulet Mark 9 family, it integrates with compatible fittings to streamline panel builds and maintenance. Copper-free aluminum construction reduces weight and corrosion risk, offering a durable, cost-effective solution for non-hazardous environments and scalable electrical installations.
Product Information
Extended Description
T19 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, T shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
T19
UPC
782274626307
Product Length/Depth
5 in
Product Height
2.13 in
Product Width
1.41 in
Product Weight
0.35 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
T
Trade size
1/2"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies UL certification
Condulet Mark 9 Conduit Outlet Bodies UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - T19
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Copper-free aluminum construction. Business Impact: Reduces weight, simplifies handling, and enhances corrosion resistance, lowering maintenance costs over the product life cycle. Application: Ideal for 1/2 inch trade size conduit runs in industrial panels where frequent access is required. Feature: T-shaped form with 5 in length, 2.13 in height, and 1.41 in width. Business Impact: Improves routing flexibility and fits congested enclosures, accelerating wiring and tidy cable management. Application: Condulet Mark 9 compatible installations in confined spaces. Feature: Low weight of 0.35 lb. Business Impact: Easier field installation and reduced shipment costs, improving overall project efficiency. Application: Field-ready conduit bodies in control cabinets and machine enclosures. Feature: NEMA 12 rating and NEC/CEC compliance. Business Impact: Ensures reliable protection in ordinary locations, reducing risk of ingress and non-compliance penalties. Application: Indoor, non-hazardous environments, standard-assembly panels. Feature: 1/2 inch trade size compatibility. Business Impact: Streamlines procurement with standard fittings and predictable performance; minimizes change orders. Application: Typical commercial and industrial wiring harnesses. Feature: Condulet Mark 9 family compatibility. Business Impact: Supports standardized configurations across multiple projects, enabling faster deployment and easier maintenance. Application: Seamless integration with Form 8 and Mark 9 catalog fittings and accessories.
Get a Quick Quote for a Eaton Crouse-Hinds T19
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds T19?
Enquire Now
FAQs
The T19 is designed specifically for 1/2 inch trade size conduits and is part of the Condulet Mark 9 family, ensuring seamless compatibility with standard Mark 9 fittings and Form 8 components. This compatibility minimizes adaptation work on site and reduces inventory complexity, which accelerates panel assembly and simplifies future maintenance.
Copper-free aluminum provides excellent corrosion resistance while keeping weight low, which translates to easier handling during installation and reduced logistics costs. In ordinary/non-hazardous locations, this material choice delivers reliable protection against environmental ingress without the heavier weight of steel, helping extend service life in typical plant environments.
The T19 carries a NEMA 12 rating and complies with NEC/CEC standards, making it suitable for ordinary locations in non-hazardous areas. This combination supports safe operation in indoor industrial panels and control cabinets, while UL certifications referenced in product literature further validate safety and compliance for North American installations.
With its compact T-shaped form and 1/2 inch trade size, the T19 reduces routing complexity and simplifies wire pulling. Its copper-free aluminum construction lowers weight, easing installation and handling during assembly, while compatibility with Condulet Mark 9 components ensures scalable configurations for ongoing maintenance and future expansions.
Yes. Eaton provides installation guides and technical datasheets, including instruction sheets for conduit body wire pulling (IF 863) and a comprehensive specification sheet for T19. These resources help technicians plan proper installation, verify clearance, and ensure compliance with local codes during panel fabrication and field service.
