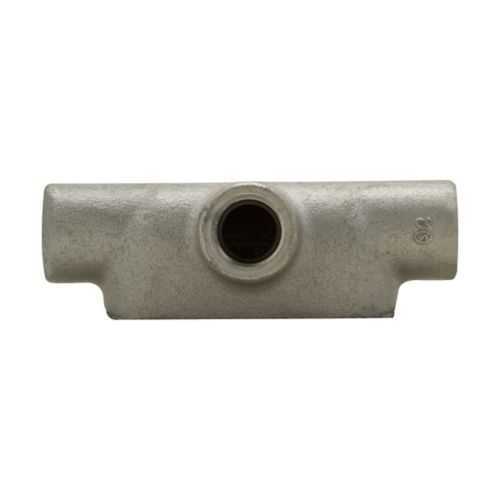

Eaton T47 Condulet Form 7 conduit outlet body - NEMA12
Part Number: T47
Quick Summary
Eaton T47 Condulet Form 7 conduit outlet body enables robust, reliable conduit connections in industrial panels. Engineers often contend with fittings that slow field wiring and complicate maintenance. This Form 7 device carries NEC/CEC compliance and a NEMA 12 rating for protection in ordinary locations, plus UL certifications for North America. Built from Feraloy iron alloy and sized for a 1-1/4 inch trade, it delivers durable performance that minimizes corrosion, reduces rework, and supports safer, compliant installations across control cabinets, motor starters, and equipment enclosures.
Product Information
Extended Description
T47 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, T shape, 1-1/4"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
T47
UPC
782274627502
Product Length/Depth
7.44 in
Product Height
3.19 in
Product Width
2.31 in
Product Weight
2.85 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
T
Trade size
1-1/4"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - T47
Eaton Specification Sheet - T47
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy construction. Benefit: Delivers rugged durability and improved corrosion resistance, extending service life in demanding industrial environments. Application: Suitable for control panels and outdoor enclosures where reliability matters. Feature: Form 7, T-shaped conduit outlet body. Benefit: Simplifies wiring pull and reduces installation steps, improving field efficiency. Application: 1-1/4 inch trade size wiring in compact panel spaces. Feature: Precise dimensions and weight. Benefit: Predictable fit in cabinets and on mounting surfaces, enabling cleaner layouts and faster installation. Application: Enclosures with limited space and strict mounting tolerances. Feature: Certifications and compliance. Benefit: NEC/CEC compliance and NEMA 12 rating provide code-adherent, protected conduit connections in ordinary locations, lowering risk of non-compliance fines and retrofit costs. Application: Industrial plants with strict electrical codes. Feature: Documentation and installation resources. Benefit: Access to catalogs, installation sheets, and UL certifications reduces procurement risk and speeds onboarding. Application: Project kickoff, sourcing, and field training with Form 7 materials.
Get a Quick Quote for a Eaton Crouse-Hinds T47
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds T47?
Enquire Now
FAQs
T47 is a Form 7 conduit outlet body designed for 1-1/4 inch trade size conduit. It features a T-shaped configuration that aligns with Form 7 specifications, enabling straightforward mounting and reliable conduit connections in standard metallic enclosures. Use with compatible Conduit Crouse-Hinds components and follow IF 863 guidelines for wire pulling to minimize resistance during installation.
Key specifications include 1-1/4 inch trade size, Form 7, T shape, Feraloy iron alloy construction, dimensions of 7.44 in length, 3.19 in height, 2.31 in width, and a weight of 2.85 lb. It carries a NEMA 12 rating and NEC/CEC compliance, with UL certifications for North America. These specs ensure durable, code-compliant performance in typical industrial environments.
Yes. T47 is rated for Ordinary/Non-Hazardous Locations per area classification and carries a NEMA 12 rating, making it appropriate for standard industrial control panels, enclosures, and cabinets. Its NEC/CEC compliance and UL certifications further support safe, compliant operation in non-hazardous settings.
T47 carries NEC/CEC standards compliance and a NEMA 12 rating, reflecting protection for dust and water in ordinary locations. It is UL-certified for Form 7 conduit outlet bodies in North America, with Canada-specific and US documentation available. These certifications help ensure regulatory conformity, safer installations, and smoother procurement across multinational projects.
The Feraloy iron alloy construction offers durable, long-life performance with reduced corrosion and fewer field replacements, lowering maintenance costs over the lifecycle. The robust design and code-compliant features minimize rework and downtime, delivering a favorable return on investment for panel builds and ongoing plant maintenance.
