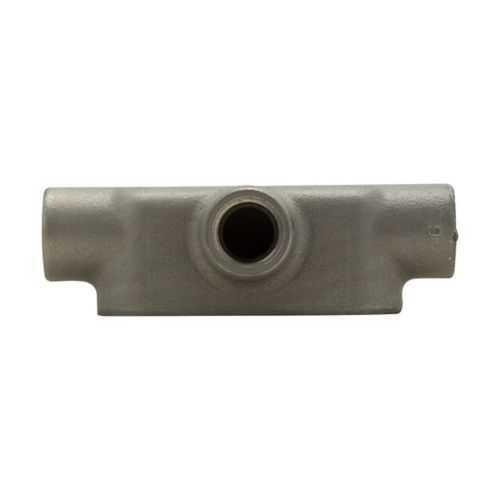

Eaton T58 Condulet Outlet Body for 1-1/2" Form 8 – NEMA 12
Part Number: T58
Quick Summary
The Eaton T58 Condulet Outlet Body provides rugged conduit sealing for Form 8 installations in industrial control panels. Wiring in tight or damp environments often leads to moisture ingress, misalignment, and costly rework. This conduit outlet body carries NEC/CEC compliance and a NEMA 12 rating for ordinary/non-hazardous locations, ensuring reliable protection where it matters. By aligning with standard 1-1/2 inch fittings and a durable Feraloy iron alloy body, it supports faster installation, predictable performance, and reduced maintenance costs. Ideal for panels, machines, and switchgear, the T58 delivers robust electrical connections without compromising on accessibility or service life.
Product Information
Extended Description
T58 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body, Feraloy iron alloy, T shape, 1-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body
Catalog Number
T58
UPC
782274627809
Product Length/Depth
10.38 in
Product Height
4 in
Product Width
2.78 in
Product Weight
4.85 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
T
Trade size
1-1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Form 8 Conduit Outlet Bodies Canadian certification
Condulet Form 8 Conduit Outlet Bodies Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - T58
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Form 8 conduit body supports easy wire entry and reliable conduit alignment → Business Impact: Reduces installation time and minimizes field rework, lowering labor costs and downtime on complex control panels → Application: Suitable for Form 8 1-1/2 inch conduit runs in machinery enclosures. Feature: Feraloy iron alloy construction → Business Impact: Excellent mechanical strength and durability in harsh environments, extending service life and lowering replacement rates → Application: Industrial environments with higher impact and mechanical stress. Feature: 1-1/2 inch trade size compatibility → Business Impact: Eliminates need for adapters, speeding up wiring pulls and panel assembly → Application: Standardized conduit connections for mid-size control cabinets. Feature: NEMA 12 rating and ordinary location suitability → Business Impact: IP-like interior protection against dust and moisture with compliant installation → Application: Electrical enclosures in non-hazardous facilities. Feature: NEC/CEC standards compliance → Business Impact: Simplifies inspection and reduces risk of noncompliance penalties, easing procurement governance → Application: Projects following North American electrical codes. Feature: Form 8 and Form 8 compatibility with installation literature (IF 863, IF964) → Business Impact: Clear guidance reduces installation errors, improves field reliability → Application: Commissioning cleanly in new builds and retrofits, with documented procedures and references.
Get a Quick Quote for a Eaton Crouse-Hinds T58
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds T58?
Enquire Now
FAQs
The T58 is designed for Form 8 applications with a 1-1/2 inch trade size and utilizes a Feraloy iron alloy body for strength. When planning installation, ensure alignment with standard Form 8 fittings, follow Eaton’s IF 863/IF 964 guidance for wire pulling, and verify NEC/CEC compliance for non-hazardous locations. This reduces field rework and ensures a smooth wiring sequence in control panels.
The T58 conduit outlet body is specifically molded for 1-1/2 inch trade size conduits within Form 8 configurations. This compatibility eliminates the need for adapters, speeds up wire pulling, and simplifies panel layouts. It’s ideal for mid-size enclosures and machinery where standardized conduit runs are common, improving installation efficiency and future serviceability.
The T58 carries a NEMA 12 rating and complies with NEC/CEC standards, with suitability for ordinary/non-hazardous locations. These certifications matter for safety and regulatory compliance in non-hazardous industrial environments, ensuring dust and moisture control within electrical enclosures and easing procurement for code-driven projects.
Yes, the T58 is designed for ordinary/non-hazardous locations, offering solid mechanical protection for interior panels in typical industrial settings. While it isn’t rated for hazardous or outdoor environments, its NEMA 12 protection helps resist dust and moisture ingress in controlled plant spaces, aligning with standard facility requirements and maintenance routines.
Choosing the T58 provides measurable value through faster installation, reduced field errors, and longer service life due to Feraloy iron alloy construction. Its compatibility with Form 8 and 1-1/2 inch fittings lowers accessory costs, while NEC/CEC compliance minimizes inspection delays and rework, delivering a favorable total cost of ownership in control panels and machinery.
