Eaton Crouse-Hinds T59 Condulet Mark 9 - NEMA 12
Part Number: T59
Quick Summary
The Eaton Crouse-Hinds T59 Condulet Mark 9 conduit outlet body terminates conduit in industrial enclosures. Engineers often wrestle with limited space, corrosion risk, and ensuring code compliance across varying plant environments. This unit delivers a NEMA 12 rating for ordinary/non-hazardous locations and NEC/CEC compliance, built from copper-free aluminum for superior corrosion resistance. By pairing a compact 1-1/2 inch trade size with a proven Mark 9 form, it enables reliable installations, reduces lifecycle costs, and simplifies maintenance for electrical teams in manufacturing, process, and automation facilities.
Product Information
Extended Description

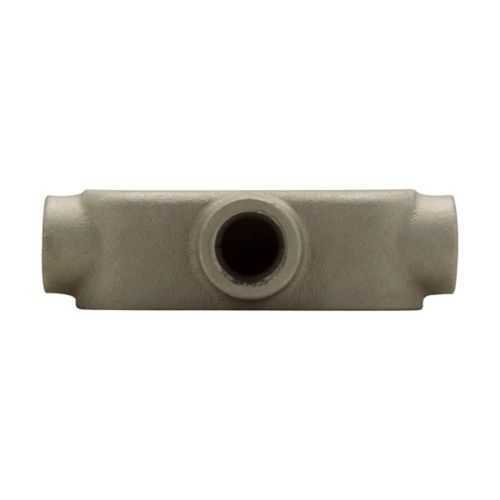

T59 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, T shape, 1-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
T59
UPC
782274627908
Product Length/Depth
8.34 in
Product Height
3.5 in
Product Width
2.81 in
Product Weight
1.55 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
T
Trade size
1-1/2"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies UL certification
Condulet Mark 9 Conduit Outlet Bodies UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - T59
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature copper-free aluminum construction → Business Impact corrosion resistance reduces maintenance and repaint cycles → Application suitable for control panels and machine enclosures in harsh plant environments. Feature NEMA 12 rating with NEC/CEC compliance → Business Impact ensures regulatory safety and traceability, minimizing retrofit risk → Application ideal for ordinary/non-hazardous locations in industrial settings. Feature 1-1/2 inch trade size → Business Impact supports standard conduit runs and simpler inventory management → Application for quick installations in limited spaces with compatible fittings. Feature T-shaped Mark 9 design and dimensions (8.34 in L × 3.5 in H × 2.81 in W) → Business Impact compact footprint and predictable fit improve layout planning and reduce enclosure depth → Application in tight electrical rooms and panels. Feature compatibility with Condulet Form 8 and Mark 9 family → Business Impact lowers spare parts and training needs → Application streamlines sourcing and field installs. Feature installation resources and wire fill guidance from Eaton → Business Impact reduces installation time and risk of wire crowding → Application accelerates project timelines in new builds or retrofits.
Get a Quick Quote for a Eaton Crouse-Hinds T59
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds T59?
Enquire Now
FAQs
The T59 is designed to be compatible with the Condulet Form 8 and Mark 9 family, enabling seamless integration with existing Condulet installations. It supports standard 1-1/2 in conduit and aligns with common mounting patterns, reducing the need for adapters. Installation sheets IF 863 provide guidance on wire pulling and assembly to ensure a clean, code-compliant setup.
The T59 is intended for ordinary/non-hazardous locations with a NEMA 12 rating, meeting NEC/CEC standards. Its copper-free aluminum construction offers enhanced corrosion resistance, making it suitable for indoor industrial environments such as control panels, machine enclosures, and process areas that require reliable enclosure hardware.
Copper-free aluminum resists corrosion better than traditional materials in many industrial environments, reducing repainting, maintenance visits, and part replacement. Over the life of a panel or enclosure, this translates to lower maintenance costs and less downtime, particularly in plants with humidity, dust, or chemical exposure where conduit bodies are frequently inspected.
The T59 measures 8.34 in in length, 3.5 in in height, and 2.81 in in width, with a weight of 1.55 lb. These specifications determine space requirements inside enclosures and along conduit runs, helping engineers plan mounting clearances, wire routing, and pulling space. Accurate dimensions also aid in selecting compatible gaskets and covers for weather or dust exposure in non-hazardous locations.
Official datasheets and installation resources are available from Eaton. Look for the Eaton Specification Sheet for T59 and the IF 863 instruction sheet for conduit body wire pulling. Additional documentation includes the Condulet Mark 9 catalog page and wire fill charts to assist with compliant conductor sizing and layout planning.
