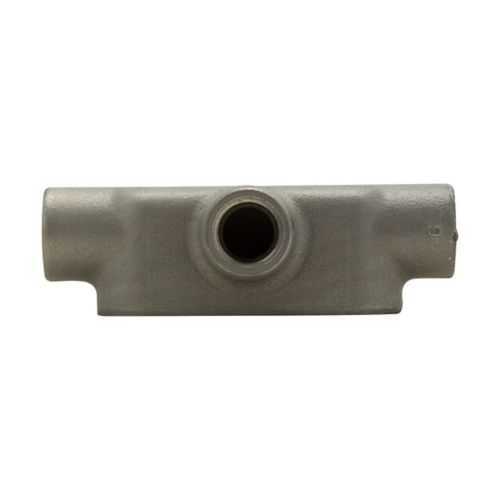

Eaton Crouse-Hinds T68 Condulet Form 8 conduit outlet body - NEMA 12
Part Number: T68
Quick Summary
Eaton Crouse-Hinds T68 conduit outlet body provides Form 8 termination for industrial wiring in harsh environments. When space is tight and wire pulls are complex, achieving reliable, code-compliant terminations can be challenging. It is rated for Ordinary/Non-Hazardous locations with NEC/CEC compliance and a NEMA 12 enclosure for dependable protection in control panels and equipment. This form 8 conduit body supports a 2" trade size and features Feraloy iron alloy construction, delivering durable performance. By leveraging these specifications, OEMs and maintenance teams can accelerate installation while maintaining compliance, ultimately reducing downtime and lifecycle costs. The product also integrates smoothly with standard Condulet systems, enhancing overall wiring efficiency and field serviceability.
Product Information
Extended Description
T68 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body, Feraloy iron alloy, T shape, 2"
Product Name
Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body
Catalog Number
T68
UPC
782274628202
Product Length/Depth
12.25 in
Product Height
5 in
Product Width
3.56 in
Product Weight
7.9 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
T
Trade size
2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Form 8 Conduit Outlet Bodies Canadian certification
Condulet Form 8 Conduit Outlet Bodies Canadian certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - T68
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Form 8 T68 design provides a compact, reliable termination point for conduit connections. Business Impact: Improves installation speed and reduces field repair time in tight spaces. Application: Suitable for machine enclosures and control panels where space is at a premium and rugged protection is required. Feature: Feraloy iron alloy construction delivers high strength and corrosion resistance. Business Impact: Extends service life in dusty, humid, or harsh industrial environments, lowering maintenance costs. Application: Ideal for heavy industry applications such as manufacturing lines and process equipment. Feature: 2" trade size withForm 8 geometry enables standardized fitting and ease of wiring. Business Impact: Speeds wire pull and simplifies compliance checks, reducing project lead times. Application: Fits common conduit systems used in OEM assemblies and field installations. Feature: NEMA 12 enclosure rating and Ordinary/Non-Hazardous location classification. Business Impact: Provides reliable dust and moisture protection, decreasing field failures and warranty exposure. Application: Suitable for non-hazardous plant floor equipment and control cabinets. Feature: NEC/CEC standards alignment ensures regulatory compliance. Business Impact: Safeguards both end users and installers by meeting widely adopted electrical codes. Application: Facilitates cross-border deployments and simplifies procurement for multinational projects. Feature: 12.25 in length, 5 in height, 3.56 in width, and 7.9 lb weight profile. Business Impact: Balanced footprint for space-constrained installations while maintaining mechanical robustness. Application: Appropriate for wall- or panel-mounted conduit layouts and service access operations.
Get a Quick Quote for a Eaton Crouse-Hinds T68
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds T68?
Enquire Now
FAQs
The T68 Condulet Form 8 conduit outlet body provides a Form 8 termination point for conduit connections in industrial applications. It accommodates a 2 inch trade size and is designed for use in ordinary/non-hazardous locations, offering robust protection with a NEMA 12 enclosure. This makes it ideal for control panels, equipment housings, and other rugged wiring interfaces where reliable wire pulling and safe terminations are required.
The T68 is built to NEC/CEC standards and features a NEMA 12 enclosure rating, suitable for ordinary/non-hazardous locations. These certifications support compliant installation in industrial facilities and control environments, ensuring regulatory alignment across North American projects. For international qualification, Canadian certification references are available through UL files linked in product documentation.
Key specifications include a length of 12.25 inches, a height of 5 inches, and a width of 3.56 inches, with a product weight of 7.9 pounds. The trade size is 2 inches, and the enclosure follows Form 8 geometry, enabling standardized integration with common conduit systems used in industrial facilities.
Installation involves selecting the appropriate Form 8 conduit body for a 2 in system, ensuring the area classification is Ordinary/Non-Hazardous, and following NEC/CEC wiring practices. Refer to Eaton IF 964 instruction sheets for wire pulling guidance, along with the Form 8 catalog pages and the wire fill chart. Use proper torque on fittings and avoid exceeding conduit fill limits to maintain code compliance.
Datasheets and catalogs are available from Eaton Crouse-Hinds. Look for the Crouse-Hinds Form 8 and Mark 9 catalog page, the Eaton Specification Sheet for T68, and installation instructions such as IF 964. These documents provide detailed dimensions, wire fill guidance, and installation tips to support procurement and field installation.
