Eaton Crouse-Hinds T69 Condulet Mark 9 - NEMA 12
Part Number: T69
Quick Summary
T69 Condulet Mark 9 conduit outlet body provides rugged wiring access for industrial enclosures. In tight spaces and harsh environments, installer effort, miswiring risk, and field rewiring can drive downtime. It’s designed for ordinary/non-hazardous locations, with a NEMA 12 rating and NEC/CEC compliance for reliable field installations. Copper-free aluminum construction keeps weight down and corrosion resistance up, while the 2 inch trade size supports scalable conduit routing. This combination accelerates installation, reduces field reworks, and strengthens compliance documentation for audits. For engineers and procurement teams, it delivers predictable performance, availability of spare parts, and a familiar Eaton/Crouse-Hinds ecosystem. That helps shorten commissioning and start-up timelines across facilities.
Product Information
Extended Description

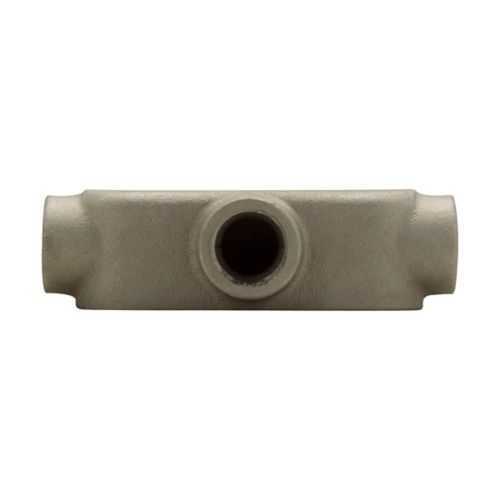

T69 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, T shape, 2"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
T69
UPC
782274628301
Product Length/Depth
10.63 in
Product Height
4.41 in
Product Width
3.44 in
Product Weight
2.53 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
T
Trade size
2"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - T69
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Material choice and form factor translate into tangible business gains. Feature: copper-free aluminum construction reduces overall weight and eliminates corrosion concerns in critical environments. Benefit: easier handling during installation and longer service life lower maintenance costs and downtime. Application: ideal for 2" trade size conduits in industrial facilities where weight-sensitive installations are common. Feature: Form 9/T-shaped Condulet body aligns with standard Condulet families, enabling quick mix-and-match with existing components. Benefit: streamlined sourcing and faster project delivery through a familiar Eaton/Crouse-Hinds ecosystem. Application: panel and enclosure wiring interfaces in harsh environments. Feature: NEMA 12 rating and NEC/CEC compliance protect wiring and support safe operation in Ordinary/Non-Hazardous Locations. Benefit: compliance assurance and safer commissioning with auditable documentation. Application: facilities requiring reliable protection for splices and pull points. Feature: clearly defined dimensions (10.63 in L, 4.41 in H, 3.44 in W) and weight (2.53 lb) support accurate panel layout and shipping planning. Benefit: reduced surprise costs and efficient space planning. Application: retrofit projects and new builds with precise fit requirements. Feature: installation resources including IF 863 wire-pulling sheets and the T69 specification sheet aid installers. Benefit: improved installation quality and adherence to best practices. Application: field technicians following documented guidelines.
Get a Quick Quote for a Eaton Crouse-Hinds T69
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds T69?
Enquire Now
FAQs
When planning installation, verify the 2" trade size compatibility and use the IF 863 Conduit Body Wire Pulling guidelines to minimize friction and snag points. Ensure the enclosure location is Ordinary/Non-Hazardous and that NEC/CEC compliance requirements are met. Use standard Condulet mounting patterns and confirm space for pull points and conduit routing to reduce rework and commissioning time.
Yes. The T69 is designed for ordinary locations with a NEMA 12 rating and adherence to NEC/CEC standards. This combination delivers reliable dust and water protection for non-hazardous environments, helping you pass regulatory reviews, support audits, and maintain continuity in hazardous-free facilities without overdesign.
The T69 is part of the Condulet Mark 9 family and is designed to integrate smoothly with Form 8 and other Mark 9 bodies. Its copper-free aluminum construction and standard 2" trade size ensure straightforward compatibility with matching lids, covers, and fittings, enabling scalable, modular conduit routing across panels and enclosures.
The T69 conduit outlet body has a length of 10.63 inches, a height of 4.41 inches, and a width of 3.44 inches, with a weight of 2.53 pounds. These dimensions support precise panel cutouts and space planning in compact industrial enclosures, helping avoid fit issues during field installation.
Available resources include the Crouse-Hinds Form 8 and Mark 9 catalog page, Eaton’s T69 specification sheet, IF 863 wire pulling instruction sheets, and technical bulletins on bend radius and cubic capacity. Canadian certification documents are accessible via UL for cross-border compliance, aiding audits and maintenance planning.
