Eaton Crouse-Hinds T78 Condulet Form 8 - NEMA 12
Part Number: T78
Quick Summary
Eaton Crouse-Hinds T78 Condulet Form 8 conduit outlet body protects fittings in industrial electrical enclosures. Designers often struggle with space constraints, corrosion resistance, and compliant installation in harsh plant environments. This Form 8 body delivers reliable form factor, robust NEMA 12 protection, and NEC/CEC compliance for non hazardous locations. The rugged Feraloy iron alloy construction provides durability in dusty, humid, or equipment packed spaces, reducing maintenance cycles. Leveraging slip in installation and compatibility with standard Form 8 condulet accessories helps expedite projects, cut field rework, and lower total cost of ownership. In addition, access to Eaton installation sheets and wire fill data supports accurate conductor sizing and safe pulling. Whether upgrading legacy gear or deploying new equipment in control panels, this conduit body aligns with industry best practices for efficiency and reliability.
Product Information
Extended Description

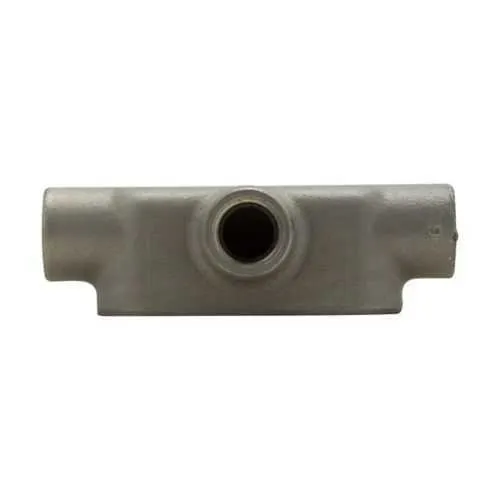

T78 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body, Feraloy iron alloy, T shape, 2-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body
Catalog Number
T78
UPC
782274628509
Product Length/Depth
15.63 in
Product Height
6.69 in
Product Width
4.44 in
Product Weight
14.05 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
T
Trade size
2-1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Form 8 Conduit Outlet Bodies UL certification
Condulet Form 8 Conduit Outlet Bodies UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - T78
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
The Form 8 conduit outlet body uses Feraloy iron alloy for resilience against corrosion and impact. This translates to longer service life in dusty, humid conditions and reduced maintenance intervals in busy plant floors. It is ideal for control panels and equipment housings in process automation lines where uptime matters. Trade size and dimensions define integration. With a 2-1/2 inch trade size, a length of 15.63 inches, height 6.69 inches, width 4.44 inches, and a weight of 14.05 pounds, it fits standard Form 8 configurations and supports efficient wire routing. This supports accurate layout planning and faster installation on new builds or upgrades. Compliance and protection deliver risk reduction. The unit carries a NEMA 12 rating and NEC/CEC standards for ordinary non hazardous locations, ensuring safe operation in typical plant environments. Coupled with non hazardous classification, it simplifies risk assessments and regulatory alignment during audits. Installation and compatibility advantages. The T78 supports slip-in installation with standard Form 8 accessories, enabling faster field assembly and easier future modifications. Installation instructions and wire fill guidance from IF 863 sheets further reduce mistakes and ensure proper conductor sizing. Procurement and design efficiency. Accessible catalogs and datasheets, including the Crouse-Hinds Form 8 catalog page and the Eaton specification sheet for T78, streamline product selection and documentation. This minimizes design ambiguity and accelerates approval cycles in engineering teams.
Get a Quick Quote for a Eaton Crouse-Hinds T78
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds T78?
Enquire Now
FAQs
The T78 is ideal for industrial control panels, junctions, and equipment housings in non hazardous plant environments. It supports 2-1/2 inch conduits with standard Form 8 accessories, enabling quick field upgrades, simplified wiring routes, and reliable protection in busy manufacturing settings. Its compatibility reduces field fabrication time and accelerates project timelines.
Key specifications include a 2-1/2 inch trade size, Form 8 shape, Feraloy iron alloy construction, dimensions of about 15.63 inches long, 6.69 inches high, 4.44 inches wide, and a weight of 14.05 pounds. It carries NEC/CEC compliance and a NEMA 12 rating, suitable for ordinary non-hazardous locations in industrial environments.
Yes. The T78 is designed for compatibility with standard Form 8 condulet accessories and supports slip-in installation methods. This enables faster field assembly, easier future modifications, and reduced need for specialty fittings. Refer to installation sheets such as IF 863 for wire pulling guidelines and proper conductor sizing.
The T78 carries NEC/CEC standards and a NEMA 12 rating, with an area classification of Ordinary/Non-Hazardous Locations. UL certifications for Condulet Form 8 bodies are referenced in the product documentation, supporting regulatory compliance during audits and ensuring reliable operation in standard industrial settings.
The T78 reduces field rework through standard Form 8 compatibility and clear wire fill guidance, accelerating commissioning. Its durable Feraloy iron alloy resists wear in harsh environments, lowering maintenance frequency. Together, these factors shorten downtime, improve uptime, and lower lifecycle costs for control panels and industrial equipment in non-hazardous locations.
