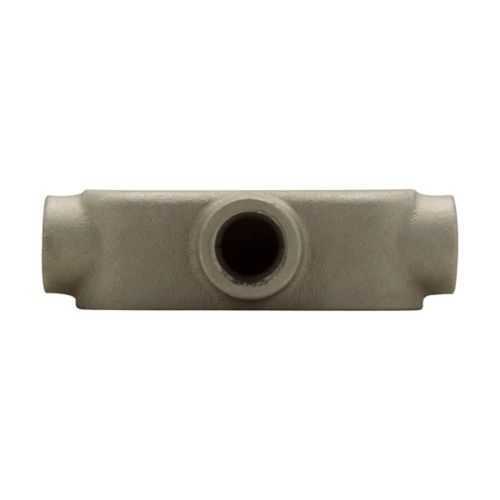

Eaton T789 Condulet Mark 9 conduit outlet body - NEMA 12
Part Number: T789
Quick Summary
Condulet Mark 9 conduit outlet body from Eaton Crouse-Hinds provides durable enclosure for industrial conduit terminations. Manufacturers face delays selecting a body that offers reliable protection, easy wiring access, and long-term corrosion resistance. It carries a NEMA 12 rating for ordinary locations with NEC/CEC compliance and UL certifications for US and Canada. With copper-free aluminum and a 2-1/2 inch trade size, this solution supports efficient panel wiring while reducing weight and total cost.
Product Information
Extended Description
T789 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, T shape, 2-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
T789
UPC
782274629704
Product Length/Depth
15.63 in
Product Height
6.69 in
Product Width
4.44 in
Product Weight
5.35 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
T
Trade size
2-1/2"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies UL certification
Condulet Mark 9 Conduit Outlet Bodies UL certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - T789
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Copper-free aluminum construction reduces weight and improves corrosion resistance, delivering a better balance of protection and installability on the shop floor. This translates to lower freight costs and longer service life in non-hazardous environments, where Form 9 bodies meet the demands of rigorous panel wiring. 2-1/2 inch trade size and a T-shaped form provide expanded internal routing and easier wire pulling in tight enclosures, enabling faster terminations in automated equipment and control panels. The NEMA 12 rating ensures dust and light moisture protection for indoor industrial spaces, while NEC/CEC compliance and UL certifications help ensure regulatory alignment across US and Canada. Catalog references and installation guides—IF 964 instruction sheets and specification pages—support straightforward installation and conductor pull planning. With a weight around 5.35 lb and dimensions of 15.63 in length by 6.69 in height and 4.44 in width, the unit balances robust protection with manageable handling for field crews. This combination supports reliable sourcing, standardized terminations, and predictable maintenance cycles for long-running automation projects.
Get a Quick Quote for a Eaton Crouse-Hinds T789
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds T789?
Enquire Now
FAQs
Refer to IF 964 conduit body wire pulling instructions and the Eaton specification sheet for the T789. Ensure the 2-1/2 inch trade size fits your enclosure and follow recommended bend radii to avoid binding. Verify mounting clearance and compatible fittings per Condulet Mark 9 catalog pages to streamline field installation.
Yes. The T789 Condulet Mark 9 is designed to NEC/CEC compliant assembly and is UL certified for US and Canada. It supports ordinary/non-hazardous locations with a NEMA 12 enclosure rating, aiding regulatory alignment across projects in North America.
Ideal for panel wiring, machine wiring, and indoor enclosures in ordinary locations. The copper-free aluminum construction, combined with a 2-1/2 inch trade size and NEMA 12 protection, makes it well-suited for automation cabinets, control panels, and other non-hazardous environments requiring reliable conduit terminations.
The T789 measures 15.63 inches in length, 6.69 inches in height, and 4.44 inches in width, with an approximate weight of 5.35 pounds. These specifications support straightforward handling, shipping, and installation in typical factory layouts.
Available documents include the Crouse-Hinds Mark 9 catalog page, UL certification reports (Canada and US), IF 964 wire pulling instructions, and the Eaton specification sheet for the T789. These resources assist with proper assembly, regulatory compliance, and field best practices.
