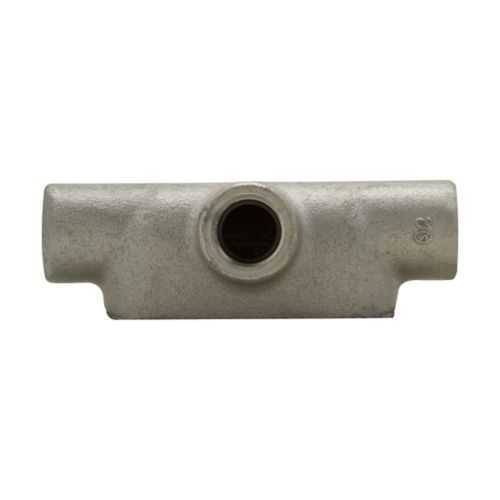

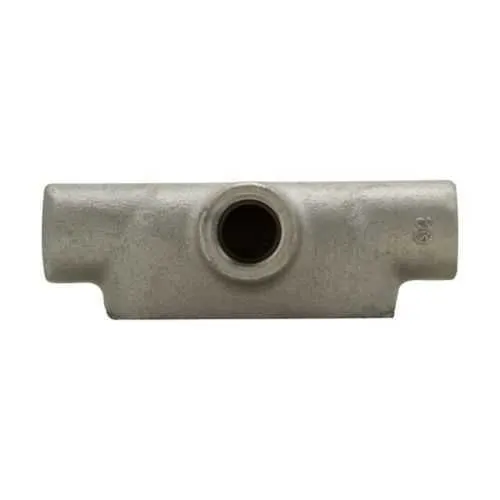

Eaton Crouse-Hinds T87 Condulet Form 7 - NEMA 12
Part Number: T87
Quick Summary
The Eaton Crouse-Hinds T87 Condulet Form 7 conduit outlet body is designed for robust 3-inch conduit connections in industrial electrical installations. Installers often struggle with space constraints and hard-to-access wiring, and this form 7 body simplifies access while protecting splices. It delivers NEC/CEC compliance, a NEMA 12 rating, and UL certification for ordinary locations, ensuring reliability in daily operations. Leveraging the Feraloy iron alloy and Form 7 geometry, this conduit body enhances installation efficiency and reduces maintenance costs for panel builders and OEMs alike.
Product Information
Extended Description
T87 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, T shape, 3"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
T87
UPC
782274628608
Product Length/Depth
12.06 in
Product Height
5.75 in
Product Width
4.38 in
Product Weight
13.05 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
T
Trade size
3"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy construction provides exceptional hardness and corrosion resistance in rugged environments → Business Impact: Prolonged service life with reduced maintenance and replacement costs → Application: Suitable for heavy-duty industrial enclosures and outdoor installations using 3 inch conduit. Feature: Form 7 T-shaped conduit body design enables straightforward wire pulling and easy access to splices → Business Impact: Faster installs and reduced labor time during panel assembly and field upgrades → Application: Control panels, machine wiring, and field junctions that require reliable access. Feature: Large dimensions (12.06 in L × 5.75 in H × 4.38 in W) and 13.05 lb weight → Business Impact: Predictable fit in standard enclosures and robust mechanical protection → Application: Electrical cabinets and process equipment requiring ample internal space. Feature: NEMA 12 rating with NEC/CEC compliance and UL certification → Business Impact: Compliance assurance and protection in ordinary/non-hazardous locations, reducing regulatory risk → Application: Industrial facilities, manufacturing lines, and OEM equipment. Feature: 3 in trade size and availability of catalogs and datasheets (IF 863 wiring, Form 7 spec guide) → Business Impact: Clear purchasing decisions, verified installation procedures, and faster procurement → Application: System integrators, spec engineers, and procurement teams seeking validated Form 7 conduit bodies.
Get a Quick Quote for a Eaton Crouse-Hinds T87
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds T87?
Enquire Now
FAQs
Follow the IF 863 Conduit Body Wire Pulling instruction for proper wiring clearance, pull procedures, and tool selection. Use the correct cover and gasket kit for Form 7 bodies, ensure proper seal integrity, and confirm the 3 in trade size compatibility. Reference Eaton’s installation sheets and the form 7 data to avoid field assembly errors.
Yes. The T87 Condulet Form 7 is designed to NEC/CEC compliant installations and carries a NEMA 12 rating, suitable for ordinary/non-hazardous locations. This combination provides dust and light moisture protection while enabling safe termination and wiring in typical industrial environments. UL certifications further validate its conformance for cross-border use.
The T87 Form 7 conduit outlet body is manufactured from Feraloy iron alloy, offering superior hardness and abrasion resistance. This material choice improves long-term durability in demanding environments and helps resist wear from repeated conduit connections, pulls, and field servicing, which can lower maintenance costs over the product’s lifecycle.
The T87 measures 12.06 inches in length, with a height of 5.75 inches and a width of 4.38 inches. It weighs 13.05 pounds. These dimensions provide predictable space planning for control panels and enclosures, enabling engineers to optimize layout and cable routing while maintaining proper clearance for wiring and access.
Catalog pages and datasheets for Condulet Form 7, including the 12-page spec guide and industrial-grade data, are available from Eaton. Useful resources include the Form 7 catalog page, the spec guide doc, and UL certification listings, plus installation sheets like IF 863 and related technical bulletins for bend radius and wire fill charts.
