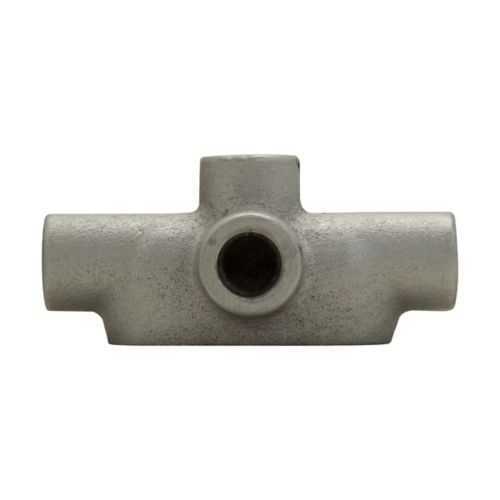

Eaton Crouse-Hinds TA17 Condulet Form 7 Conduit Outlet Body - NEMA 12
Part Number: TA17
Quick Summary
TA17 Condulet Form 7 conduit outlet body by Eaton Crouse-Hinds provides rugged, reliable protection for 1/2" conduit runs in industrial panels and machinery enclosures. Engineers often struggle with enclosure ingress, space constraints, and challenging wire pulls, which this Form 7 body mitigates through thoughtful geometry and sturdy materials. It meets NEC/CEC standards and carries a NEMA 12 rating, making it suitable for ordinary locations while preserving safety and integrity in harsh environments. The TA17 complements other Eaton Crouse-Hinds Form 7 accessories, offers easy installation with available instruction sheets, and supports efficient procurement and maintenance planning for electrical installations.
Product Information
Extended Description
TA17 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, TA shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
TA17
UPC
782274630106
Product Length/Depth
5.63 in
Product Height
2.44 in
Product Width
2.63 in
Product Weight
1.48 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
TA
Trade size
1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Form 7 TA shape and Feraloy iron alloy body deliver robust protection against corrosion and impact, extending service life and reducing maintenance cycles for critical control panels. This means fewer field failures and lower lifecycle costs in industrial environments where abrasion, temperature swings, and dust are common. The 1/2" trade size ensures compatibility with widely used wiring practices, enabling quick wire pulls and simpler gland selection, which translates to faster panel builds and reduced labor hours. With precise Form 7 geometry, installation is straightforward and repeatable, improving panel standardization across multiple machines. Documentation such as IF 863/IF 964 guides streamline commissioning, while the included catalog references help procurement teams source compatible components without surprises. Together, these features support compliance, reduce risk, and optimize total cost of ownership in automation projects.
Get a Quick Quote for a Eaton Crouse-Hinds TA17
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds TA17?
Enquire Now
FAQs
Install TA17 by aligning the conduit outlet body with the panel knockout, securely mounting with the appropriate screws, insert the 1/2" conduit through the body, and tighten seals per the IF 863/IF 964 instruction sheets. Verify enclosure alignment, ensure proper sealing against dust ingress, and complete wiring per NEC/CEC guidelines. Always consult the Form 7 catalog page for mounting patterns and torque recommendations to avoid overtightening and ensure long-term reliability.
Yes. TA17 is designed for ordinary/non-hazardous locations and carries NEC/CEC standards compliance with a NEMA 12 rating, providing durable protection against dust, splash, and light corrosion in typical industrial settings.
TA17 dimensions are 5.63 inches in length, 2.63 inches in width, and 2.44 inches in height, with a product weight of 1.48 pounds. These specifications help confirm fit within tight panels and ensure proper space planning during enclosure design.
Accessible documents include the Form 7 catalog page, Canadian certification reports, and installation sheets IF 863 and IF 964. Also available are the Form 7 industrial-grade conduit bodies specifications and the wire fill chart to assist with conductor planning and compliance during wiring.
TA17 is ideal for control panels, machine enclosures, and junctions requiring 1/2" conduit runs with easy wire pulling. Its Form 7 geometry and durable Feraloy iron alloy construction support reliable service in ordinary locations, minimizing maintenance while ensuring safety and compliance in automation installations.
