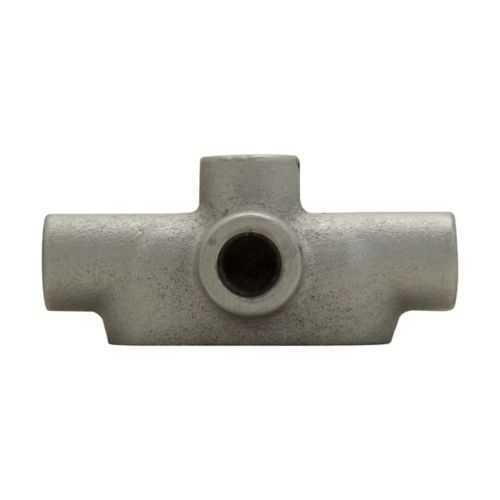

Eaton TA27 Condulet Form 7 - NEMA 12, 3/4 in Trade Size
Part Number: TA27
Quick Summary
TA27 Condulet Form 7 conduit outlet body is a rugged solution for terminating 3/4 inch conduits in industrial wiring. Engineers often struggle to achieve reliable weatherproofing and straightforward pull-in during Form 7 panel assemblies. It carries a NEMA 12 rating with NEC/CEC compliance and recognized Canadian certification, ensuring safe operation in ordinary locations. Secondary benefits include compact TA shape, durable Feraloy iron alloy construction, and a design that supports quick mounting and clean wire pulls. In practice, TA27 delivers lifecycle-cost savings and predictable performance for standard wiring projects while aligning with cross-border regulatory requirements.
Product Information
Extended Description
TA27 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, TA shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
TA27
UPC
782274630205
Product Length/Depth
6.25 in
Product Height
2.63 in
Product Width
2.88 in
Product Weight
2.06 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
TA
Trade size
3/4"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - TA27
Eaton Specification Sheet - TA27
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Feraloy iron alloy construction delivers superior durability in harsh industrial environments. Business impact: this outer shell resists corrosion and mechanical wear, reducing maintenance and unexpected downtime. Application: ideal for TA27 Form 7 conduit bodies handling 3/4 inch conduits in factories, plants, and equipment rooms. Feature: TA shape and compact footprint provide a space-efficient profile for tight panels. Impact: easier wire pulling and faster field assembly. Application: suitable for control cabinets and machine enclosures where space is at a premium. Feature: NEMA 12 rating and ordinary-location suitability shield equipment from dust and moisture indoors. Impact: improves reliability and compliance. Application: use in non-hazardous locations across manufacturing lines with NEC/CEC requirements. Feature: Cross-border certifications and standards alignment streamline procurement for global facilities. Impact: reduces regulatory risk and procurement cycle time. Application: ideal for multinational plants requiring Canadian certification plus NEC/CEC compliance. Feature: Well-defined dimensions and weight enable precise space planning. Impact: predictable fit and easier handling during transport. Application: plan conduit routing in panel interiors and enclosures.
Get a Quick Quote for a Eaton Crouse-Hinds TA27
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds TA27?
Enquire Now
FAQs
TA27 is designed for Form 7 conduit bodies with a 3/4 inch trade size. It provides a robust enclosure using Feraloy iron alloy, meeting NEC/CEC standards and NEMA 12 protection for ordinary locations. For best results, match the catalog number TA27 with compatible Form 7 covers and gaskets, and follow the IF 863 wire pulling guidelines during installation.
The NEMA 12 rating on TA27 indicates protection against dust, falling dirt, and moisture ingress in indoor non-hazardous locations. This translates to improved reliability for panel assemblies, reduced maintenance, and a lower likelihood of moisture-related wiring issues in manufacturing environments that require NEC/CEC compliance.
TA27 is specified for Ordinary/Non-Hazardous Locations, aligning with its NEMA 12 rating. It is not rated for hazardous locations, so for environments with dust-heavy, chemical, or explosive atmospheres you would need Form 7 bodies that carry appropriate hazardous-location certifications and local approvals.
TA27 meets NEC/CEC standards and has Canadian certification, with a NEMA 12 rating for indoor ordinary locations. This combination simplifies cross-border procurement, reduces regulatory risk, and supports compliant installations across North American facilities, including multinational plants that require harmonized compliance in both the U.S. and Canada.
TA27’s durable Feraloy iron alloy construction reduces corrosion-related maintenance, while its precise 3/4 inch trade size and compact TA shape speed installation. Avoid unnecessary field modifications by using the recommended IF 863 wire pulling guidelines and pairing TA27 with compatible Form 7 covers, which minimizes downtime and extends service life in routine panel installations.
