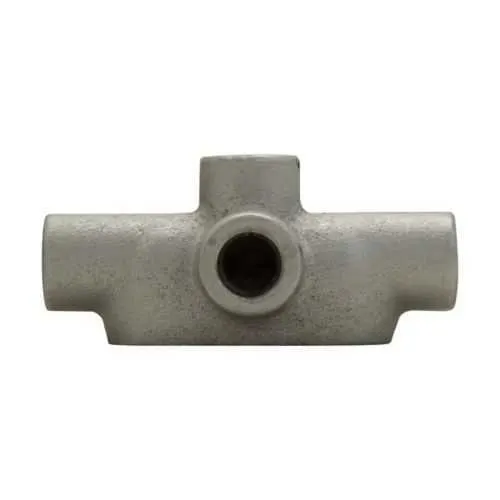

Eaton TA47 Conduit Outlet Body - Form 7 TA, NEMA 12
Part Number: TA47
Quick Summary
TA47 Conduit Outlet Body from Eaton Crouse-Hinds provides rugged Form 7 housing for 1-1/4\" conduit in industrial applications. Engineers often struggle with corrosion resistance, wiring access, and ensuring regulatory compliance in harsh environments. This TA47 is certified for NEMA 12 and NEC/CEC, with ordinary/non-hazardous locations suitable for non-hazardous settings, ensuring reliable field performance. By leveraging Form 7 conduit bodies and Feraloy iron alloy construction, it enables fast, secure assemblies with durable protection for wiring runs. The combination of Form 7 compatibility, 1-1/4\" trade size, and standardized installation reduces field downtime and lifecycle costs, delivering measurable efficiency gains for electrical distribution systems.
Product Information
Extended Description
TA47 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, TA shape, 1-1/4"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
TA47
UPC
782274630403
Product Length/Depth
7.44 in
Product Height
3.19 in
Product Width
3.31 in
Product Weight
3.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
TA
Trade size
1-1/4"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: TA Form 7 TA shape and 1-1/4\" trade size enable versatile routing of cables through constrained spaces, reducing on-site improvisation and accelerating system handoffs. Business impact: faster wiring assemblies translate to shorter project timelines and lower labor costs, especially on multi-panel installations. Application: suitable for control panels, junction boxes, and equipment enclosures where space is at a premium and reliability is essential. \n\nFeature: Feraloy iron alloy construction delivers enhanced corrosion resistance and higher mechanical strength. Business impact: longer service life and reduced maintenance cycles in ordinary locations, improving total cost of ownership. Application: industrial plants, non-hazardous environments, and outdoor installations where environmental exposure is a concern. \n\nFeature: Precise dimensions — 7.44 in length, 3.19 in height, 3.31 in width — and a 3.6 lb weight profile. Business impact: compact footprint supports dense wiring layouts and easier handling by technicians. Application: space-constrained distribution runs where mounting clearance is limited. \n\nFeature: NEMA Rating 12 and NEC/CEC standards compliance ensure regulatory alignment. Business impact: minimizes variance in approvals and reduces inspection time during commissioning. Application: facilities with standard electrical codes, non-hazardous locations, and industrial panels that require proven enclosure protection. \n\nFeature: Rich documentation and installation resources including IF 964 instruction sheets and Form 7 datasheets. Business impact: reduces installation time and mistakes, boosting field productivity. Application: procurement and field service teams that rely on reputable catalogs and manufacturer guidance for Form 7 conduit bodies.
Get a Quick Quote for a Eaton Crouse-Hinds TA47
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds TA47?
Enquire Now
FAQs
TA47 installation should follow Form 7 guidelines and use compatible mounting to enclosures. Refer to IF 964 wire-pulling sheets for proper pull clearances and install sequence. With a 1-1/4" trade size, ensure conduit entries are clean and adapters are used as required. The Feraloy body provides robust protection in ordinary locations, reducing maintenance calls.
Key specs for TA47 include Form 7 TA shape, 1-1/4" trade size, Feraloy iron alloy construction, and dimensions of 7.44 in length, 3.19 in height, and 3.31 in width, with a weight of 3.6 lb. It carries a NEMA 12 rating and NEC/CEC compliance, suitable for ordinary/non-hazardous environments.
TA47 is ideal for industrial control panels, junction boxes, and equipment enclosures requiring Form 7 conduit bodies at a 1-1/4" trade size. Its Feraloy iron alloy and NEMA 12 rating make it well-suited for non-hazardous locations in manufacturing, processing, and assembly lines where reliable wiring access and enclosure protection are critical.
TA47 carries a NEMA 12 rating and NEC/CEC compliance, supporting ordinary/non-hazardous locations. This combination assures compliance with typical industrial electrical codes and enclosure protection standards, helping speed up approvals during commissioning and reducing documentation burden for field teams and inspectors.
TA47 reduces maintenance downtime through durable Feraloy construction and dependable Form 7 performance, which minimizes rework and wire-pulling challenges. Its compact dimensions and documented installation guidance shorten field labor, while compliance with NEC/CEC and NEMA 12 speeds inspection and commissioning, delivering measurable ROI over the life of an installation.
