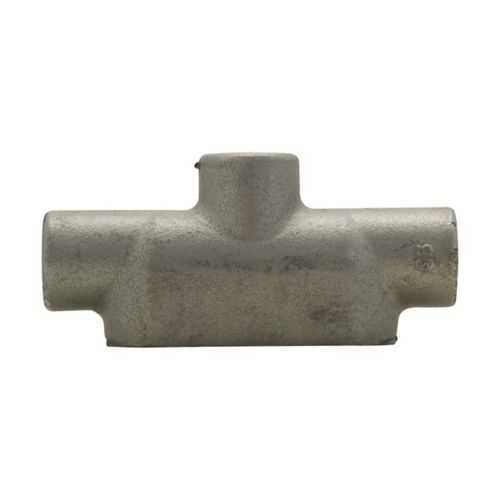

Eaton Crouse-Hinds TB17 Conduit Outlet Body - NEMA 12
Part Number: TB17
Quick Summary
TB17 conduit outlet body enables Form 7 routing for industrial enclosures. Engineers often wrestle with tight panel space and the need for dependable access during wire pulling. This unit carries NEC/CEC compliance, a NEMA 12 rating for ordinary/non-hazardous indoor locations, and rugged Form 7 TB geometry. When integrated into control cabinets and industrial systems, it supports faster installation, easier maintenance, and consistent wire routing across assemblies. Choosing TB17 delivers a standardized, durable solution that reduces rework, delays, and regulatory traceability burdens for procurement teams.
Product Information
Extended Description
TB17 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, TB shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
TB17
UPC
782274630700
Product Length/Depth
5.63 in
Product Height
2.63 in
Product Width
1.56 in
Product Weight
1.3 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
TB
Trade size
1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feraloy iron alloy construction delivers rugged durability and resistance to impact and corrosion, extending service life and reducing replacement costs in demanding industrial environments. The Form 7 TB shape enables smoother wire pulls and easier access in tight panel spaces, accelerating installation and minimizing field labor time. With a 1/2" trade size, TB17 aligns with common conduit runs, improving compatibility across existing panels and reducing part variety. A NEMA 12 rating provides dust and water protection for indoor control cabinets, supporting reliable performance in ordinary locations while simplifying compliance. NEC/CEC standards alignment ensures regulatory conformity and smoother project approvals, complemented by readily available catalogs and installation sheets to streamline procurement and maintenance. Precise dimensions and compact footprint support accurate space planning and consistent fit within crowded enclosures, reducing rework and warranty concerns.
Get a Quick Quote for a Eaton Crouse-Hinds TB17
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds TB17?
Enquire Now
FAQs
When installing TB17, ensure the conduit entry aligns with a 1/2 inch trade size and that the Form 7 TB shape is compatible with the enclosure opening. Refer to IF 863 instructions for wire pulling guidance and confirm the NEMA 12 enclosure rating is appropriate for the environment. Use the supplied catalog page and spec sheets to confirm dimensions and mounting clearances before field assembly.
Yes. TB17 is specified for Ordinary/Non-Hazardous Locations with a NEMA 12 rating, making it suitable for indoor control panels and machine enclosures in non-hazardous environments. It provides dust and moisture protection as part of standard Form 7 conduit bodies, supporting safe and compliant wiring in typical industrial settings.
TB17 adheres to NEC/CEC standards and carries a NEMA 12 rating, ensuring regulatory compliance and appropriate enclosure protection for indoor installations. Canadian certification references are available in the product documentation, and the UPC/ Catalog Number confirms traceability for procurement and quality audits.
TB17 supports standard Form 7 wire pulling in 1/2" trade size conduits. For best results, consult the IF 863 installation sheet and Form 7 specification guide to determine pull length limits, bend radii, and wire fill considerations. Ensure the enclosure provides adequate space and the interior is protected from damage during pulls.
TB17 offers durable Feraloy iron alloy construction that resists wear and corrosion, reducing replacement frequency. Its standard 1/2" size and Form 7 geometry simplify stocking and spares, while NEC/CEC compliance minimizes compliance risk. The combination supports lower lifecycle costs by reducing downtime, rework, and maintenance overhead over the device’s lifetime.
