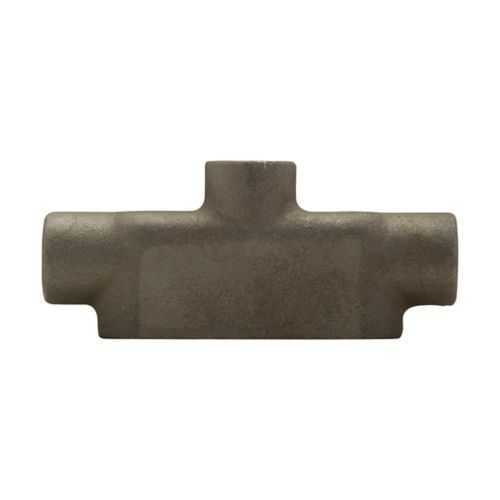

Eaton Crouse-Hinds TB29 Conduit Outlet Body - NEMA 12
Part Number: TB29
Quick Summary
The Eaton Crouse-Hinds TB29 conduit outlet body provides rugged protection for wiring pulls in industrial panels. Engineers often confront difficult wire pulls, misaligned fittings, and space constraints that slow projects and increase downtime. This TB29 part carries a NEMA 12 rating for dust and light exposure and meets NEC/CEC standards, making it suitable for Ordinary/Non-Hazardous Locations. The copper-free aluminum construction reduces weight without compromising durability, while the TB shape and 3/4" trade size support compact routing and straightforward installation. The result is easier field maintenance, faster wiring, and lower total cost of ownership for control panels and industrial equipment.
Product Information
Extended Description
TB29 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, TB shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
TB29
UPC
782274631028
Product Length/Depth
6.56 in
Product Height
2.88 in
Product Width
1.63 in
Product Weight
0.66 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
TB
Trade size
3/4"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - TB29
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Copper-free aluminum construction reduces weight and simplifies handling on site. This lowers labor and shipping costs, accelerates field deployments, and minimizes crane or lift requirements in crowded installations. The TB29’s TB-shaped geometry and 3/4" trade size enable compact routing and easier alignment with standard fittings, reducing misfits and rework. In restricted spaces like compact control cabinets, installers benefit from smoother wire pulls and faster terminations. With precise dimensions—6.56 in length, 2.88 in height, 1.63 in width—and a light 0.66 lb weight—the TB29 delivers predictable enclosure fill and straightforward inventory management. Certified for NEMA 12 and NEC/CEC standards, it supports Ordinary/Non-Hazardous Locations, improving regulatory confidence and facility compliance. Compatibility with Condulet Mark 9 catalogs and Eaton installation resources (IF 863/964) enables faster, more reliable installations.
Get a Quick Quote for a Eaton Crouse-Hinds TB29
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds TB29?
Enquire Now
FAQs
The TB29 is a Condulet Mark 9 conduit outlet body made from copper-free aluminum for 3/4" trade size runs. It terminates and routes conductors from a conduit into an enclosure, providing protected pull points in industrial panels and control cabinets.
Yes. TB29 is part of the Condulet Mark 9 family and is designed to integrate with standard Mark 9 conduit bodies, ensuring consistent mounting, fit, and electrical continuity with other Mark 9 components.
TB29 is made from copper-free aluminum and carries a NEMA 12 rating, suitable for ordinary/non-hazardous locations with dust and light liquid exposure. It complies with NEC/CEC standards for general industrial use.
TB29 measures 6.56 inches in length, 2.88 inches in height, and 1.63 inches in width, with a product weight of 0.66 pounds. These specs support predictable enclosure fill and easy planning for panel layouts.
Resources include the Crouse-Hinds Mark 9 catalog pages, the Eaton TB29 specification sheet, and installation sheets IF 863 and IF 964. These documents provide wiring guidance, bend radii, and wire-pulling instructions for reliable installation.
