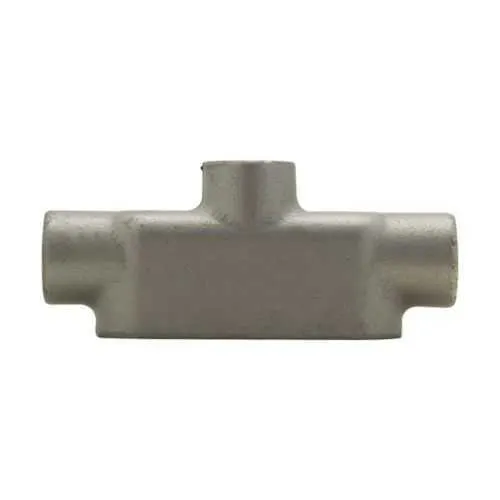

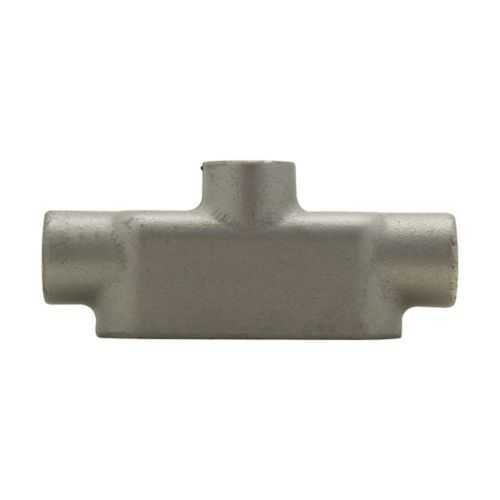

Eaton TB38 Condulet Form 8 Conduit Outlet Body - NEMA 12
Part Number: TB38
Quick Summary
The Eaton TB38 Condulet Form 8 conduit outlet body enables reliable form 8 conduit terminations in industrial control panels. Many projects struggle with difficult wire pulls, corrosion risk, and ensuring code-compliant assemblies in harsh facilities. It carries NEC/CEC standards for ordinary locations and a NEMA 12 rating to protect against dust and splash in indoor environments. Built for compatibility, the TB38 integrates with Condulet Form 8 systems, while its 1 in trade size supports predictable conduit routing. You gain installation efficiency and long-term reliability with its rugged Feraloy construction and straightforward mounting. This translates to faster panel builds, fewer field adjustments, and lower lifecycle costs.
Product Information
Extended Description
TB38 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body, Feraloy iron alloy, TB shape, 1"
Product Name
Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body
Catalog Number
TB38
UPC
782274631202
Product Length/Depth
7.31 in
Product Height
3.13 in
Product Width
1.75 in
Product Weight
2.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
TB
Trade size
1"
Material
Feraloy iron alloy
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Form 8 Conduit Outlet Bodies UL certification
Condulet Form 8 Conduit Outlet Bodies UL certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - TB38
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: 1 in trade size TB38 supports standard conduit runs, allowing quick design and consistent junction layouts. Business Impact: reduces custom fabrication, speeds procurement, and minimizes field errors. Application: ideal for control panels and equipment enclosures where Form 8 terminations are common. Feature: Feraloy iron alloy construction provides rugged durability in demanding environments. Business Impact: improved corrosion resistance and longer service life, lowering maintenance costs. Application: indoor and semi-indoor processes with dust or splash exposure. Feature: NEMA 12 rating delivers protection against dust and water spray for indoor locations. Business Impact: enhanced equipment protection and compliance, reducing downtime. Application: manufacturing floors and electrical closets. Feature: NEC/CEC compliance confirms adherence to national electrical codes. Business Impact: faster inspections and easier cross-border procurement. Application: industrial facilities in North America. Feature: Compact footprint with defined dimensions (7.31 in L x 3.13 in H x 1.75 in W) and weight of 2.5 lb. Business Impact: space optimization and manageable field installation. Application: retrofit projects and space-constrained panels. Feature: Documentation and compatibility resources including installation instructions IF 964 and the Eaton TB38 specification sheet. Business Impact: reduces wiring errors and accelerates commissioning. Application: project engineers, electricians, and field service teams.
Get a Quick Quote for a Eaton Crouse-Hinds TB38
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds TB38?
Enquire Now
FAQs
Yes. TB38 is a Form 8 conduit outlet body designed for 1 in conduit runs and works with standard Condulet Form 8 accessories and fittings. The 1 in trade size and compatible mounting pattern simplify retrofits and new builds alike.
TB38 measures 7.31 in length, 3.13 in height, and 1.75 in width, with an approximate weight of 2.5 lb. These compact dimensions support tight panel envelopes while providing robust durability for everyday industrial use.
TB38 is rated NEMA 12 for ordinary locations in non-hazardous indoor environments. It is designed for interior panel installations and uses Feraloy iron alloy for structural strength and durability in demanding settings.
TB38 carries NEC/CEC standards compliance and a NEMA 12 rating, indicating suitability for ordinary locations and dust and water spray protection in indoor settings.
Documentation for TB38 includes the Crouse-Hinds Form 8 catalog page, UL certification references, installation instructions IF 964 wire pulling, and the Eaton Specification Sheet TB38 for detailed dimensions and usage guidance.
