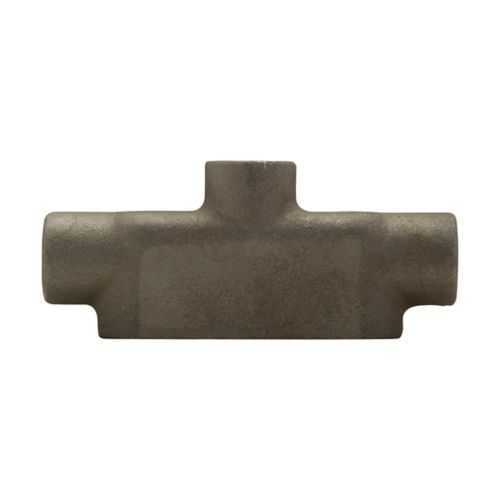

Eaton Crouse-Hinds TB49 Conduit Outlet Body - NEMA 12
Part Number: TB49
Quick Summary
TB49 Conduit outlet body from Eaton Crouse-Hinds provides rugged protection for 1-1/4" conduit terminations in industrial enclosures. In dense panels and harsh environments, unreliable sealing and difficult wire pulls can drive downtime and rework. It carries a NEMA rating of 12, NEC/CEC compliance, and UL certification for US and Canada, giving you confidence across global installations. As a copper-free aluminum TB-shaped solution for Condulet systems, it enables lighter-weight assemblies and easier handling, accelerating installation and reducing total cost for panel builders and equipment integrators.
Product Information
Extended Description
TB49 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, TB shape, 1-1/4"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
TB49
UPC
782274631349
Product Length/Depth
8.5 in
Product Height
3.34 in
Product Width
2.19 in
Product Weight
1.43 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
TB
Trade size
1-1/4"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies UL certification
Condulet Mark 9 Conduit Outlet Bodies UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - TB49
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature Copper-free aluminum TB shape reduces weight → Business Impact Lighter assemblies simplify handling and installation, lowering labor time and fatigue on site → Application Condulet Mark 9 systems in control panels. Feature NEMA 12 rating provides dust and moisture protection → Business Impact Improved enclosure integrity and longer service life, reducing maintenance costs → Application Suitable for Ordinary/Non-Hazardous Locations in industrial settings. Feature NEC/CEC compliance ensures regulatory alignment → Business Impact Smooth project approvals and fewer compliance delays → Application US and Canada installations. Feature 1-1/4" trade size compatibility → Business Impact Standardized parts reduce inventory/sku proliferation → Application Fits common conduit configurations in 1-1/4" TB Condulet tasks. Feature Wire-pulling guidance via IF 863 resources → Business Impact Safer, faster wiring with clear instructions → Application Installation workflows. Feature Availability of catalogs and datasheets → Business Impact Faster procurement and accurate design verification → Application Engineering teams can model and spec confidently.
Get a Quick Quote for a Eaton Crouse-Hinds TB49
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds TB49?
Enquire Now
FAQs
TB49 is a Condulet Mark 9 conduit outlet body designed specifically for 1-1/4" conduit. Its TB shape and copper-free aluminum construction provide a reliable, lightweight fit, enabling straightforward installation in standard Condulet assemblies without requiring adapters.
TB49 carries a NEMA 12 rating, NEC/CEC compliance, and UL certification for both the United States and Canada, ensuring regulatory conformity and dependable performance in common industrial environments.
Yes. TB49 is listed for Ordinary/Non-Hazardous Locations, which aligns with typical factory floors, control rooms, and panel enclosures without specialized explosion protection requirements.
The TB49 product pages provide installation guidance, including IF 863 wire pulling instructions, plus datasheets and catalog pages to support safe, efficient conduit work and proper wire management.
TB49 uses copper-free aluminum, delivering a lighter weight compared to traditional metallic bodies. This reduces overall panel weight, simplifies handling during installation, and can lower freight and labor costs on large projects.
