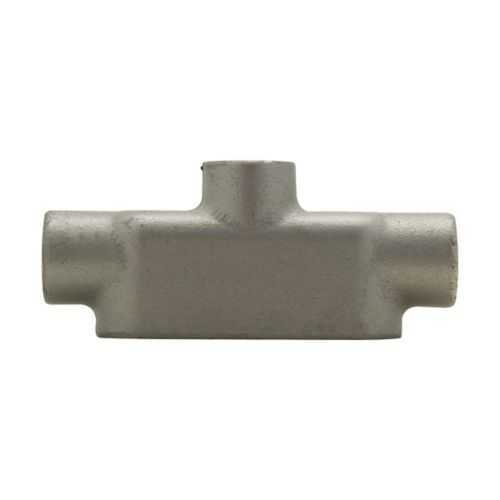

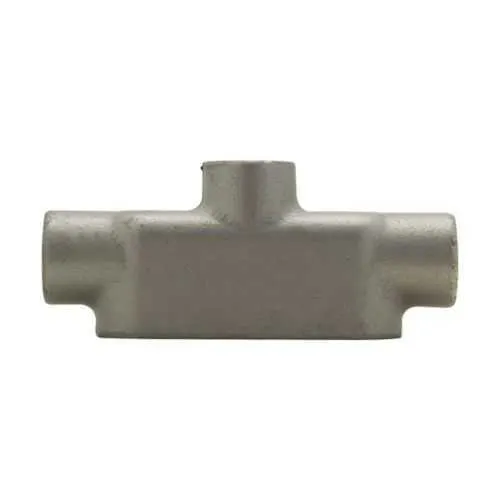

Eaton TB58 Condulet Form 8 Outlet Body - NEMA 12 Certified
Part Number: TB58
Quick Summary
TB58 Condulet Form 8 conduit outlet body terminates 1-1/2" conduits in industrial electrical installations. Installing reliable conduit terminations in busy facilities can be challenging due to misalignment and limited protection in crowded enclosures. This form 8 body carries NEC/CEC compliance, UL certification, and a NEMA 12 rating, ensuring safe operation in ordinary or non-hazardous locations. With the durable Feraloy iron alloy and robust TB shape, field mounting remains straightforward, and replacement cycles are reduced. By selecting a proven Eaton/Crouse-Hinds solution, engineers can streamline panel design, lower installation time, and improve long-term reliability across critical automation equipment.
Product Information
Extended Description
TB58 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body, Feraloy iron alloy, TB shape, 1-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body
Catalog Number
TB58
UPC
782274631509
Product Length/Depth
10.38 in
Product Height
4.03 in
Product Width
2.75 in
Product Weight
5.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
TB
Trade size
1-1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Form 8 Conduit Outlet Bodies UL certification
Condulet Form 8 Conduit Outlet Bodies UL certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - TB58
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Material and construction are designed for harsh industrial environments; Feraloy iron alloy provides superior strength and corrosion resistance, which translates to lower maintenance costs and fewer field failures in steel enclosures. This means fewer shutdowns and a faster return to production for high-demand lines. The TB form 8 geometry and 1-1/2" trade size deliver standardized conduit terminations that integrate seamlessly with the Condulet family, reducing design complexity and enabling quicker panel assemblies in control cabinets. Dimensions and weight—10.38 in length, 4.03 in height, 2.75 in width, and 5.2 lb—facilitate accurate space planning and safer handling during installation, improving on-site efficiency and worker safety. Certifications including NEMA 12, NEC/CEC compliance, and UL listing ensure design confidence and regulatory alignment across regional projects. Availability of installation guides and technical bulletins supports faster commissioning and consistent field practices, lowering total cost of ownership. The product's ordinary/non-hazardous location rating makes it a dependable choice for indoor industrial environments where reliability and compliance matter most.
Get a Quick Quote for a Eaton Crouse-Hinds TB58
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds TB58?
Enquire Now
FAQs
Begin by verifying compatibility with a 1-1/2" trade size Condulet Form 8. Mount the outlet body to the enclosure using the appropriate mounting holes, then install locking rings or covers as specified. Connect the conduit and seal per the IF 964 instruction sheet to ensure proper wire pulling and weather sealing in ordinary locations. Refer to the Crouse-Hinds catalog pages for the exact hardware sequence and torque recommendations, and consult the bend radius and cubic capacity charts to avoid overfill in tight spaces.
TB58 is constructed from Feraloy iron alloy for high strength and durability. It has a trade size of 1-1/2", overall length 10.38 in, height 4.03 in, width 2.75 in, and weighs 5.2 lb. The product is rated for NEMA 12 and adheres to NEC/CEC standards, with UL certification supporting compliance for industrial installations in ordinary locations.
TB58 is specified for Ordinary/Non-Hazardous Locations with a NEMA 12 rating. It is not intended for hazardous or extreme outdoor environments without additional protective enclosures. For outdoor use or hazardous areas, select alternative enclosures or corrosion-protected variants that meet required IP or NEMA ratings and regulatory approvals.
TB58 carries NEC/CEC standards compliance and a NEMA 12 rating, with UL certification for Condulet Form 8 conduit outlet bodies. This combination supports compliance in industrial control panels and equipment within non-hazardous environments, simplifying procurement for regulated projects and audits.
Downloadable resources include the Form 8 and Mark 9 catalog page, UL certification pages, IF 964 wire-pulling instruction, and Eaton specification sheets (TB58). Additional references cover bend radius and cubic capacity charts to assist design and prevent overfill, ensuring faster commissioning and reduced field downtime.
