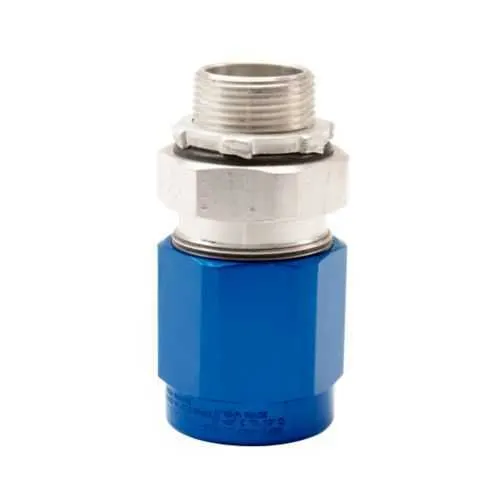

Eaton Crouse-Hinds TMC3-150-1-NP Cable Gland - IP66
Part Number: TMC3-150-1-NP
Quick Summary
The Eaton Crouse-Hinds TMC3 cable gland provides rugged termination for armored and non-armored MC cables in industrial installations. Users often battle moisture ingress, vibration, and incomplete seals that compromise equipment uptime and safety. This gland carries ATEX/IECEx certification alongside NEC/CEC compliance and notable IP66 and NEMA 4X ratings, reinforcing reliability in harsh environments. Designed for hazardous locations, it supports a broad range of cables while delivering straightforward installation, helping reduce field mistakes and project lead times. In short, it combines robust protection with practical compatibility to drive lower lifecycle costs and safer, compliant terminations for your electrical infrastructure.
Product Information
Extended Description
TMC3-150-1-NP Eaton Crouse-Hinds: Eaton Crouse-Hinds series TMC3 cable gland, 1.280" - 1.610" armor min./max., 1.380" - 1.780" cable range min./max., Armoured and non-armoured, Nickel-plated brass, 1.380" - 1.780" outer sheath min./max., Industrial protection, 1-1/2" NPT
Product Name
Eaton Crouse-Hinds series TMC3 cable gland
Catalog Number
TMC3-150-1-NP
UPC
662277130134
Product Length/Depth
6.03 in
Product Height
2.75 in
Product Width
2.75 in
Product Weight
3.89 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Protection type
Industrial
Gland type
Armoured and non-armoured
Cable type
MC MC-HL TECK TC TC-ER TC-ER-HL ITC ITC-ER ITC-HL PLTC PLTC-ER ACIC
Material
Nickel-plated brass
Thread Size
1-1/2"
Thread type
NPT
Armor (min/max)
1.280" - 1.610"
Cable range (min/max)
1.380" - 1.780"
Outer sheath (min/max)
1.380" - 1.780"
Crouse-Hinds series TMC3 Armored Gland brochure
Crouse-Hinds series TMC3 Armored and Non-armored Cable Glands catalog page
TMC3 Armored Gland ATEX/IECEx certification
TMC3 Armored Gland ATEX/IECEx certification
TMC3 Armored Gland ATEX/IECEx certification
TMC3 Armored Gland ATEX/IECEx certification
TMC3 Armored Gland ATEX/IECEx certification
IF 1890 - TMC3 Cable Gland
Feature → Business Impact → Application: Armor and cable range compatibility: Armor 1.280" - 1.610" and cable range 1.380" - 1.780" enable use with MC, MC-HL, TECK, TC, TC-ER, TC-ER-HL, ITC, ITC-ER, ITC-HL, PLTC, PLTC-ER, and ACIC variants, reducing parts variety and stockholding while ensuring reliable seals in diverse installations. Application: control panels, process skids, and outdoor enclosures where cable diversity is common. Feature → Business Impact → Application: Nickel-plated brass material provides corrosion resistance and durable sealing in chemical and humid environments, lowering maintenance cycles and extending service life. Applications: refinery, wastewater, and mining facilities where aggressive atmospheres are expected. Feature → Business Impact → Application: 1-1/2" NPT thread size delivers standard, widely compatible connections that fit common conduit and enclosure interfaces, accelerating field terminations and enabling plug-and-play upgrades. Applications: retrofit projects and new builds across industrial plants. Feature → Business Impact → Application: IP66 ingress protection and NEMA 4X compatibility guard against dust, water jets, and harsh washdowns, reducing gasket failure risk and unplanned downtime. Applications: food processing, textile mills, and outdoor equipment housings requiring rugged protection. Feature → Business Impact → Application: NEC/CEC and IECEx/ATEX certifications, plus area classification for Hazardous/Classified Locations, ensure regulatory compliance and safer operation in explosive or dust-laden environments. Applications: petrochemical plants, offshore platforms, and chemical processing facilities. Feature → Business Impact → Application: Broad gland and gland-to-cable compatibility simplifies procurement and installation planning, minimizes contamination risk, and supports faster commissioning. Applications: panel builders and system integrators delivering time-critical electrical installations.
Get a Quick Quote for a Eaton Crouse-Hinds TMC3-150-1-NP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds TMC3-150-1-NP?
Enquire Now
FAQs
Begin by selecting the correct armor and cable ranges (1.280"–1.610" armor, 1.380"–1.780" cable). Slip the gland over the cable, align with the enclosure opening, and thread securely onto a 1-1/2" NPT port. Tighten to the manufacturer’s torque spec, ensure the gasket seats, and perform a basic ingress test. This approach minimizes leaks and ensures a durable, code-compliant termination.
Yes. The TMC3-150-1-NP carries NEC/CEC and IECEx/ATEX certification and is rated for hazardous/classified locations. Its IP66 protection and NEMA 4X enclosure compatibility provide additional safety margins in explosive or dust-prone environments, helping plants meet stringent regulatory requirements while maintaining uptime.
The gland supports MC, MC-HL, TECK, TC, TC-ER, TC-ER-HL, ITC, ITC-ER, ITC-HL, PLTC, PLTC-ER, and ACIC cables. This broad compatibility reduces part variants, simplifies sourcing, and enables streamlined installation across mixed cabling strategies in industrial facilities.
The TMC3-150-1-NP provides IP66 ingress protection and is compatible with NEMA 4X enclosures. It is designed for industrial protection against dust, water jets, and harsh washdowns, making it suitable for outdoor installations and washdown areas in chemical plants, aviation, and heavy manufacturing.
By reducing sealing failures and expanding cable compatibility, the gland lowers routine maintenance costs and minimizes unplanned downtime. Its corrosion-resistant nickel-plated brass construction and proven certifications help ensure long service life in challenging environments, delivering lower lifecycle costs for panel builders and end users.
