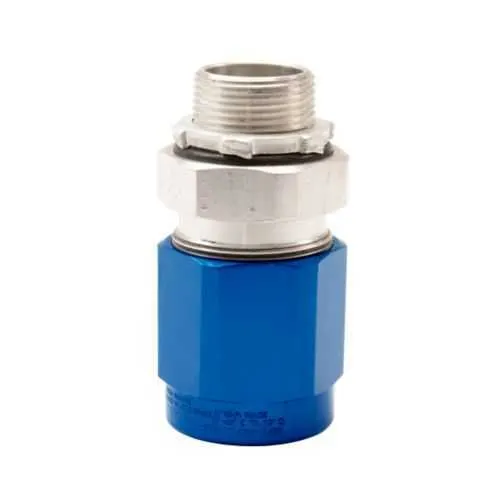

Eaton Crouse-Hinds TMC3-150-2-NP Cable Gland - IP66
Part Number: TMC3-150-2-NP
Quick Summary
The Eaton Crouse-Hinds TMC3 cable gland provides rugged sealing for armored and non-armored MC cables used in harsh industrial environments. Engineers often struggle with ingress protection and mounting compatibility in hazardous locations, leading to costly rework and downtime. It carries NEC/CEC IECEx/ATEX standards, IP66 protection, and a NEMA 4X rating to support compliance across environments. Designed for reliable installation and long service life, it also supports quick assembly with a 1-1/2 inch NPT thread and broad armor/cable type compatibility, driving installation efficiency and reducing total cost of ownership for industrial facilities.
Product Information
Extended Description
TMC3-150-2-NP Eaton Crouse-Hinds: Eaton Crouse-Hinds series TMC3 cable gland, 1.520" - 2.060" armor min./max., 1.630" - 2.310" cable range min./max., Armoured and non-armoured, Nickel-plated brass, 1.630" - 2.310" outer sheath min./max., Industrial protection, 1-1/2" NPT
Product Name
Eaton Crouse-Hinds series TMC3 cable gland
Catalog Number
TMC3-150-2-NP
UPC
662277130141
Product Length/Depth
6.17 in
Product Height
3.5 in
Product Width
3.5 in
Product Weight
7.58 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Protection type
Industrial
Gland type
Armoured and non-armoured
Cable type
MC MC-HL TECK TC TC-ER TC-ER-HL ITC ITC-ER ITC-HL PLTC PLTC-ER ACIC
Material
Nickel-plated brass
Thread Size
1-1/2"
Thread type
NPT
Armor (min/max)
1.520" - 2.060"
Cable range (min/max)
1.630" - 2.310"
Outer sheath (min/max)
1.630" - 2.310"
Crouse-Hinds series TMC3 Armored Gland brochure
Crouse-Hinds series TMC3 Armored and Non-armored Cable Glands catalog page
TMC3 Armored Gland UL certification (Zones)
TMC3 Armored Gland UL certification (Zones)
TMC3 Armored Gland UL certification (Zones)
TMC3 Armored Gland UL certification (Zones)
TMC3 Armored Gland UL certification (Zones)
IF 1890 - TMC3 Cable Gland
Feature → Business Impact → Application: Nickel-plated brass construction provides strong corrosion resistance in outdoor and chemical environments, extending service life and reducing maintenance intervals for process plants and outdoors enclosures. This improves equipment uptime and lowers lifecycle costs for industrial facilities. Feature → Armor and cable range compatibility (Armor 1.520"–2.060", Cable 1.630"–2.310") enables a single gland to accommodate multiple MC cable configurations, reducing SKU proliferation and simplifying procurement for control panels and machine builds. Feature → 1-1/2" NPT thread size simplifies mounting into pre-drilled enclosures, enabling faster commissioning and consistent sealing across equipment lines. Feature → IP66 and NEMA 4X ratings deliver robust ingress protection against dust and water, ensuring reliable operation in washdown areas, outdoors, and high-vibration environments. Feature → Armoured and non-armoured gland capability provides versatile installation options, supporting a wide range of cable types (MC, MC-HL, TECK, TC, ITC, PLTC, ACIC) without special adapters, saving time during installation and maintenance. Feature → NEC/CEC IECEx/ATEX certification and hazardous locations ratings help pass regulatory audits, minimize risk, and shorten project timelines in oil & gas, chemical, and mining sectors.
Get a Quick Quote for a Eaton Crouse-Hinds TMC3-150-2-NP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds TMC3-150-2-NP?
Enquire Now
FAQs
The gland is designed for 1-1/2" NPT entry into enclosures and supports armored and non-armoured MC cables within a broad range (1.630"–2.310" outer sheath and 1.520"–2.060" armor). It suits industrial control panels, junction boxes, and outdoor equipment in hazardous locations, reducing the need for multiple gland sizes.
Key specs include nickel-plated brass construction, 1-1/2" NPT thread, armor range 1.520"–2.060", cable range 1.630"–2.310", IP66 ingress protection, and NEMA 4X rating. It supports a variety of cable types (MC, MC-HL, TECK, TC, ITC, PLTC, ACIC) in both armored and non-armored configurations.
Yes. The gland is certified for Hazardous/Classified Locations with NEC/CEC IECEx/ATEX standards, and it carries a NEMA 4X rating along with IP66 protection, making it suitable for environments such as chemical plants, refineries, and mining sites.
It provides a robust seal with a common 1-1/2" NPT entry, accommodates both armored and non-armored cables, and offers high ingress protection, reducing ingress risk during washdowns and outdoor exposure. This translates to shorter commissioning times and fewer field modifications.
The nickel-plated brass body, IP66/NEMA 4X protection, and versatile cable compatibility lower maintenance costs, minimize ducting/adapters, and extend service life in harsh environments. Fewer replacements and faster installer turnaround contribute to faster project completion and reduced downtime.
