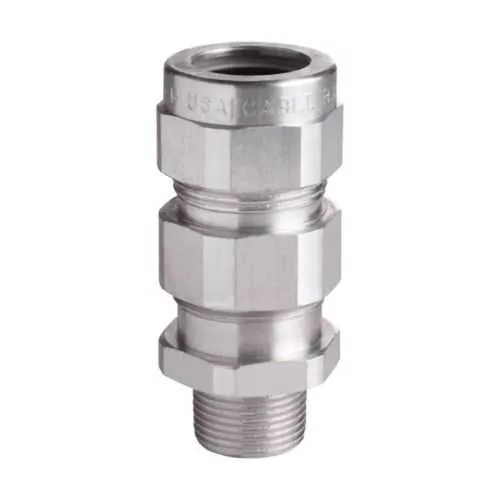

Eaton Crouse-Hinds TMC9352 Cable Gland - Armoured
Part Number: TMC9352
Quick Summary
The TMC9352 cable gland from Eaton Crouse-Hinds provides secure sealing for metal-clad electrical installations in harsh industrial environments. Engineers often struggle with intrusion risks and time-consuming assembly when cabling armored systems. This design meets NEC/CEC requirements, carries a NEMA 4 rating, and is suitable for ordinary/non-hazardous locations, reducing compliance headaches. With an aluminum body and armored gland construction, it delivers lightweight installation, corrosion resistance, and long-term cost savings for panel builders and integrators.
Product Information
Extended Description
TMC9352 Eaton Crouse-Hinds: Eaton Crouse-Hinds series TMC cable gland, Metal-clad, TECK corrugated or interlocked steel, or aluminum, Armoured, Aluminum, Outer sheath: 3.02-3.78", General purpose, 3-1/2" NPT, Armor range: 2.95-3.52"
Product Name
Eaton Crouse-Hinds series TMC cable gland
Catalog Number
TMC9352
UPC
782274414638
Product Length/Depth
7.01 in
Product Height
5.38 in
Product Width
5.38 in
Product Weight
5.15 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Protection type
General purpose
Cable type
Metal-clad, TECK corrugated or interlocked steel, or aluminum
Gland type
Armoured
Material
Aluminum
Thread Size
3-1/2"
Thread type
NPT
Armor (min/max)
2.95-3.52"
Outer sheath (min/max)
3.02-3.78"
Crouse-Hinds series TMC catalog page
TMC Armoured Gland UL certification
IF 1183 - Terminator Cable Fittings
Eaton Specification Sheet - TMC9352
Aluminum construction reduces weight and simplifies handling during field installs, accelerating throughput and reducing fatigue for technicians on demanding sites. Armoured gland design delivers a robust seal for metal-clad cables, enhancing reliability and protecting sensitive terminations in dusty or humid environments, which translates to lower maintenance costs and less downtime in automation panels. The 3-1/2 inch NPT thread aligns with standard conduit fittings, enabling quick, secure connections and reducing the need for specialty accessories in control rooms and machinery floors. Armor range of 2.95 to 3.52 inches and outer sheath range of 3.02 to 3.78 inches ensure a precise fit for TECK corrugated or interlocked steel, or aluminum armor, minimizing rework and field adjustments. NEC/CEC compatibility and NEMA 4 rating provide regulatory assurance and weather/dust resistance for ordinary locations, supporting safer, compliant installations. Availability of installation sheets and catalog references enhances on-site deployment, reducing installation errors and accelerating project completion.
Get a Quick Quote for a Eaton Crouse-Hinds TMC9352
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds TMC9352?
Enquire Now
FAQs
The TMC9352 is designed for ordinary/non-hazardous locations and supports metal-clad, TECK corrugated or interlocked steel, or aluminum armor. Its 3-1/2" NPT thread and aluminum construction make it ideal for automation panels, junction boxes, and other control enclosures where a robust, compliant gland is required and space or weight is at a premium.
The 3-1/2" NPT thread matches standard conduit fittings common in industrial facilities, enabling quick, secure sealing without adapters. This reduces installation time, lowers accessory costs, and minimizes potential leak paths at the cable entry, improving long-term reliability in metal-clad systems.
Yes. The gland is specifically rated as an armored gland with aluminum construction and is compatible with metal-clad cables using TECK corrugated or interlocked steel, or aluminum armor. This makes it well-suited for automation panels where lightweight components and durable seals are essential for longevity and ease of maintenance.
The TMC9352 adheres to NEC/CEC standards and carries a NEMA 4 rating for weather and dust resistance. It is intended for Ordinary/Non-Hazardous Locations, providing regulatory confidence for industrial environments and simplifying compliance during audits and inspections. UL certification for the armoured gland is referenced in available documentation.
Use the 3-1/2" NPT thread with compatible conduit fittings, verify armor diameter matches the 2.95-3.52" range, and ensure the outer sheath aligns within 3.02-3.78". Consult IF 1183 installation sheets and the catalog page for proper torque, sealing compounds if required, and step-by-step assembly to minimize rework and maximize panel uptime.
