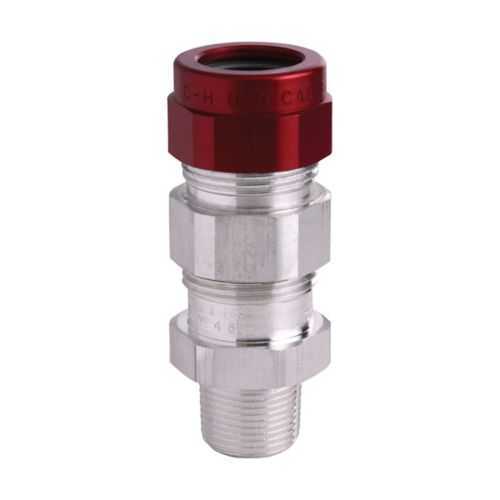

Eaton Crouse-Hinds TMCX165 Cable Gland - Explosion-Proof
Part Number: TMCX165
Quick Summary
The TMCX165 cable gland from Eaton Crouse-Hinds seals TECK-armoured and tray cables in hazardous locations. Installing cable entries in such environments often stalls projects due to protection gaps and compliance risk. It carries NEC/CEC certifications, including Class I, Division 1; Class II, Division 1; Class III, and a NEMA 4 rating, ensuring rugged performance in demanding zones. By combining certified protection with straightforward installation, it supports reliable operations, faster commissioning, and lower lifecycle costs for industrial control panels and field junctions.
Product Information
Extended Description
TMCX165 Eaton Crouse-Hinds: Eaton Crouse-Hinds series TMCX cable gland,Metal-cladcorrugated,TECK armoured and tray cable,Armoured barrier and non-armoured barrier, Aluminum, Outer Sheath:0.49-0.78", 1/2" NPT,Armor Range:0.44-0.65"
Product Name
Eaton Crouse-Hinds series TMCX cable gland
Catalog Number
TMCX165
UPC
782274414669
Product Length/Depth
3.38 in
Product Height
1.38 in
Product Width
1.38 in
Product Weight
0.08 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4
Protection type
Explosion-proof
Cable type
Metal-clad with interlocked or continuously welded corrugated armoured TECK armoured Tray cable
Gland type
Armoured Barrier and Non-armoured Barrier
Material
Aluminum
Thread Size
1/2"
Thread type
NPT
Armor (min/max)
0.44-0.65"
Outer sheath (min/max)
0.49-0.78"
Crouse-Hinds series TMCX catalog page
TMCX Explosionproof Armoured Barrier Gland UL certification
IF 1184 - TMCX Terminator Cable Fittings
Eaton Specification Sheet - TMCX165
Feature: Aluminum body provides corrosion resistance and lightweight handling. Business Impact: Reduces install time and handling risks while maintaining structural integrity in harsh environments. Application: Ideal for control panels and enclosures in steel plants and chemical facilities. Feature: Explosion-proof protection type ensures safe operation in hazardous locations. Business Impact: Helps meet NEC/CEC requirements and reduces the risk of ignition in Class I, II, and III areas. Application: Suitable for oil and gas processing and pharmaceutical plants where safety compliance is non-negotiable. Feature: Armor options include Armoured Barrier and Non-armoured Barrier configurations. Business Impact: Offers installation flexibility and reduces inventory when switching between cable armour types. Application: Supports both TECK armoured and tray cables with a single gland family. Feature: Cable type compatibility covers metal-clad with interlocked or welded corrugated armour TECK armour and tray cables. Business Impact: Expands compatibility, lowering integration costs and parts variety. Application: Simplifies sourcing for mixed cable inventories. Feature: Thread size and material specify 1/2" NPT aluminum construction. Business Impact: Standardized fittings simplify field assembly, accelerate wiring, and improve leak-tight integrity. Application: Fits common conduit systems in industrial environments. Feature: Armor and outer sheath ranges (0.44–0.65" armor; 0.49–0.78" sheath) ensure precise fit. Business Impact: Reduces seal failures and rework, improving uptime. Application: Critical in high-vibration or outdoor installations. Feature: Certifications and compliance (NEC/CEC, NEMA 4). Business Impact: Streamlines procurement and validation for hazardous-location projects. Application: Supports audits, installation approvals, and safety documentation.
Get a Quick Quote for a Eaton Crouse-Hinds TMCX165
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds TMCX165?
Enquire Now
FAQs
When installing the TMCX165 in hazardous locations, ensure proper enclosure integrity by using the 1/2 inch NPT thread with a compatible sealing gasket. Verify that the cable armour and outer sheath dimensions fall within the 0.44–0.65 in and 0.49–0.78 in ranges, respectively. Follow NEC/CEC guidelines and complete all required certification documentation for traceability.
TMCX165 carries NEC/CEC compliance and hazardous location ratings including Class I, Division 1; Class II, Division 1; Class III, along with a NEMA 4 rating. These certifications validate its suitability for explosive atmospheres, wet environments, and rugged installations, reducing regulatory risk and supporting safer, longer-lasting systems.
Yes. The TMCX165 is designed for metal-clad TECK armoured and tray cables with interlocked or continuously welded corrugated armour. It offers armoured barrier and non-armoured barrier configurations, enabling flexible field installations without requiring additional gland types.
TMCX165 features a 1/2" NPT thread size and an aluminum body designed to fit armor 0.44–0.65 inches and outer sheath 0.49–0.78 inches. Its compact footprint (3.38 in length, 1.38 in height and width) supports tight panel geometries while maintaining robust sealing.
The gland’s explosion-proof construction, barrier options, and precise fit reduce seal failures and ingress risks, lowering maintenance costs. Certifications simplify compliance documentation, accelerate audits, and shorten commissioning times, delivering predictable uptime and a lower total cost of ownership in hazardous-location facilities.
