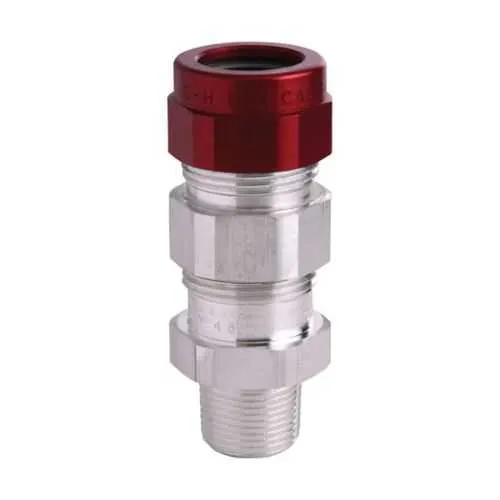

Eaton TMCX3112 Cable Gland - Explosion-Proof HazLoc
Part Number: TMCX3112
Quick Summary
Cable gland solutions like the TMCX3112 protect armored tray cables in hazardous industrial enclosures. This gland delivers explosion-proof protection for TECK armoured tray cables, reducing entry of dust, moisture, and explosive atmospheres in demanding environments. This addresses downtime and maintenance challenges caused by corroded fittings or improper sealing in Class I, Division 1 or Class II, Division 1 locations. With NEC/CEC compliance and a NEMA 4 rating, it supports safe operation across harsh environments while meeting rigorous electrical codes. By combining rugged aluminum construction with precise thread sizing and armor compatibility, this gland improves installation speed and long-term reliability, delivering value through reduced service calls and extended service life.
Product Information
Extended Description
TMCX3112 Eaton Crouse-Hinds: Eaton Crouse-Hinds series TMCX cable gland,Metal-cladcorrugated,TECK armoured and tray cable,Armoured barrier and non-armoured barrier, Aluminum, Outer Sheath:0.85-1.31", 1" NPT,Armor Range:0.80-1.12"
Product Name
Eaton Crouse-Hinds series TMCX cable gland
Catalog Number
TMCX3112
UPC
782274414683
Product Length/Depth
4.07 in
Product Height
2 in
Product Width
2 in
Product Weight
0.68 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4
Protection type
Explosion-proof
Cable type
Tray cable TECK armoured Metal-clad with interlocked or continuously welded corrugated armoured
Gland type
Armoured Barrier and Non-armoured Barrier
Material
Aluminum
Thread Size
1"
Thread type
NPT
Armor (min/max)
0.80-1.12"
Outer sheath (min/max)
0.85-1.31"
Crouse-Hinds series TMCX catalog page
TMCX Explosionproof Armoured Barrier Gland UL certification
IF 1184 - TMCX Terminator Cable Fittings
Eaton Specification Sheet - TMCX3112
Feature: Armoured barrier and non-armoured barrier gland options provide versatile sealing for both shielded and unshielded cable entries. Business Impact: Reduces inventory complexity and simplifies field retrofits, avoiding the need for separate glands. Application: TECK armoured tray cables in hazardous locations such as chemical plants and refineries can be sealed with confidence. Feature: Aluminum construction lowers weight while resisting corrosion, aiding ease of handling and reducing fatigue during installation. Business Impact: Improves installer productivity and enclosure integrity, particularly in tight spaces. Application: Favorable for overhead or vertical installations where weight matters. Feature: 1" NPT thread size and compatible threading simplify mounting with standard conduit fittings. Business Impact: Shortens commissioning time and minimizes field adaptation costs. Application: Broad compatibility with common electrical fittings in control panels and junctions. Feature: Armor range and outer sheath compatibility (0.80-1.12" and 0.85-1.31") ensure a snug, reliable seal. Business Impact: Reduces leak paths and maintenance cycles, supporting longer service life. Application: Works with TECK armoured and metal-clad tray cables in dynamic industrial environments. Feature: Explosion-proof protection and hazardous-location ratings. Business Impact: Supports regulatory compliance and safer operation, mitigating risk in volatile environments. Application: Essential for oil & gas, chemical processing, and fuel infrastructure facilities. Feature: UL certification, installation instructions, and spec sheet availability streamline procurement and field setup. Business Impact: Improves reliability of installation documentation and reduces misapplication risk. Application: Accessible through Eaton/UL resources for quick reference during project planning and commissioning.
Get a Quick Quote for a Eaton Crouse-Hinds TMCX3112
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds TMCX3112?
Enquire Now
FAQs
The TMCX3112 is designed for use on TECK armoured tray cables in hazardous/classified locations. Plan for a 1" NPT gland interface, ensure armor and outer sheath ranges (0.80-1.12" and 0.85-1.31") match the cable, and follow IF 1184 installation guidelines to maintain explosion-proof integrity and NEC/CEC compliance.
TMCX3112 supports NEC/CEC standards with Hazardous/Classified Locations ratings and a NEC hazardous rating of Class I, Division 1; Class II, Division 1; Class III, plus a NEMA 4 enclosure rating. This combination ensures regulatory compliance and suitable performance in demanding environments.
Yes. The gland is specifically rated for TECK armoured tray cables and uses a 1" NPT thread size, enabling straightforward integration with standard conduit fittings and enclosure entries commonly found in industrial control panels and hazardous-area installations.
Key dimensions are 4.07 in in length, 2 in height, and 2 in width, with a weight of 0.68 lb. The thread size is 1", and the outer sheath and armor ranges are 0.85-1.31" and 0.80-1.12" respectively, supporting precise fit and efficient installation.
By providing explosion-proof sealing with armoured and non-armoured barrier options, the TMCX3112 reduces leakage risk and improves reliability. Its NEC/CEC and NEMA 4 compliance minimize compliance-driven downtime, while the aluminum construction lowers weight for easier handling, reducing installation time and long-term maintenance costs.
