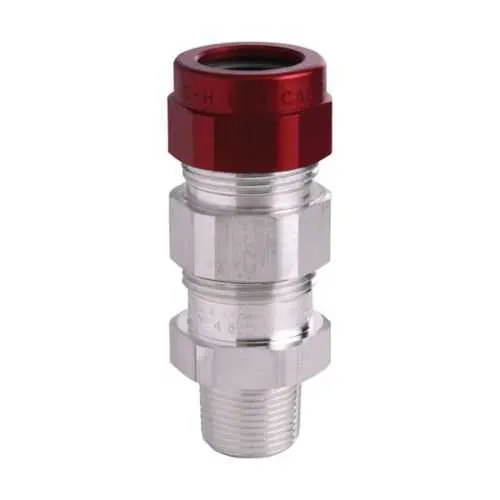

Eaton Crouse-Hinds TMCX5161 Cable Gland - Explosion-Proof
Part Number: TMCX5161
Quick Summary
TMCX5161 cable gland is a rugged, explosion-proof fitting designed for TECK armoured and tray cables in hazardous locations. In demanding environments, improper gland selection and poor sealing can lead to downtime and non-compliance. It carries NEC/CEC compliance with Class I, Division 1 ratings, Class II, Division 1, Class III, plus NEMA 4 protection, providing certified safety and reliability. The aluminum construction, 1-1/2 in NPT thread, and barrier options deliver a robust, easy-to-install solution that reduces maintenance costs and procurement complexity for industrial facilities working with TECK armoured cabling.
Product Information
Extended Description
TMCX5161 Eaton Crouse-Hinds: Eaton Crouse-Hinds series TMCX cable gland,Metal-cladcorrugated,TECK armoured and tray cable,Armoured barrier and non-armoured barrier, Aluminum, Outer Sheath:1.38-1.78", 1-1/2" NPT,Armor Range:1.33-1.61"
Product Name
Eaton Crouse-Hinds series TMCX cable gland
Catalog Number
TMCX5161
UPC
782274414713
Product Length/Depth
4.35 in
Product Height
2.75 in
Product Width
2.75 in
Product Weight
1.3 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4
Protection type
Explosion-proof
Cable type
TECK armoured Tray cable Metal-clad with interlocked or continuously welded corrugated armoured
Gland type
Armoured Barrier and Non-armoured Barrier
Material
Aluminum
Thread Size
1-1/2"
Thread type
NPT
Armor (min/max)
1.33-1.61"
Outer sheath (min/max)
1.38-1.78"
Crouse-Hinds series TMCX catalog page
TMCX Explosionproof Armoured Barrier Gland UL certification
IF 1184 - TMCX Terminator Cable Fittings
Eaton Specification Sheet - TMCX5161
Feature: Explosion-proof, armored barrier and non-armored barrier options. Business Impact: Ensures safe operation in hazardous locations and simplifies audits with clear barrier configurations. Application: Chemical processing plants and oil & gas facilities where automatic protection against ignition sources is mandatory. Feature: Aluminum construction. Business Impact: Delivers corrosion resistance with lighter weight, improving handling and installation speed in tight spaces. Application: Outdoor or damp environments where ease of maintenance matters. Feature: 1-1/2" NPT thread size. Business Impact: Standardized mounting allows quick integration into existing enclosures and conduits, reducing installation time. Application: Panels and junction boxes requiring a common conduit entry. Feature: Armored range 1.33–1.61" and outer sheath 1.38–1.78". Business Impact: Compatible with TECK armoured tray cables and varied armour configurations, minimizing part variety and stock Keeping. Application: Facilities with mixed armour profiles and cable types. Feature: Certifications and installation resources. Business Impact: Supports rapid compliance verification and clear installation guidance, lowering risk during inspections. Application: Projects following NEC/CEC and UL guidelines with formal documentation like IF 1184 and specification sheets.
Get a Quick Quote for a Eaton Crouse-Hinds TMCX5161
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds TMCX5161?
Enquire Now
FAQs
Yes. The gland supports TECK armoured and tray cables with armour within 1.33–1.61 in and outer sheath 1.38–1.78 in, featuring a 1-1/2" NPT thread for secure mounting and both armoured barrier and non-armoured barrier options.
TMCX5161 carry NEC/CEC standards with NEC hazardous ratings of Class I, Division 1, Class II, Division 1, and Class III, plus NEMA 4 protection and explosion-proof construction, backed by UL-related documentation.
The armoured barrier options ensure a sealed, secure connection, while the documented installation sheets and catalog pages streamline adherence to NEC/CEC and UL requirements, accelerating inspections and reducing non-conformance risk.
It combines explosion-proof protection with interchangeable armoured barrier configurations, aluminum construction for durability and weight savings, and explicit compatibility with TECK armoured/tray cables, all backed by formal certifications.
Ideal for chemical plants, oil & gas facilities, and mining operations in hazardous areas. Expected ROI arises from reduced maintenance, faster installation, and lower risk of ignition or compliance-related downtime due to robust sealing and certified performance.
