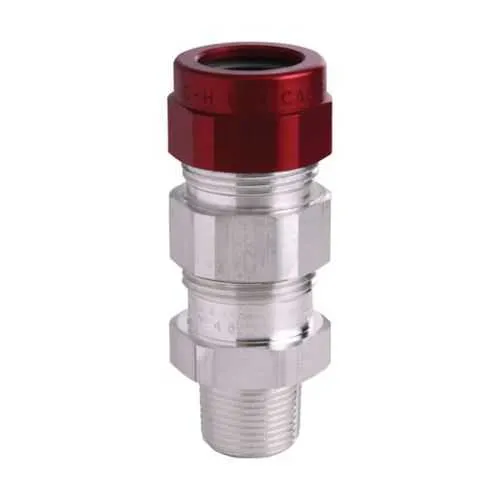

Eaton TMCX9352 Cable Gland - Explosion-Proof, Class I/II
Part Number: TMCX9352
Quick Summary
The TMCX9352 cable gland is an explosion-proof solution designed for secure sealing of TECK armoured and tray cables in hazardous locations. This addresses the frequent pain points of safety risk, ignition prevention, and compliance gaps that can hinder uptime and project timelines. It aligns with NEC/CEC standards and offers Class I, Division 1; Class II, Division 1; Class III ratings, along with a NEMA 4 enclosure, helping protect equipment and personnel in demanding environments. By combining rugged aluminum construction with an adaptable barrier design, it supports fast installation, reduces maintenance costs, and integrates with standard 3-1/2 in NPT fittings and armour ranges for streamlined procurement and serviceability.
Product Information
Extended Description
TMCX9352 Eaton Crouse-Hinds: Eaton Crouse-Hinds series TMCX cable gland,Metal-cladcorrugated,TECK armoured and tray cable,Armoured barrier and non-armoured barrier, Aluminum, Outer Sheath:3.02-3.78", 3-1/2" NPT,Armor Range:2.95-3.52"
Product Name
Eaton Crouse-Hinds series TMCX cable gland
Catalog Number
TMCX9352
UPC
782274414751
Product Length/Depth
9.38 in
Product Height
5.38 in
Product Width
5.38 in
Product Weight
10.2 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4
Protection type
Explosion-proof
Cable type
TECK armoured Tray cable Metal-clad with interlocked or continuously welded corrugated armoured
Gland type
Armoured Barrier and Non-armoured Barrier
Material
Aluminum
Thread Size
3-1/2"
Thread type
NPT
Armor (min/max)
2.95-3.52"
Outer sheath (min/max)
3.02-3.78"
Crouse-Hinds series TMCX catalog page
TMCX Explosionproof Armoured Barrier Gland UL certification
IF 1184 - TMCX Terminator Cable Fittings
Eaton Specification Sheet - TMCX9352
Feature is explosion-proof aluminum construction → Business Impact is enhanced safety and reduced ignition risk in hazardous zones → Application is in chemical plants, refineries, and other industrial facilities. Feature is TECK armoured/tray cable compatibility with outer sheath 3.02-3.78 inches and armor 2.95-3.52 inches → Business Impact is flexible cable accommodation, fewer compatibility issues, and faster project timelines → Application is retrofits and new builds across automation and mining sectors. Feature is Armoured Barrier and Non-armoured Barrier gland types → Business Impact is tailored sealing solutions that maintain barrier integrity under vibration and harsh conditions → Application is connection points for equipment in hazardous/classified locations. Feature is 3-1/2 inch NPT thread size → Business Impact is seamless integration with standard conduit fittings and reduced field modification → Application is field installations on machinery and enclosures. Feature is aluminum, with NEMA 4 rating and corrosion resistance → Business Impact is durable performance in moist, dusty, or outdoor environments → Application is outdoor substations, process plants, and DC/AC drives. Feature is NEC/CEC compliance and Class I, II, III ratings → Business Impact is procurement confidence and regulatory conformity → Application is safety-critical installations in chemical, oil & gas, and mining industries.
Get a Quick Quote for a Eaton Crouse-Hinds TMCX9352
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds TMCX9352?
Enquire Now
FAQs
Follow the IF 1184 installation guidelines, ensuring the gland matches the apparatus’s barrier type (armoured or non-armoured). Use appropriate seals and torque per Eaton’s instructions, verify the outer sheath and armor ranges (3.02-3.78 in and 2.95-3.52 in), and check for proper enclosure ratings (NEMA 4) after installation to maintain explosion protection.
The gland complies with NEC/CEC standards, provides Class I, Division 1, Class II, Division 1, and Class III hazardous ratings, and has a NEMA 4 enclosure rating, suitable for hazardous/classified locations and demanding industrial environments.
Yes. The gland is designed for TECK armoured tray cables, offering armoured barrier and non-armoured barrier options, with an aluminum body and compatible thread size for reliable sealing in hazardous locations.
The outer sheath fits 3.02-3.78 inches, and the armour range is 2.95-3.52 inches, enabling compatibility with a variety of tray cables and armoured constructions typical in industrial installations.
The explosion-proof aluminum gland with barrier options improves safety, regulatory compliance, and long-term maintenance costs. It reduces risk of ignition in hazardous zones, enhances installation speed with standard fittings, and supports durable performance in harsh environments, yielding lower total cost of ownership.
