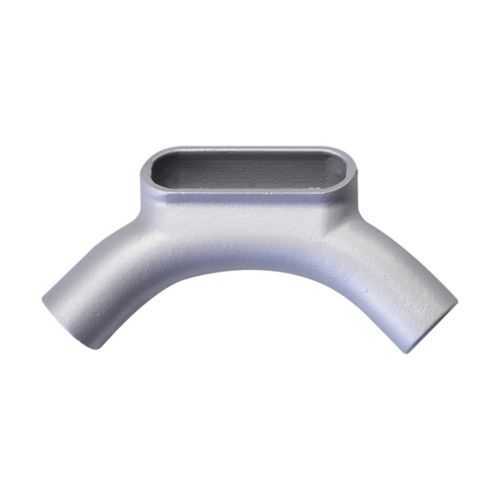

Eaton Crouse-Hinds U47 Condulet Form 7 conduit outlet body - NEMA 3/4/12

Part Number: U47
U47
Manufacturer
Eaton Crouse-Hinds
Part number
U47
Category

Quick Summary

The Eaton Crouse-Hinds U47 Condulet Form 7 conduit outlet body provides rugged, accessible junction points for 1-1/4" conduit in industrial control panels. This conduit outlet body addresses common wiring challenges such as tight spaces and frequent wire pulls by offering a reliable pull point with robust protection. It aligns with NEC/CEC standards and is rated for NEMA 3, 4 and 12 environments where applicable, making it suitable for a wide range of installations. Using this Form 7 conduit outlet body helps ensure safe, code-compliant wire routing while reducing maintenance and rework. The product integrates smoothly with standard conduit fittings, boosting installation efficiency and long-term uptime thanks to durable Feraloy iron alloy construction.

Product Information

Extended Description

U47 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, U shape, 1-1/4"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
U47
UPC
662276465817
Product Length/Depth
12 in
Product Height
5.94 in
Product Width
2.5 in
Product Weight
4.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3 4 12
Shape
U
Trade size
1-1/4"
Material
Feraloy iron alloy
Eaton Crouse-Hinds U47 3D drawing Crouse-Hinds series Form 7 catalog page Condulet Form 7 Conduit Outlet Bodies and Covers UL certification Condulet Form 7 Conduit Outlet Bodies and Covers UL certification IF 863 - Conduit Body Wire Pulling IF 863 - Conduit Body Wire Pulling Eaton Specification Sheet - U47 Eaton Specification Sheet - U47 Industrial Fittings Bend Radius and Cubic Capacity Chart Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: U-shaped Form 7 design for 1-1/4" trade size. Business Impact: Simplifies routing and wire access in confined enclosures, shortening installation time and reducing field wiring errors. Application: Ideal for control panels and machine housings where space is tight. Feature: Feraloy iron alloy construction. Business Impact: Improves durability and corrosion resistance in demanding environments, lowering maintenance costs over the life of the panel. Application: Heavy-use industrial applications with frequent wire pulls. Feature: Exact dimensions and weight (12 in length, 5.94 in height, 2.5 in width, 4.2 lb). Business Impact: Predictable fit and handling during assembly, enabling faster prototyping and fewer field modifications. Application: System upgrades and retrofits with standard conduit fittings. Feature: Compliance and ratings (NEMA 3, 4, 12; NEC/CEC; Ordinary/Non-Hazardous). Business Impact: Meets key safety and performance standards, supports regulatory approvals, and reduces project risk. Application: Indoor and protected locations across manufacturing floors. Feature: Documentation and compatibility. Business Impact: Access to UL certification reports, installation guides, and spec sheets accelerates validation and procurement. Application: Integration with existing inventories and compliance packages.

Get a Quick Quote for a Eaton Crouse-Hinds U47

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds U47? Enquire Now

FAQs

To install the U47, verify the conduit size is 1-1/4" and align the body with the enclosure opening. Mount using standard fittings, ensure the U-shaped body is oriented for optimal wire pull, and secure the assembly per NEC/CEC guidelines. Use appropriate gaskets or seals if the installation sits in a non-hazardous, ordinary location to maintain enclosure integrity.
Key specs include a 12 inch length, 5.94 inch height, 2.5 inch width, and a weight of 4.2 lb. Material is Feraloy iron alloy, trade size 1-1/4 inches, shape is U, and it carries NEC/CEC compliance with NEMA ratings 3, 4, 12.
Yes. The U47 is rated for Ordinary/Non-Hazardous Locations per its area classification and is designed to meet NEC/CEC standards for standard indoor or protected environments, making it a reliable choice for general industrial wiring without hazardous conditions.
Documentation includes UL certification references for Condulet Form 7 conduit outlet bodies and covers, Eaton spec sheets, and installation guides. These resources support compliance validation and ease supplier qualification during procurement and project review.
Form 7 conduit bodies, including the U47, provide robust, durable pull points that minimize field adjustments and reduce rework. The Feraloy iron alloy construction enhances longevity under typical industrial conditions, supporting longer service life and lower lifecycle costs when paired with standard conduit fittings.
