Eaton Crouse-Hinds U57 Condulet Form 7 - NEMA 3/4/12
Part Number: U57
Quick Summary
The Eaton Crouse-Hinds U57 Condulet Form 7 conduit outlet body provides rugged, reliable terminations for 1-1/2 in conduit runs. Engineers and maintenance teams often struggle with durable, code-compliant fittings that fit in tight spaces and demanding environments. This Form 7 unit carries UL-listed certification and NEC/CEC compliance, with NEMA ratings of 3, 4 and 12 for ordinary locations. Pairing feraloy iron alloy construction with Form 7 compatibility supports faster panel wiring and longer service life in industrial facilities. This model is ideal for control panels, motor control centers, and field installations requiring reliable Form 7 conduit bodies.
Product Information
Extended Description

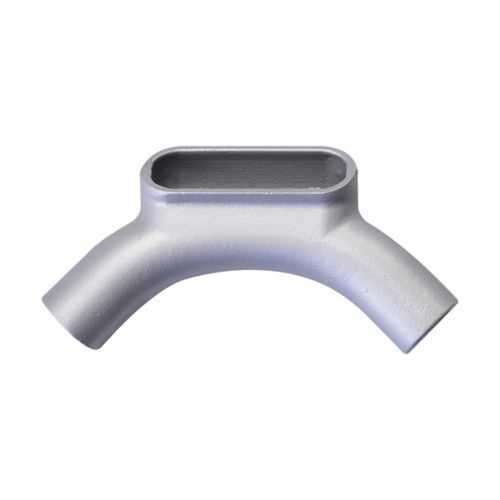

U57 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, U shape, 1-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
U57
UPC
662276465824
Product Length/Depth
15.13 in
Product Height
7.19 in
Product Width
2.88 in
Product Weight
6.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3 4 12
Shape
U
Trade size
1-1/2"
Material
Feraloy iron alloy
Eaton Crouse-Hinds U57 3D drawing
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - U57
Eaton Specification Sheet - U57
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature → Business Impact → Application: The Form 7 U57 uses a U-shaped conduit body in a 1-1/2 inch trade size, made from feraloy iron alloy, delivering superior mechanical protection and long service life. This translates to reduced maintenance cycles, fewer field repairs, and lower lifecycle costs in harsh industrial environments. Application: suitable for control panels and industrial enclosures where durable terminations are essential. Feature → Business Impact → Application: With a 15.13 inch length, 7.19 inch height, 2.88 inch width, and a 6.2 lb weight, installation planning becomes predictable, allowing faster fitment and less on-site rework. Application: ideal for tight panel spaces and complex conduit runs. Feature → Business Impact → Application: NEC/CEC compliance and UL certification provide regulatory confidence, simplifying audits and procurement. Application: preferred for facilities requiring formal approvals and standardized fittings. Feature → Business Impact → Application: Ordinary/Non-Hazardous Location area classification aligns with many factory floors, reducing unnecessary safety overhead. Application: general-purpose industrial wiring. Feature → Business Impact → Application: Form 7 compatibility ensures seamless integration with redundant covers and accessories, improving field serviceability. Application: modular, scalable conduit systems.
