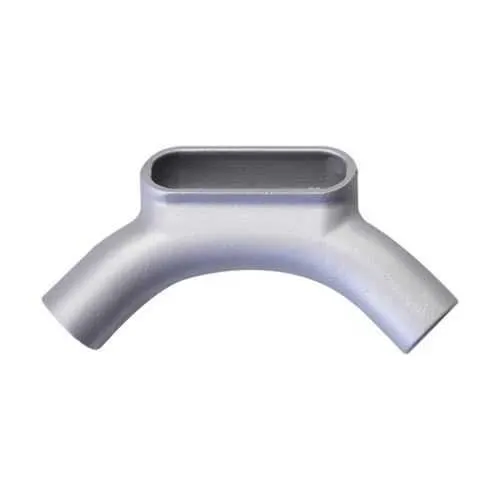

Eaton U67 Condulet Form 7 Conduit Outlet Body - NEMA 3 4 12
Part Number: U67
Quick Summary
The Eaton U67 Condulet Form 7 Conduit Outlet Body is engineered for reliable, rugged conduit terminations in industrial wiring and control panels. In demanding environments, installers often face space constraints, difficult wire pulls, and the need for durable, code-compliant fittings. This Form 7 body addresses those issues with a compact U-shape, sturdy Feraloy iron alloy construction, and a proven seal design that supports 2 inch trade size configurations. It carries NEC/CEC compliance and NEMA ratings for ordinary/non-hazardous locations, along with Canadian certifications in UL listings. By combining robust material with easy installation guides and a broad catalog of Form 7 accessories, it delivers predictable performance, reduces field rework, and enhances panel reliability.
Product Information
Extended Description
U67 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, U shape, 2"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
U67
UPC
662276465831
Product Length/Depth
17.31 in
Product Height
8.63 in
Product Width
3.63 in
Product Weight
8.85 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3 4 12
Shape
U
Trade size
2"
Material
Feraloy iron alloy
Eaton Crouse-Hinds U67 3D drawing
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Feraloy iron alloy construction provides high-strength, corrosion resistance for harsh industrial environments. Business Impact: Extends service life and reduces maintenance costs in control panels and outdoor enclosures. Application: Ideal for rugged conduit outlet bodies used in Form 7 configurations. Feature: U-shaped Form 7 design enables smoother wire pulling and routing. Business Impact: Shortens installation time and minimizes abrasion risk in tight spaces. Application: Suitable for 2 inch trade size conduit runs in machine and process equipment. Feature: 2 inch trade size compatibility supports common industrial wiring layouts. Business Impact: Improves design flexibility and reduces need for adapters or rework. Application: Applicable to standard 2 inch conduits in form 7 installations. Feature: NEMA ratings 3, 4, 12 with NEC/CEC compliance provide broad regulatory assurance. Business Impact: Ensures safe operation across ordinary locations and cross-border projects. Application: Fits general purpose electrical installations inside panels and equipment enclosures. Feature: Dimensional and weight data (length, height, width, weight) aids space planning. Business Impact: Enables accurate enclosure sizing and panel layout, reducing surprises during installation. Application: Useful for procurement and CAD planning in industrial projects. Feature: Availability of installation sheets and spec guides supports compliant assembly. Business Impact: Lowers risk of improper assembly and accelerates commissioning. Application: Refer to Eaton catalog pages and installation documents for Form 7.
Get a Quick Quote for a Eaton Crouse-Hinds U67
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds U67?
Enquire Now
FAQs
The U67 is a Form 7 conduit outlet body designed for rugged, 2 inch trade size conduit terminations in industrial control panels and equipment enclosures, providing a reliable route for wiring in ordinary locations.
Yes. The U67 uses the Form 7 design and is specified for a 2 inch trade size, leveraging common conduit accessories and standard installation practices for quick, secure assemblies.
It carries NEC/CEC compatibility, NEMA ratings 3, 4, and 12, and is certified for Ordinary/Non-Hazardous Locations; UL-related Canadian certifications are documented in the provided literature.
The U-shaped Form 7 design provides a smoother interior routing path, reducing wire abrasion and making pulls faster, while its compact dimensions and weight support efficient enclosure layout and maintenance.
Documentation is available through Eaton's downloads: 3D CAD drawings, Form 7 catalog pages, Canadian certification reports, installation instruction sheets, and the Form 7 specification guide.
