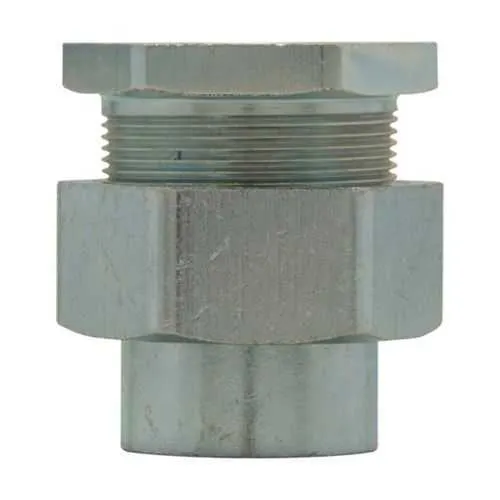

Eaton Crouse-Hinds UNF1005 UNF Union - Group B rated
Part Number: UNF1005
Quick Summary
UNF1005 is a rugged explosionproof conduit union designed for reliable connections in hazardous locations. Installing fittings in Class I/II environments often suffers from certification delays, corrosion concerns, and fitment mismatches. It carries NEC/CEC standards with NEC hazardous ratings for Class I Division 1 and 2, Class II Division 1 and 2, and Class III, ensuring compliance across diverse process areas. For procurement teams, UNF1005 offers Group B rated performance and a durable Feraloy iron alloy body, delivering safer, faster installations and predictable maintenance of explosionproof conduit unions in industrial electrical systems. This translates to lower lifecycle costs and simpler supplier qualification for projects in oil, gas, chemical, and mining sectors. By specifying a single, clearly rated connector, engineers can reduce field rework and inspection findings.
Product Information
Extended Description
UNF1005 Eaton Crouse-Hinds: Eaton Crouse-Hinds series UNF union, Rigid/IMC, Female, Feraloy iron alloy, Group B rated, 4"
Product Name
Eaton Crouse-Hinds series UNF union
Catalog Number
UNF1005
UPC
782274644806
Product Length/Depth
4.13 in
Product Height
6.19 in
Product Width
6.19 in
Product Weight
11.65 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
Rigid/IMC
Gender
Female
Material
Feraloy iron alloy
Trade size
4"
Special features
Group B rated
Crouse-Hinds series Explosionproof Conduit Unions, Elbows and Tees catalog page
Explosionproof Conduit Unions, Elbows and Tees UL certification
Explosionproof Conduit Unions, Elbows and Tees UL certification
Eaton Specification Sheet - UNF1005
Feature → Business Impact → Application: The UNF1005 uses a durable Feraloy iron alloy body with a Group B rating, delivering exceptional mechanical strength and corrosion resistance in hazardous environments. This reduces maintenance cycles and replacement costs while enabling reliable service in chemical plants and offshore facilities where ignition protection is critical. Feature → Business Impact → Application: At 4 inch trade size with a female connection, the unit enables standardized, fast installations along rigid/IMC conduit runs, minimizing field adjustments and scheduling delays on refinery projects and mining sites. Feature → Business Impact → Application: NEC/CEC compliance and explicit NEC hazardous ratings (Class I Div 1/2, Class II Div 1/2, Class III) simplify regulatory approvals and inspections, cutting audit time and project risk across multi-site deployments. Feature → Business Impact → Application: Area classification for Hazardous/Classified Locations provides clear suitability guidance, supporting safe configurations in oil and gas infrastructure and chemical processing plants. Feature → Business Impact → Application: Comprehensive documentation and compatibility notes from Eaton (catalog pages, UL/CSA certifications, spec sheets) accelerate procurement, improve traceability, and reduce vendor qualification time for large capital projects.
Get a Quick Quote for a Eaton Crouse-Hinds UNF1005
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds UNF1005?
Enquire Now
FAQs
UNF1005 is designed forRigid/IMC conduit with a 4 inch trade size and a female connection, simplifying end-to-end assemblies in hazardous locations and ensuring a consistent fit with standard conduit runs.
Group B rating indicates suitability for ignition protection in certain flammable atmospheres, providing enhanced safety in chemical plants, refineries, and mining operations while meeting NEC/CEC requirements.
Yes. UNF1005 carries NEC hazardous ratings that cover Class I Division 1 and Division 2 conditions, along with Class II and Class III ratings, making it suitable for oil, gas, and other high-risk process areas.
UNF1005 aligns with NEC/CEC standards and includes NEC hazardous location ratings, with UL and CSA certification references available in the provided certificates and Eaton specification sheet.
Benefits include reduced field rework, faster installation, lower maintenance costs due to durable Feraloy iron alloy construction, and streamlined procurement through certified documentation and readily available technical data.
