Eaton Crouse-Hinds UNF505 Union - Hazardous Locations
Part Number: UNF505
Quick Summary
The UNF505 union from Eaton Crouse-Hinds securely joins rigid or IMC conduits in hazardous locations. In real-world projects, downtime from incompatible fittings or seized joints can escalate costs and risk safety. This unit carries NEC/CEC compliance and is rated for Class I, Division 1 and Division 2 as well as Class II and Class III environments, giving you regulatory certainty and installation confidence. For engineers and procurement teams, the steel construction, 1-1/2" trade size, and proven seal performance translate to reduced maintenance and faster commissioning in tough industrial settings. The UNF505 also integrates smoothly with other Crouse-Hinds explosionproof conduit components, delivering a complete, reliable conduit network.
Product Information
Extended Description

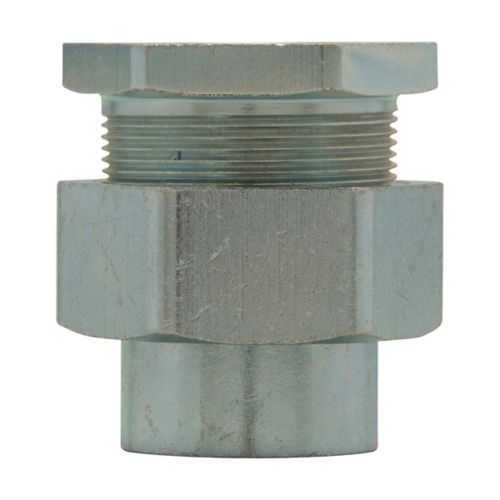

UNF505 Eaton Crouse-Hinds: Eaton Crouse-Hinds series UNF union, Rigid/IMC, Female, Steel, 1-1/2"
Product Name
Eaton Crouse-Hinds series UNF union
Catalog Number
UNF505
UPC
782274644301
Product Length/Depth
2.75 in
Product Height
3.06 in
Product Width
3.06 in
Product Weight
1.7 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
Rigid/IMC
Gender
Female
Material
Steel
Trade size
1-1/2"
Crouse-Hinds series Explosionproof Conduit Unions, Elbows and Tees catalog page
Explosionproof Conduit Unions, Elbows and Tees Canadian certification
Explosionproof Conduit Unions, Elbows and Tees Canadian certification
Eaton Specification Sheet - UNF505
Heavy-duty steel construction delivers rugged durability that resists corrosion and mechanical wear, reducing maintenance cycles in harsh environments and supporting long service life in explosionproof conduit networks. This translates to lower lifecycle costs and fewer field failures during critical plant downtimes, especially in chemical plants and oil refineries where reliability is non-negotiable. The female UNF505 union supports a 1-1/2" trade size, ensuring precise alignment with mating fittings and a robust seal under vibration, which minimizes leakage paths and rework on long rigid/IMC runs. For project teams, this means faster installation and predictable performance in hazardous locations, backed by a proven family of Crouse-Hinds components that simplifies stocking and replacement. NEC/CEC compliance further reinforces regulatory readiness, enabling smoother inspections and insurance approvals. Area classification as Hazardous/Classified Locations guides safe deployment, reducing the risk of non-compliant installations and costly redesigns. Availability of official specification sheets and catalogs accelerates design reviews and procurement, while compatibility with elbows, tees, and other unions supports scalable system design across the UNF/UNL/UNY family.
