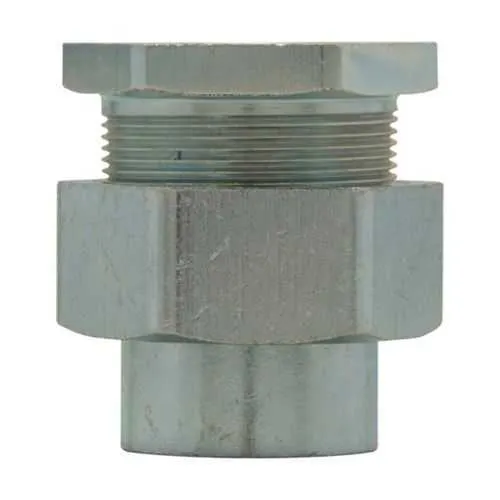

Eaton Crouse-Hinds UNF605 union - Hazardous Locations
Part Number: UNF605
Quick Summary
UNF605 union is a rugged rigid/IMC conduit fitting designed for hazardous locations in industrial automation and process environments. Engineers often struggle with reliable sealing and certified protection in explosive atmospheres, especially under vibration and harsh operating conditions. It meets NEC/CEC standards and offers NEC hazardous ratings including Class I, Division 1 and 2, plus Class II and III classifications, supporting site compliance. Its 2" trade size, Feraloy iron alloy construction, and female configuration deliver fast, secure terminations while reducing spare parts and maintenance overhead. Designed to integrate with the UNF family, it enables streamlined procurement and consistent safety performance across projects.
Product Information
Extended Description
UNF605 Eaton Crouse-Hinds: Eaton Crouse-Hinds series UNF union, Rigid/IMC, Female, Feraloy iron alloy, 2"
Product Name
Eaton Crouse-Hinds series UNF union
Catalog Number
UNF605
UPC
782274644400
Product Length/Depth
2.69 in
Product Height
3.88 in
Product Width
3.88 in
Product Weight
3.38 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
Rigid/IMC
Gender
Female
Material
Feraloy iron alloy
Trade size
2"
Crouse-Hinds series Explosionproof Conduit Unions, Elbows and Tees catalog page
Explosionproof Conduit Unions, Elbows and Tees UL certification
Explosionproof Conduit Unions, Elbows and Tees UL certification
Eaton Specification Sheet - UNF605
Feraloy iron alloy construction provides exceptional strength and corrosion resistance, reducing replacement cycles and maintenance costs in harsh industrial environments. This rugged alloy is well-suited for explosion-proof unions in chemical plants, mining operations, and offshore facilities. The metallurgy also resists high-temperature exposure and delivers predictable long-term performance under vibration and impact common in process plants. For procurement, the material choice helps reduce spare-part diversity while maintaining compliance with rigorous safety standards. Rigid/IMC compatibility with standard conduit runs simplifies installation and minimizes unexpected leakage paths. The UNF605’s female configuration and 2" trade size streamline field assembly by reducing the need for adapters and extra hardware. The 3.88 in width and height create a compact footprint that fits in tight enclosures, while the 2.69 in depth allows room for connectors and fasteners. The union is designed for ease of mounting with standard fittings, helping technicians complete terminations quickly and consistently. NEC/CEC compliance plus broad hazardous location ratings help you meet regulatory requirements and site standards with confidence. Area classification as Hazardous/Classified Locations and recognized UL/CSA listings reduce audit findings and project risk. Precise dimensions support repeatable field planning: 2.69 in depth, 3.88 in height and width, and a 3.38 lb weight give predictable enclosure integration. The compact, rugged form minimizes downtime during maintenance and simplifies spare-part logistics. Industry insight: selecting a properly rated union like UNF605 lowers total installed cost by consolidating parts, reducing commissioning time, and improving safety in hazardous-area installations.
Get a Quick Quote for a Eaton Crouse-Hinds UNF605
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds UNF605?
Enquire Now
FAQs
UNF605 supports 2" trade-size conduits with a female connection, designed for Rigid/IMC installations. It mates with standard 2" IMC fittings and conduit runs, making it suitable for new builds and retrofits. The unit’s dimensions — 2.69 in depth and 3.88 in height/width — help ensure a predictable, straightforward installation in crowded enclosures.
UNF605 carries NEC/CEC compliance and broad hazardous location ratings, including Class I Division 1 and Division 2, Class II Division 1 and Division 2, and Class III. It is intended for Hazardous/Classified Locations, with UL/CSA-type listings supporting reliable performance and regulatory alignment across industrial sites.
UNF605 is ideal for chemical processing, oil and gas, mining, and other heavy industries where explosion-proof protection is essential. Its 2" trade size, rigid/IMC construction, and Feraloy iron alloy make it suitable for harsh environments with vibration, heat, or corrosive exposure, ensuring safe conduit connections in critical process lines.
The unit aligns with NEC/CEC standards and hazardous location classifications, including Class I, II, and III ratings. UL/CSA listings and area classification support regulatory audits, enabling safer deployments, improved site compliance, and fewer rework events during inspections.
The Feraloy iron alloy and robust housing reduce corrosion, wear, and maintenance frequency, lowering lifecycle costs. A single, correctly rated union simplifies spares inventory, accelerates commissioning, and minimizes downtime in hazardous-area installations, delivering tangible return on investment over the project lifecycle.
