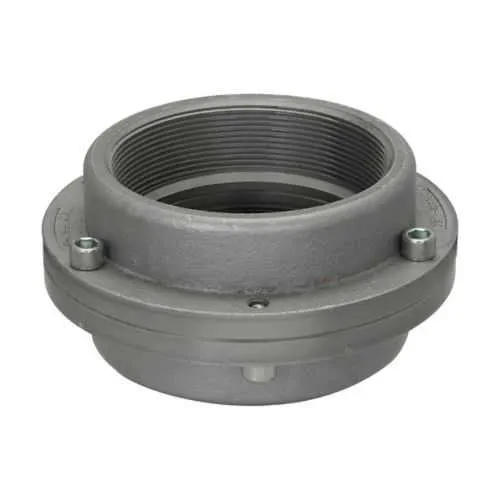

Eaton Crouse-Hinds UNY014 Union - Hazardous Locations
Part Number: UNY014
Quick Summary
UNY014 union is a rugged conduit fitting designed for rigid/IMC systems in hazardous locations. End users often struggle with corrosion resistance, misfit seals, and difficult installation in harsh environments. It meets NEC/CEC standards and is rated for Hazardous/Classified Locations, including Class I Division 1 & 2, Class II Division 1 & 2, and Class III. This combination reduces maintenance cycles, improves safety, and simplifies spares management. Designed to withstand challenging industrial settings, it is ideal for chemical plants, refineries, and mining operations. By pairing with the UNY family, it delivers reliable performance, faster installations, and long-term cost savings for electrical teams and project owners.
Product Information
Extended Description
UNY014 Eaton Crouse-Hinds: Eaton Crouse-Hinds series UNY union, Rigid/IMC, Male, Feraloy iron alloy, 6"
Product Name
Eaton Crouse-Hinds series UNY union
Catalog Number
UNY014
UPC
782274647708
Product Length/Depth
6.13 in
Product Height
9.31 in
Product Width
9.31 in
Product Weight
21.45 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
Rigid/IMC
Gender
Male
Material
Feraloy iron alloy
Trade size
6"
Crouse-Hinds series Explosionproof Conduit Unions, Elbows and Tees catalog page
Explosionproof Conduit Unions, Elbows and Tees Canadian certification
Explosionproof Conduit Unions, Elbows and Tees Canadian certification
Eaton Specification Sheet - UNY014
Feraloy iron alloy construction gives a rugged, corrosion-resistant body able to perform in harsh hazardous locations. This material choice reduces replacement costs and field failures, especially in damp or chemically aggressive atmospheres. The UNY014 union provides a secure, durable mating interface for rigid/IMC conduit under temperature extremes and vibration, with reliable threading that minimizes reseating. The result is longer service life and lower maintenance for critical electrical infrastructure. Trade size and geometry are optimized for quick, repeatable installations. With a 6 in trade size and a 6.13 in length, plus a 9.31 in square footprint and a 21.45 lb weight, installers can plan supports and routes with confidence. The male configuration ensures consistent mating with compatible UNY components, reducing misalignment and rework in the field. This supports faster commissioning of new lines and easier expansion. Certification and compliance are central to safe selection. UNY014 meets NEC/CEC and is rated for Hazardous/Classified Locations including Class I Division 1 and 2, Class II Division 1 and 2, and Class III. Canadian certification listings and UL/CSA documentation support cross-border projects, while the documented ratings ease inspections and commissioning in regulated plants. The robust design also aligns with industry safety programs and internal maintenance protocols. Interoperability with the UNY family simplifies procurement and spare-parts planning. This union pairs with other Crouse-Hinds UNY fittings for consistent performance, while standardized threading reduces field adjustments and training needs. From an operations perspective, UNY014 helps reduce downtime and maintenance costs. Durable materials, certified ratings, and standardized dimensions translate into lower total cost of ownership for facilities with high throughput and strict safety requirements.
Get a Quick Quote for a Eaton Crouse-Hinds UNY014
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds UNY014?
Enquire Now
FAQs
UNY014 requires proper enclosure rating verification, correct rigid/IMC conduit alignment, and adherence to NEC/CEC classifications. Ensure mating surfaces are clean, threads are undamaged, and gaskets/seals are compatible with hazardous-area fittings. Follow Eaton’s installation guidelines and torque specifications to avoid leaks, misalignment, or thermal stress during startup and maintenance.
Model UNY014; conduit type: rigid/IMC; gender: male; material: Feraloy iron alloy; trade size: 6 inches. Product dimensions: length 6.13 in; height 9.31 in; width 9.31 in; weight 21.45 lb. UPC: 782274647708. These specs support predictable mating, robust enclosure protection, and reliable performance in hazardous locations.
Yes. UNY014 is designed to interface with the broader UNY family of Crouse-Hinds components, including elbows and tees, using consistent thread standards. This compatibility reduces stocking complexity, ensures uniform performance across assemblies, and simplifies design validation for hazardous-location installations while preserving safety margins and code compliance.
UNY014 carries NEC/CEC standards alignment and hazardous-location ratings, including Class I Division 1 and 2, Class II Division 1 and 2, and Class III. Canadian certification listings and UL/CSA documentation further support cross-border projects, aiding inspections, commissioning, and adherence to safety programs in regulated facilities.
UNY014 offers reduced downtime and maintenance costs through durable materials, clear specifications, and verified certifications. Standardized dimensions simplify procurement and on-site assembly, delivering lower total cost of ownership for high-throughput facilities while improving installation speed, field reliability, and long-term safety compliance across multi-site deployments.
