Eaton Crouse-Hinds UNY505 Union - Hazardous Locations
Part Number: UNY505
Quick Summary
UNY505 union from Eaton Crouse-Hinds provides a rugged, reliable conduit connection for rigid/IMC systems used in hazardous locations. Engineers often wrestle with safe, code-compliant joints that resist vibration, temperature swings, and chemical exposure in Class I/Division 1 environments. This union carries NEC/CEC certifications and hazardous-location ratings, including Class I Division 1 (and related Class II/III ratings), helping you meet stringent compliance requirements. Built for durable field service, it streamlines installation and reduces maintenance overhead, delivering lifecycle savings for OEMs and maintenance teams pursuing lower total cost of ownership in tough environments.
Product Information
Extended Description

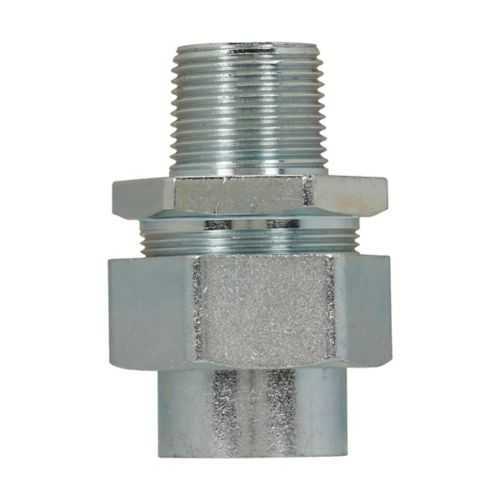

UNY505 Eaton Crouse-Hinds: Eaton Crouse-Hinds series UNY union, Rigid/IMC, Male, Steel, 1-1/2"
Product Name
Eaton Crouse-Hinds series UNY union
Catalog Number
UNY505
UPC
782274648309
Product Length/Depth
4.22 in
Product Height
3.06 in
Product Width
3.06 in
Product Weight
2.65 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
Rigid/IMC
Gender
Male
Material
Steel
Trade size
1-1/2"
Crouse-Hinds series Explosionproof Conduit Unions, Elbows and Tees catalog page
Explosionproof Conduit Unions, Elbows and Tees Canadian certification
Explosionproof Conduit Unions, Elbows and Tees Canadian certification
Eaton Specification Sheet - UNY505
Feature: Conduit compatibility with rigid/IMC and male union construction. Benefit: Ensures a secure, leak-free connection that withstands vibration and harsh temperatures in hazardous locations. Application: Ideal for explosion-proof conduit installations in oil, gas, and chemical facilities. Feature: Steel construction. Benefit: Delivers superior impact resistance and long-term corrosion protection in hostile environments. Application: Oil refineries and mining sites where robustness and safety are critical. Feature: Trade size 1-1/2". Benefit: Fits standard 1-1/2 inch conduit runs, reducing need for custom fabrication and accelerating installation. Application: Industrial wiring in new builds or retrofits. Feature: NEC/CEC compliance with hazardous-location ratings (Class I Div 1, Class II Div 1/2, Class III). Benefit: Simplifies regulatory approvals and reduces engineering change orders. Application: Compliance-driven projects across North America. Feature: Product data and UPC compatibility (Catalog UNY505, UPC 782274648309). Benefit: Improves procurement accuracy and inventory control. Application: Enterprise procurement and maintenance planning. Feature: Weight and dimensions (4.22 in length, 3.06 in width/height, 2.65 lb). Benefit: Predictable packaging, shipping, and field handling for installers. Application: Warehouse receiving and field deployment across hazardous sites.
